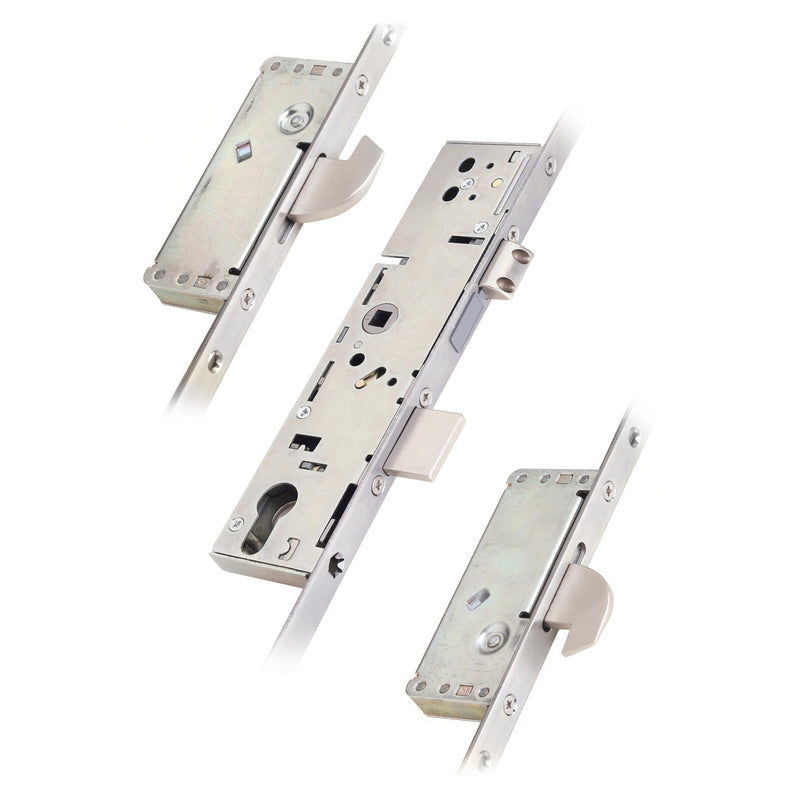

ERA Multipoint Door Lock – Split Spindle with 2 Small Hooks & Latch Deadbolt (730mm Top Hook to Spindle) – Option 2

Upgrade your door security with this high-quality ERA multipoint door lock featuring 2 bi-directional hooks, a durable deadbolt, and a secure latch. Designed with a split spindle operation, this lock is ideal for uPVC, aluminium, timber, and composite doors. Option 2 has a 730mm top hook to spindle measurement, providing a perfect fit for a wide range of replacement needs.

Key Features:

• Locking Points: 2 bi-directional hooks (top hook throws upward, bottom hook throws downward), 1 deadbolt, and 1 latch
• Operation: Split spindle mechanism for internal and external handle separation
• Backset Options: 30mm, 35mm, or 45mm
• PZ Centres: 92mm
• Spindle Size: 8mm
• Non-handed: Suitable for both left- and right-handed doors
• Hook to Spindle Distances: 730mm (top), 750mm (bottom)
• Gearbox Size: 221mm in length
• Corrosion Resistance: BS EN 1670:2007 Grade 4 (240-hour salt spray tested)
• Durability: Tested to 50,000 operational cycles
• Security Standard: Designed to comply with PAS24:2012 standards

Compatible Door Materials:

• uPVC Doors
• Aluminium Doors
• Timber Doors
• Composite Doors

ERA Brand & Identification:

ERA is a trusted UK manufacturer supplying locks to various well-known door brands. Rebranded variants may include Surelock, Saracen, Spartan, Duraflex, Supa, Westward, and Cego. Identifying features include the holdback snib on the faceplate—commonly grey for hook/deadbolt models, blue for Vectis, or occasionally black/green in rebranded versions.

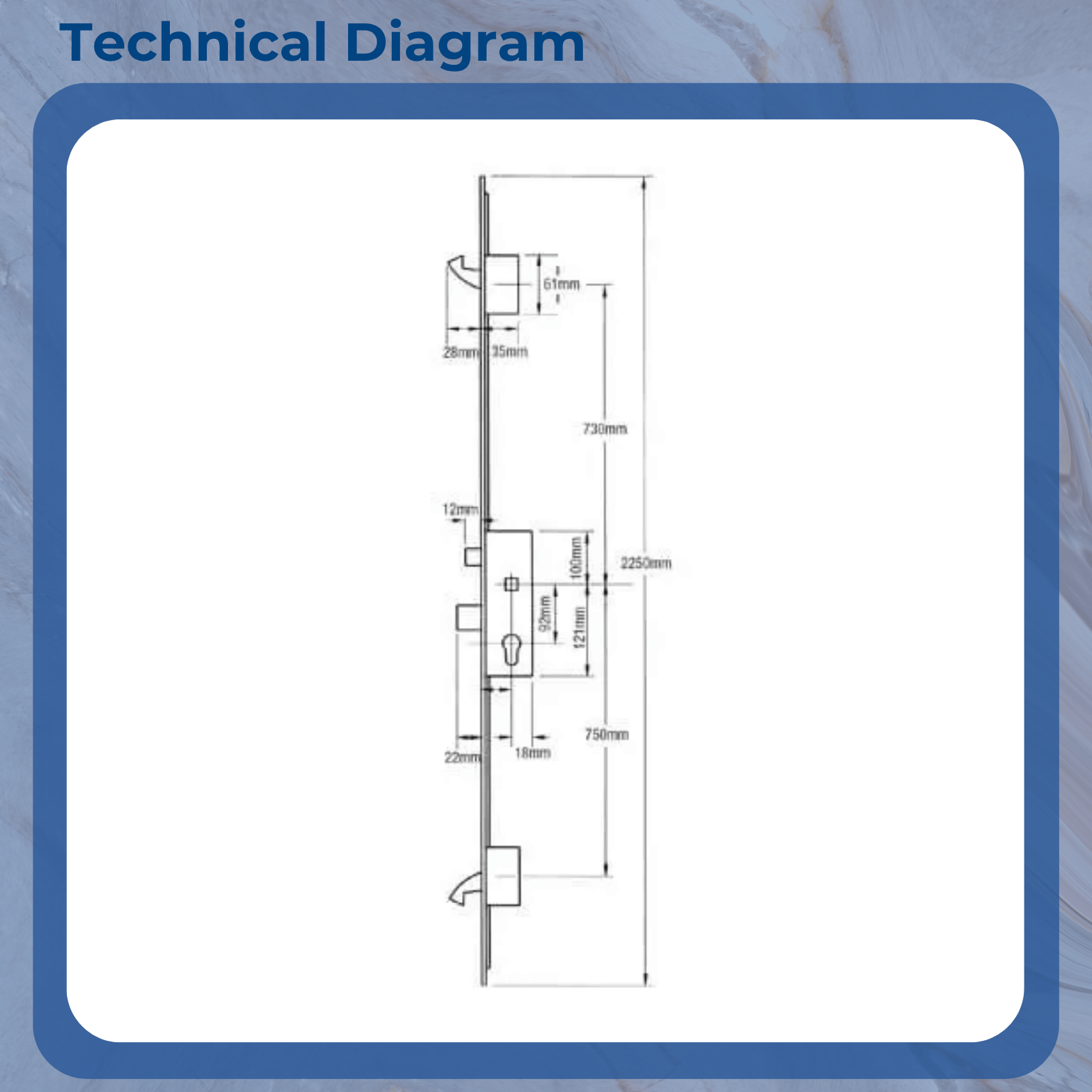

Gearbox Specifications:

• Latch Height: 24mm with 2 fixing screws
• Deadbolt Height: 30mm
• Latch-to-Deadbolt Distance: 61mm
• Fixing Screws Sequence: 37mm / 85mm / 43mm
• Backset Measurement: Add 2–3mm for the faceplate when measuring

All ERA gearboxes (excluding Fortress and SureFire models) are interchangeable—offering flexibility between deadbolt, hook, and Vectis versions.

Hook Options:

• Small Hook Case: Ideal for tight routing and narrow door frames
• Security Steel Hook Case: Larger, more robust design for enhanced strength

Locking & Unlocking Instructions:

To Lock:

1. Lift the handle to engage locking points
2. Turn the key to throw the deadbolt

To Unlock:

1. Turn the key to release the deadbolt
2. Push the handle down to retract the latch

Common Applications:

• Replacement for ERA uPVC multipoint door locks
• Compatible with aluminium, timber, and composite door setups
• Suitable for residential and light commercial properties

Accessories Available:

We stock a wide selection of ERA-compatible accessories including:

• Lock keeps and striker plates
• Handles and spindles
• Gearboxes and lock extensions

Specifications:

• Manufacturer: ERA
• Spindle Type: Split spindle (8mm)
• Handing: Non-handed
• Lock Height: 2250mm
• Inner Locking Distance: 1480mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 750mm

Need help identifying your ERA multipoint lock? Look for the distinctive gearbox design, faceplate snib colour, and rebranding marks—or remove the lock for accurate measurement and identification. Contact our support team for expert guidance.
