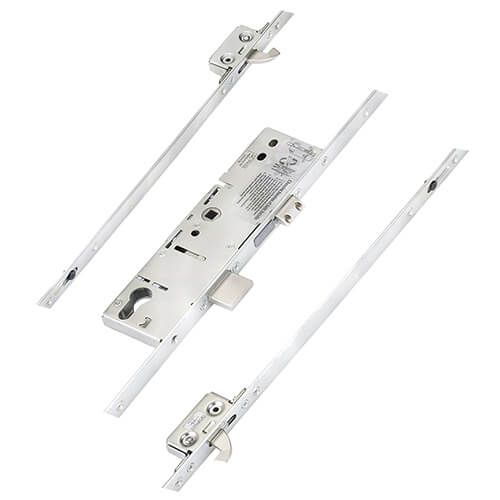

ERA Latch Deadbolt 2 Small Hooks Split Spindle 45mm Backset

ERA locks may also be stamped Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward or Cego.

Originally designed to replace GU, Lockmaster and Winkhaus locks without the need for new routing positions.

Backset: 45mm.

Centres: 92mm.

Operation: Lift lever or split spindle nightlatch.

Latch reversal: Undo the screws in the latch to remove. Reverse, reinsert and replace screws

Nightlatch Reversal: Remove latch to reveal a small screw. Use a small bladed screwdriver to turn the screw 180 degrees then return latch to correct position.

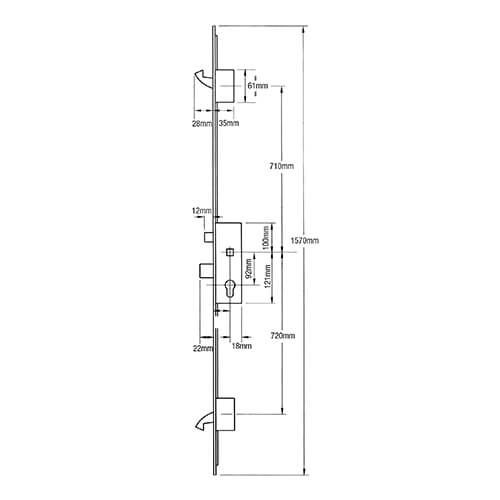

       Technical information-

• Centres: 92mm
• Backset: 45mm
• Overall Length: 2100mm (534580L) / 1570mm (534581L)
• Distance between hooks: 1380mm
