Elite Latch Deadbolt 4 Rollers Lift Lever 35mm Backset 92pz

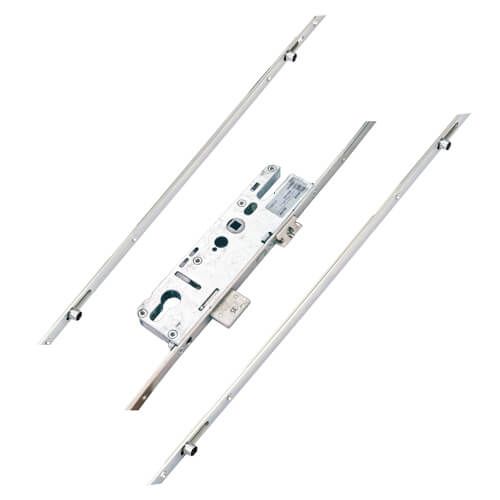

This Elite multipoint lock features a single spindle Roto gearbox.

Backset: 35mm

Centres: 92mm

Operation: Lift lever.

Latch reversal: Undo the screw in the side of the lock case adjacent to the latch. Remove the latch, reverse, reinsert and repace the screw.

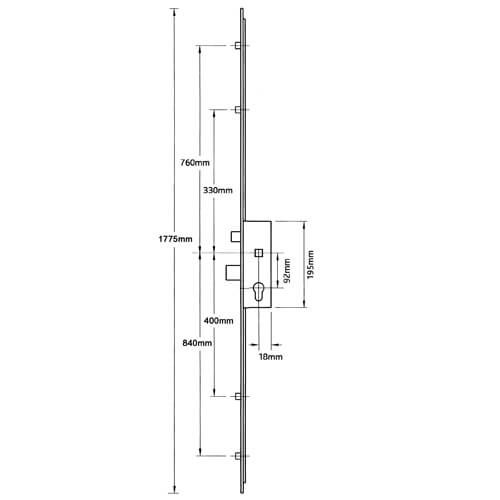

Technical Information-

• Centres: 92mm
• Case height: 200mm
• Case depth: Backset + 18mm
• Overall length: 1810mm
• Distance between outer rollers: 1730mm
• Distance between inner rollers: 750mm
• Shootbolts not compatible
