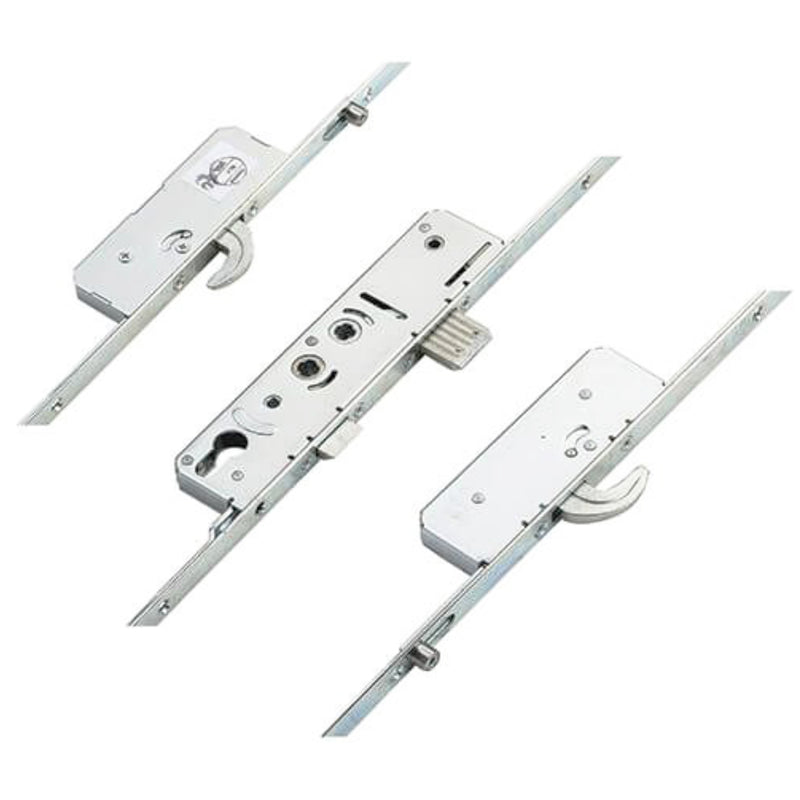

Avantis Latch Deadbolt 2 Hooks 2 Rollers Double Spindle
The Avantis 650 Series Residential lock is easily recognised by it's unique latch and deadbolt configuration.
Avantis locks have the largest hooks on the market at 25mm.
This is the standard version but a narrow locking position version is also available.
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.

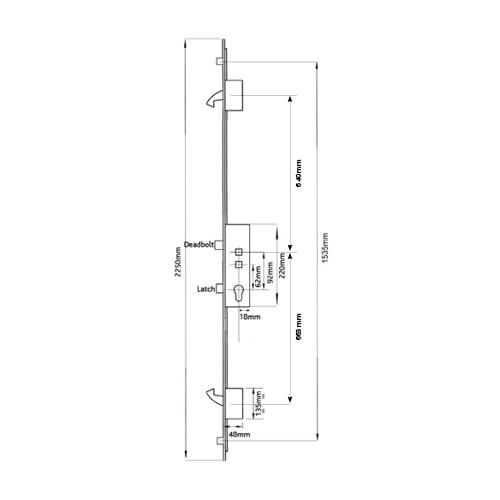

- Technical Details
- Centres: 92mm/62mm
- Case height: 220mm
- Case depth: Backset + 18mm
- Overall length: 2250mm
- Distance between rollers: 1535mm
- Distance between hooks: 1325mm
- Top hook throws downwards, bottom hook throws upwards
- Tested to PAS24 & Secured by Design accredited
- Corrosion resistance: BS EN 1670 Grade 4
