Egress Friction Stay Window Hinges 12" & 16" – Universal uPVC Hinges – 13mm & 17mm Stack Heights – Hinge Kit

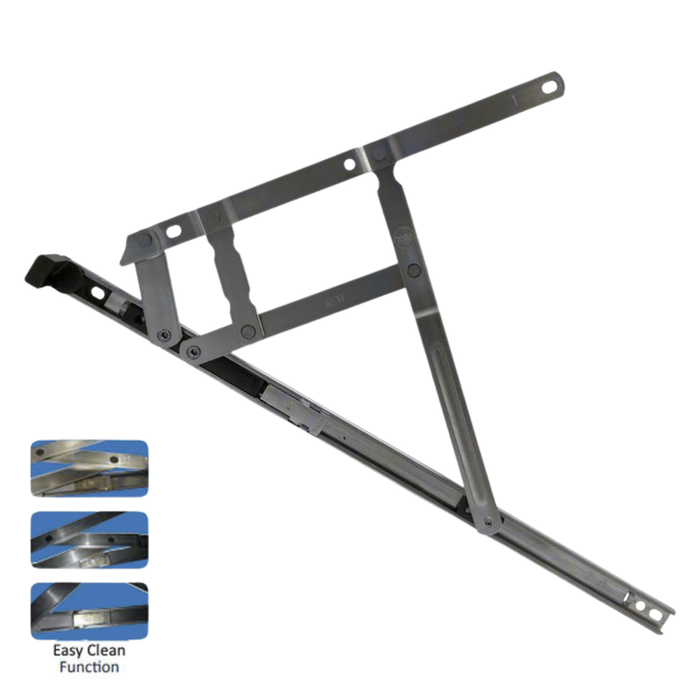

This window hinge is part of a versatile range that includes standard and egress options, including this egress easy-clean hinge. Egress easy-clean hinges are designed to make cleaning windows from inside the property easier, using a simple button release and sliding mechanism.

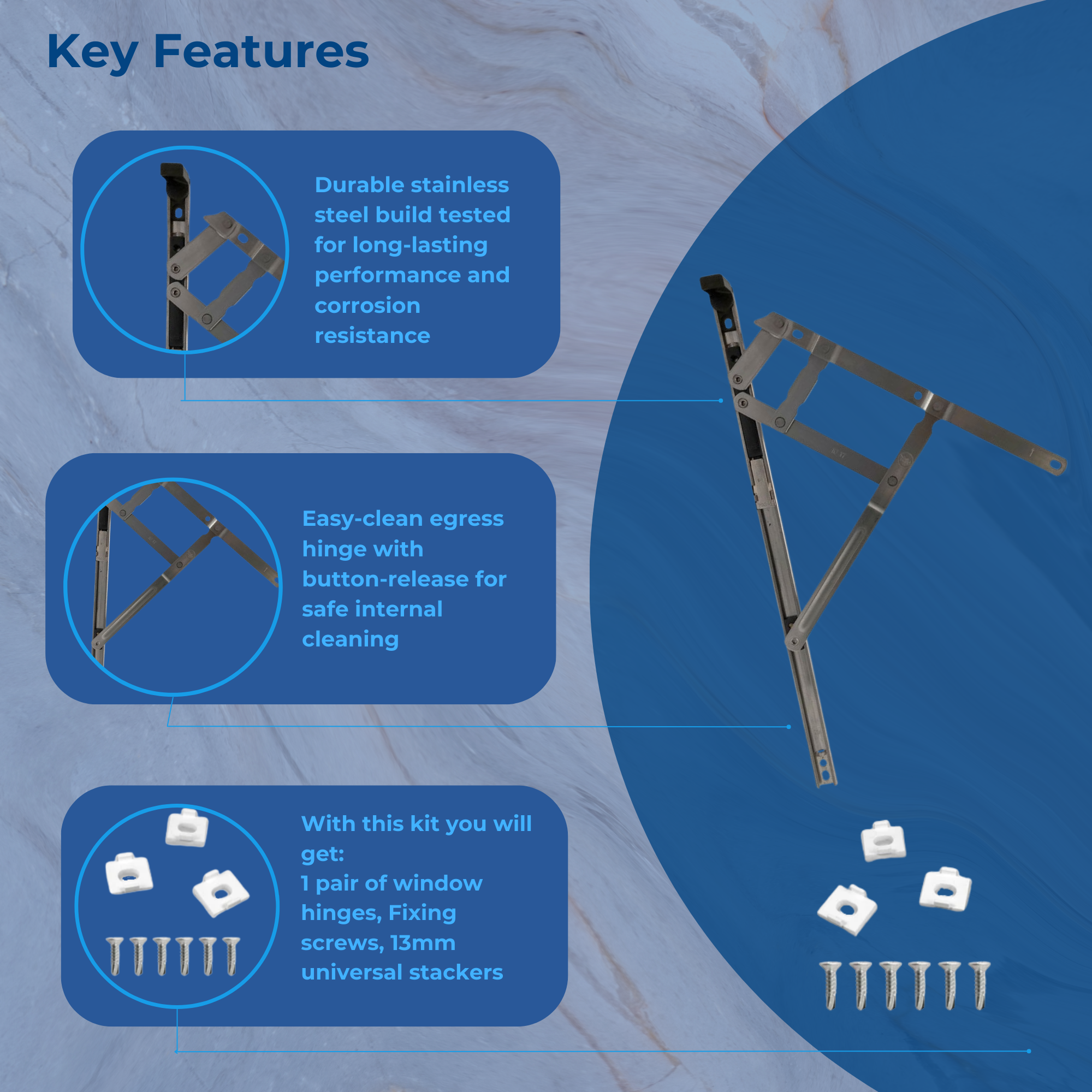

Key Features

• Compatible with PVCu, timber, and aluminium windows
• Slider with integrated friction
• Button release allows the hinge mechanism to open into the easy-clean position
• Manufactured from ferritic stainless steel

Dimensions

• Available hinge sizes: 12 inch and 16 inch
• Available stack heights: 13mm, 16mm, and 17mm
• Track width: 18mm

Maximum Sash Weight

• 22kg (12 inch)
• 24kg (16 inch)

Guarantees & Accreditations

• Endurance tested to 20,000 cycles
• Corrosion tested to 96 hours (BS EN 1670 Grade 3)
• Tested to BS 6375 Parts 1 and 2 for window performance
• Secured by Design (SBD) compliant when fitted with a hinge protector
• 10-year mechanical guarantee
• Covered by the Yale Lifetime Security Guarantee, providing financial protection and compensation in the event of a break-in due to product failure
