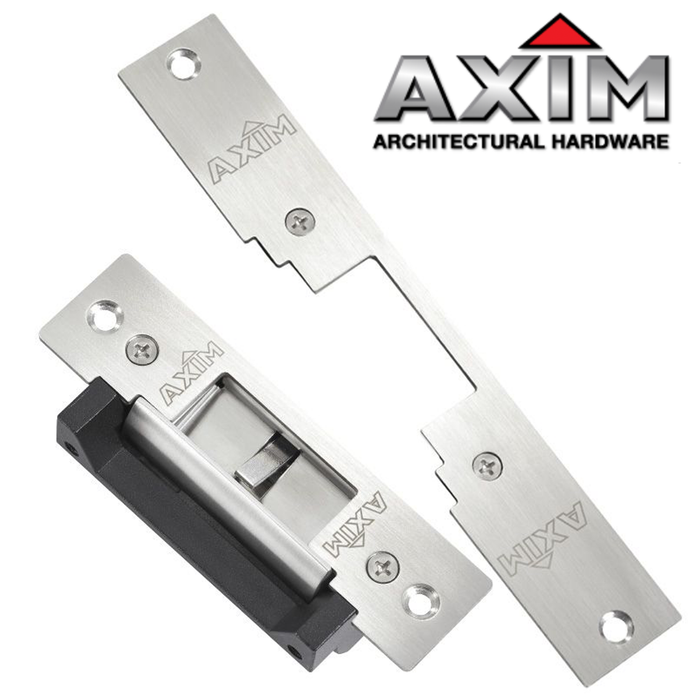

Axim ES2200 12-24V Electric Striker

The Axim ES-2200 series of electric strikes are an ANSI style door release designed to work with most leading brand deadlocking night latch locks. They come complete with stainless-steel short or long faceplates for use in most metal or timber door frame applications. The Axim ES-2200 series are shipped as fail-secure and can be converted to fail-safe mode by the simple removal of a screw. The Axim ES-2200 can also be set to 12V or 24V by simply re-configuring the wires in a different sequence.

 Key features:

• 450kg holding force
• Simple fail-safe/fail-secure changeover
• Easy installation
• Can be set to 12/24V AC/DC on site
• AC fail-secure only & DC fail-safe/fail-secure
• Comes with stainless-steel flat design face plates in two sizes: Short (124mm x 31.7mm) | Long (201.5mm x 31.7mm)
• Simple, effective replacement for most leading brand ANSI electric releases
• Supplied with 250mm of cable
• 10mm, 25mm and 50mm extension lips available
• Power consumption and current draw: 12/24V DC – 300mA | 24/24V DC – 150mA

 Guarantees & accreditations:

• Conforms to EN 1154
• 30-month manufacturer's guarantee
