Winkhaus Cobra 45mm Split Spindle Door Lock – 20mm Radius Ends
UPVCSTORE · WINKHAUS 29490268
Winkhaus Cobra 2 Hook Door Lock
45mm backset · Split spindle · 20mm radius-ended faceplate
|
45mm Backset |
92mm PZ centres |
20mm Round-ended faceplate |
Genuine Winkhaus Cobra multipoint lock with two hooks, a central latch and deadbolt. This listing is for code 29490268: the 45mm backset, split-spindle version with a flat 20mm faceplate and radius ends.
Suitable for compatible composite, timber and uPVC door installations. Match the dimensions and locking positions to the existing lock before ordering.
Choose the correct ends: this is the round-ended version, not square-ended code 1504737.
Key features
| ✓ Two hook locking points | ✓ Central latch and deadbolt |
| ✓ Split-spindle operation | ✓ Reversible latch |
| ✓ 20mm flat faceplate | ✓ Genuine Winkhaus mechanism |
Technical specifications
| Product code | 29490268 |
| Backset / PZ centres | 45mm / 92mm |
| Faceplate | 20mm flat, radius ends |
| Spindle / operation | 8mm split spindle |
| Overall length | 2100mm |
| Hook spacing | 1490mm |
| Top / bottom hook to spindle | 720mm / 770mm |
| Handing | Non-handed, reversible latch |
In the box
1 × Winkhaus Cobra 29490268 full multipoint lock. Handles, cylinder, keeps and spindle accessories are not included.
Frequently asked questions
How do I measure the backset?
Measure from the front of the faceplate to the centre of the cylinder keyway. This version measures 45mm.
Will it fit my composite door?
Check the 45mm backset, 92mm centres, 20mm faceplate, radius ends and hook positions. Door material alone does not establish compatibility.
Can I use a solid spindle?
The split follower can accept a suitable solid spindle for lever operation. Use the appropriate handle and spindle arrangement for the required outside-entry function.

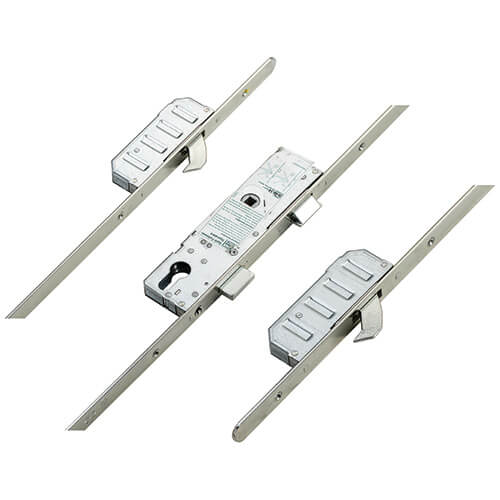

Images illustrate the supplier’s Cobra 20mm faceplate range; the supplied specification is code 29490268 as listed above.
