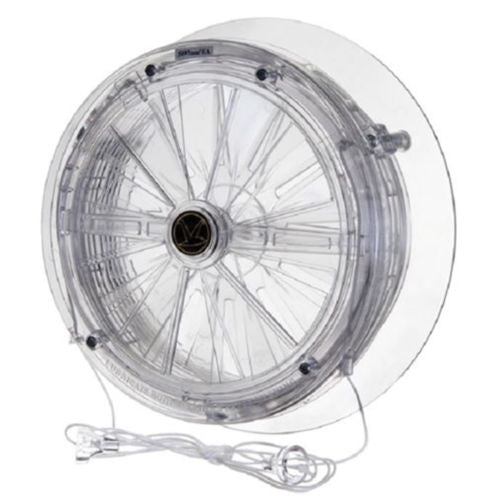

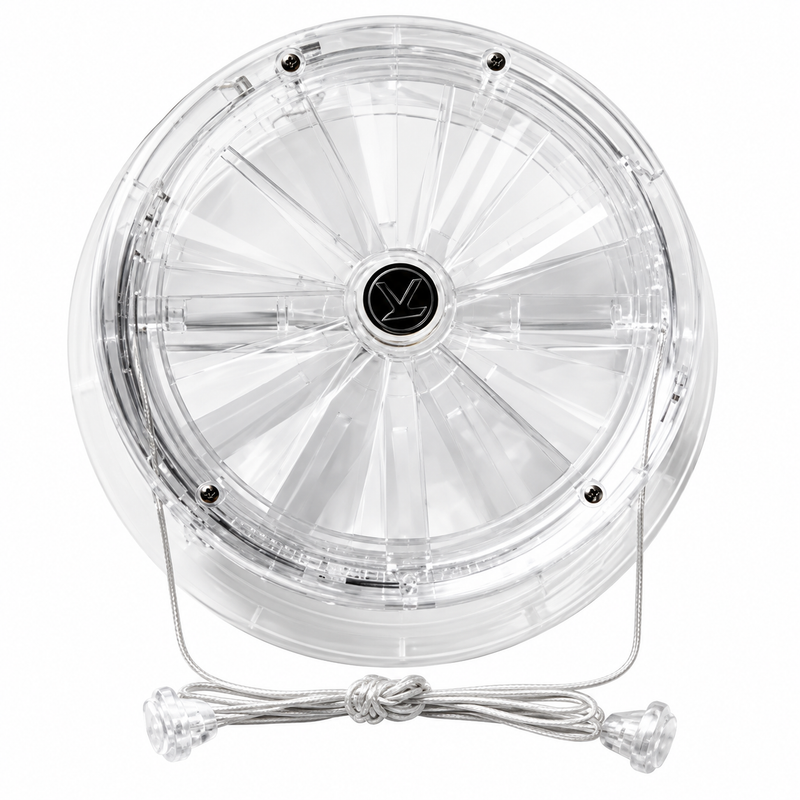

RW Simon Vent-A-Matic DGS 106 Pull-Cord Ventilator for Double Glazing with Stormguard

RW Simon Vent-A-Matic DGS 106 with Stormguard

A non-electric, pull-cord-controlled rotary ventilator for sealed double-glazed units. The integrated stormguard helps reduce draughts. This is model DGS 106, supplied as one complete ventilator with stormguard.

Technical information

• Supplier code: VMT30507
• Required circular glass aperture: 162mm diameter
• Suitable sealed double-glazed unit thickness: 12–32mm
• Overall diameter (dimension F): 203mm
• Equivalent area (EA): 6,997mm²
• Operation: pull cord; no electrical connection required

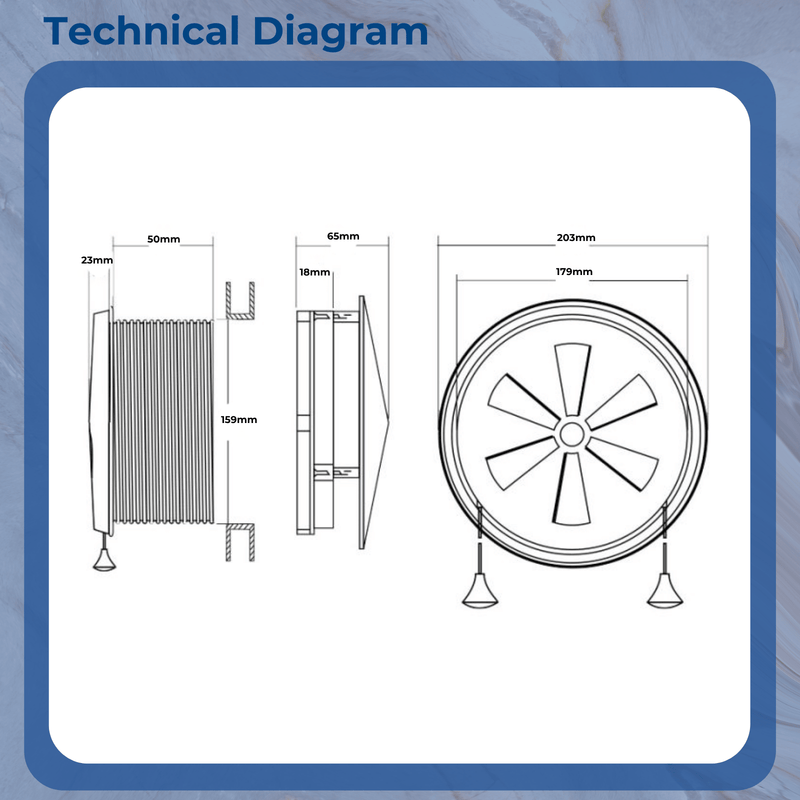

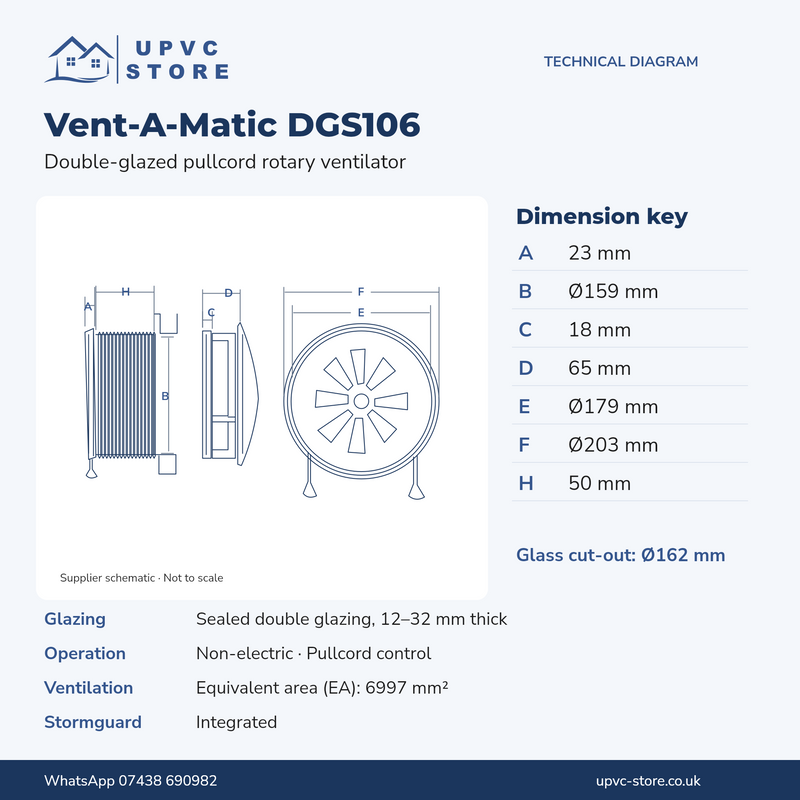

Refer to the technical drawing for the remaining dimensions and compare the model, glass thickness and aperture before ordering. The quoted equivalent area is an area measurement, not an extraction rate.
