uPVC Universal Window Hinge Kit Double Glazing Friction Stay PVC 13mm 17mm Stack 12 16 24 inch High Quality Non Handed Stainless Steel

by Mila

Original price £10.20 - Original price £22.16
Original price
£20.99
£10.20 - £22.16
Current price £20.99
Length: 20 inch

Manufactured from Ferretic stainless steel, grade 430 13mm stack heigh with 17mm universal stackers
Top hung 24”
Side hung 12”, 16”

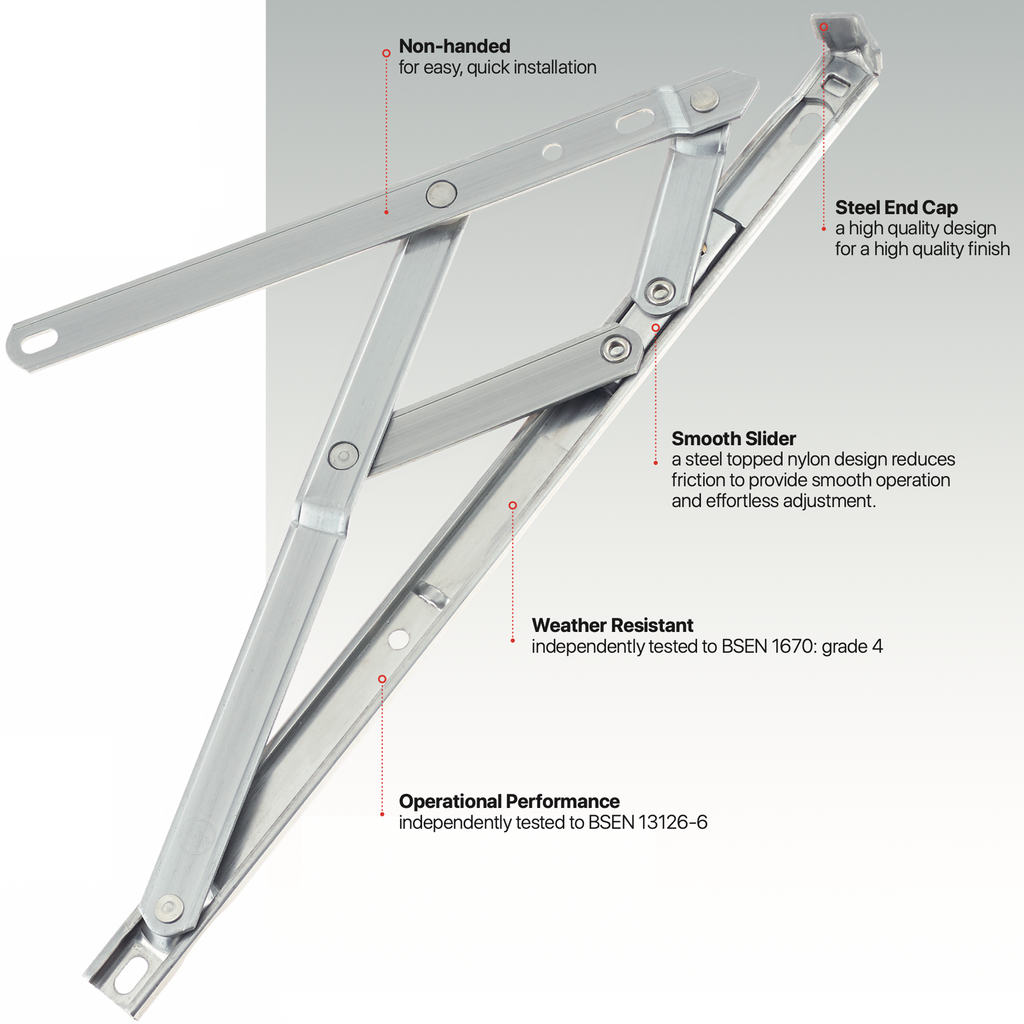

Operational performance - tested to BSEN 13126-6, 20,000 cycles Weather resistance - tested to BSEN 1670 grade 4
Guaranteed for 10 years



Technical Specifications-

12 inch Universal kit
1 Pair of 12 inch, Side hung, 13mm stack with 17m stackers,
88 degree opening angle, max sash weight 22kg, complete with fixing screws

16 Inch Universal Kit
1 Pair of 16 inch, Side hung, 13mm stack with 17m stackers,
85 degree opening angle, max sash weight 25kg, complete with fixing screws

24 Inch Universal Kit
1 Pair of 24 inch, Top Hung, 13mm Stack with 17mm Stackers,
38 degree opening angle, max sash weight 48kg, complete with fixing screws

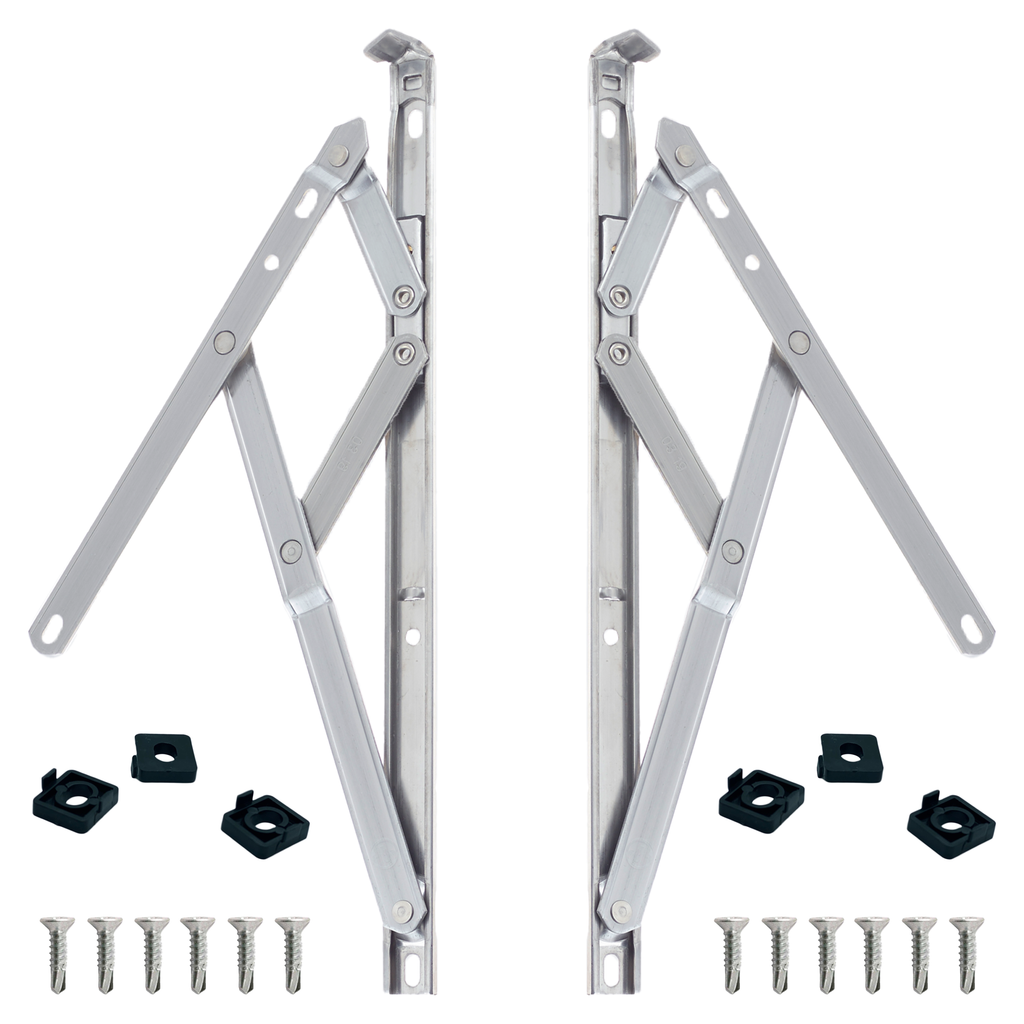

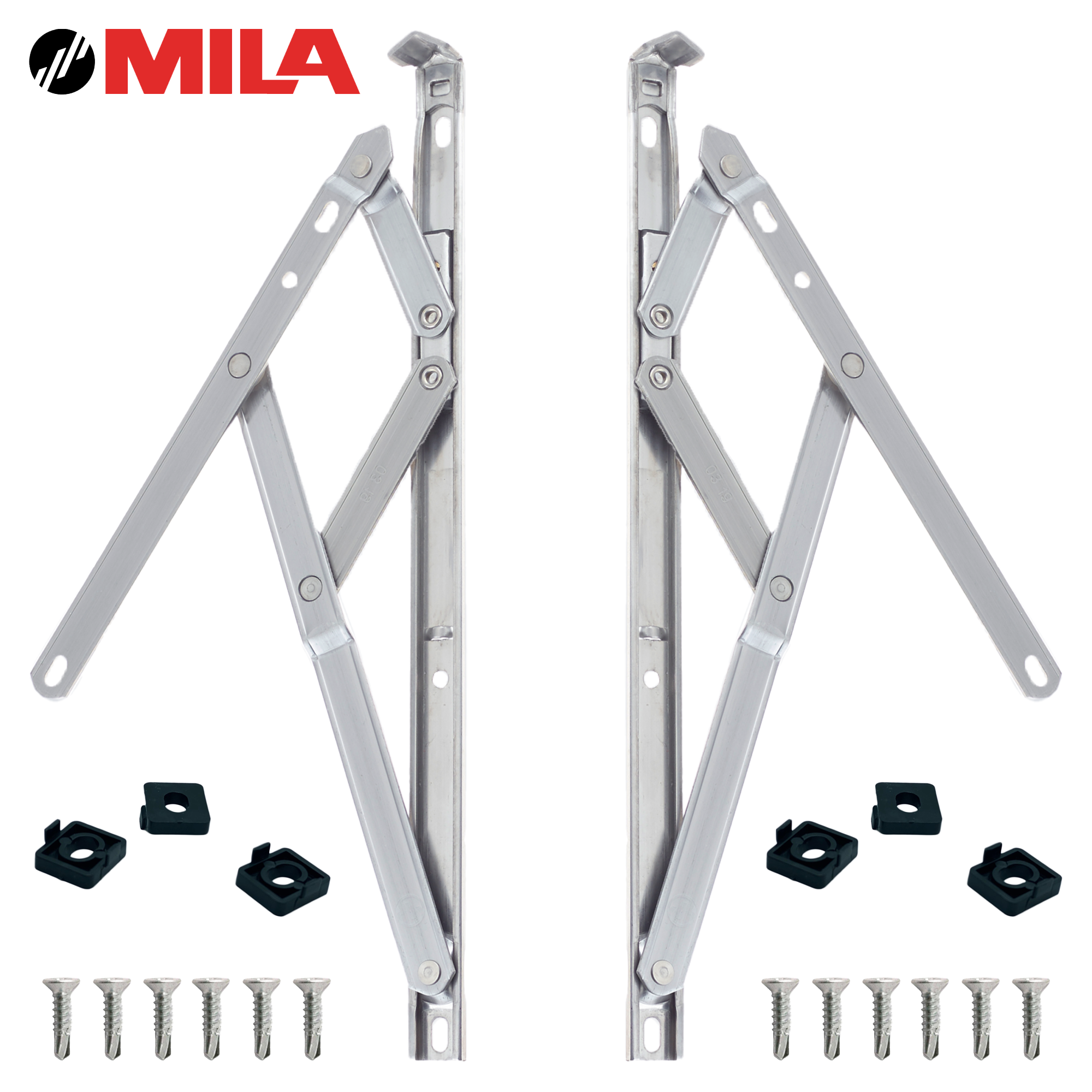

What's In The Kit?

1 pair for window hinges
Fixing screws
17mm universal stackers
