uPVC Universal Window Handle Cranked Double Glazing Locking Espag Replacement
Yale Quartus Cranked Window Handle

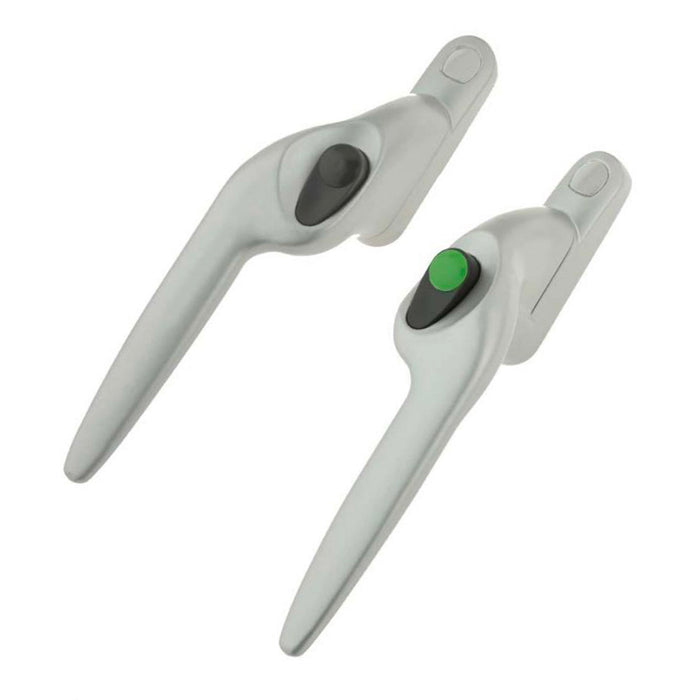

A key-locking espagnolette handle for compatible uPVC and aluminium windows. Its offset grip provides clearance beside the frame, while a push-button release allows everyday operation. Choose the left- or right-hand version, finish and spindle length to match your existing handle.

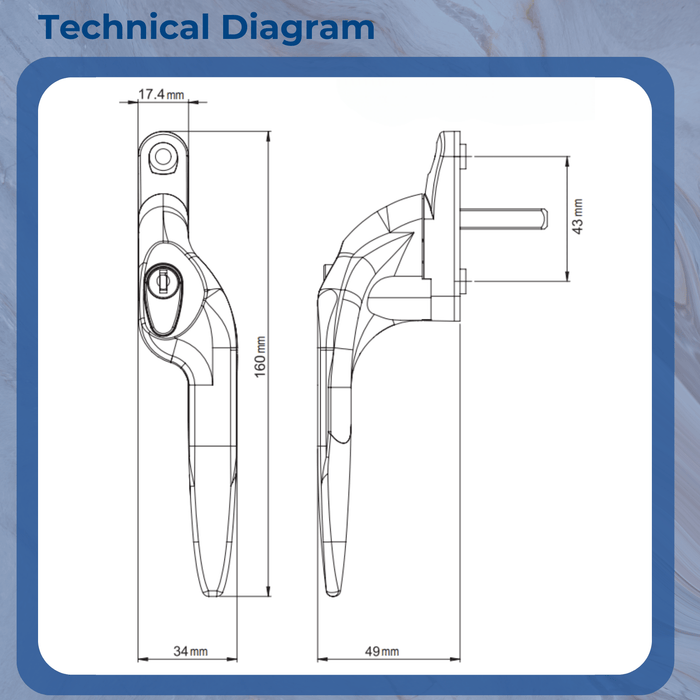

Technical information
| Handle design | Cranked / offset, handed |
|---|---|
| Fixing centres | 43mm |
| Overall length | 160mm |
| Overall width | 34mm for the offset design |
| Projection | 49mm, excluding the spindle |
| Backplate width | 17.4mm |
| Spindle | Fixed; length as selected |
| Materials | Zinc alloy and aluminium alloy |
| Operation | Push to unlatch, with key deadlocking |
10mm spindle options

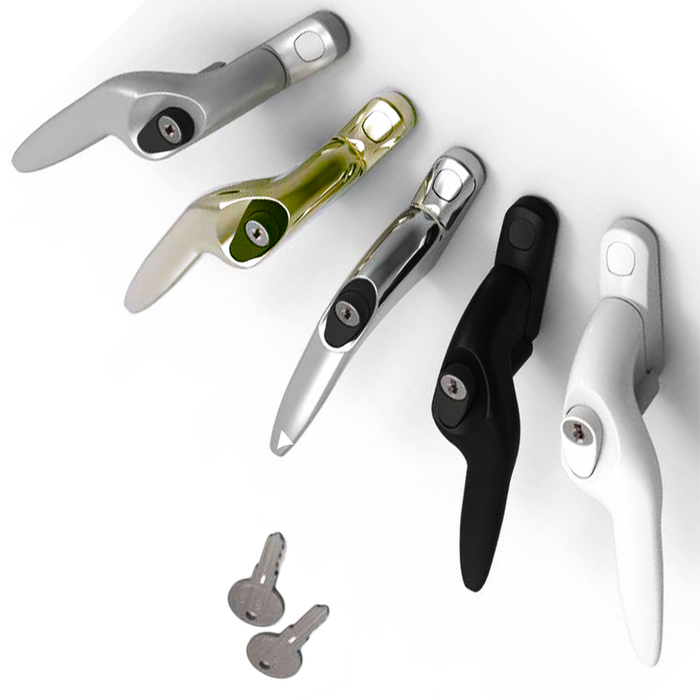

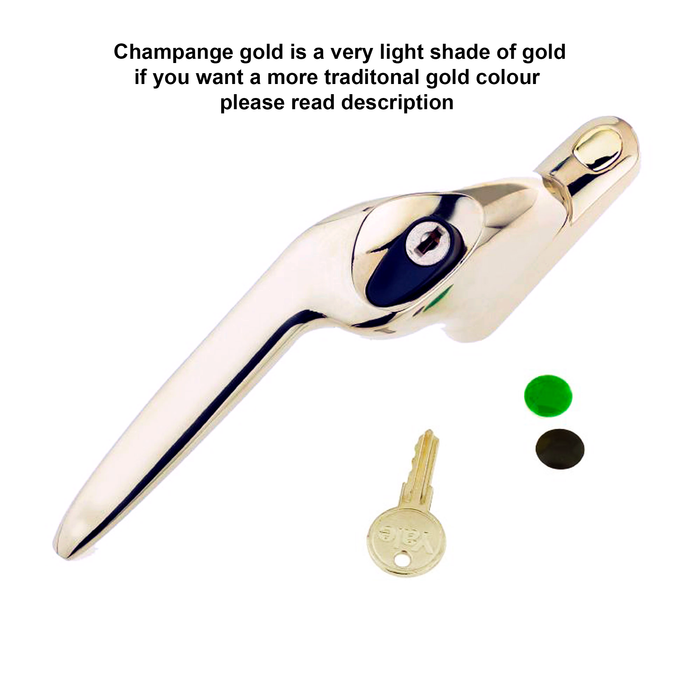

The 10mm options are Yale Quartus handles in white, black or champagne gold, each available left or right handed. White: ESP10503 / ESP10504; black: ESP10553 / ESP10554; champagne gold: ESP10593 / ESP10594 (left / right respectively). Champagne gold is a pale gold finish.
What is supplied

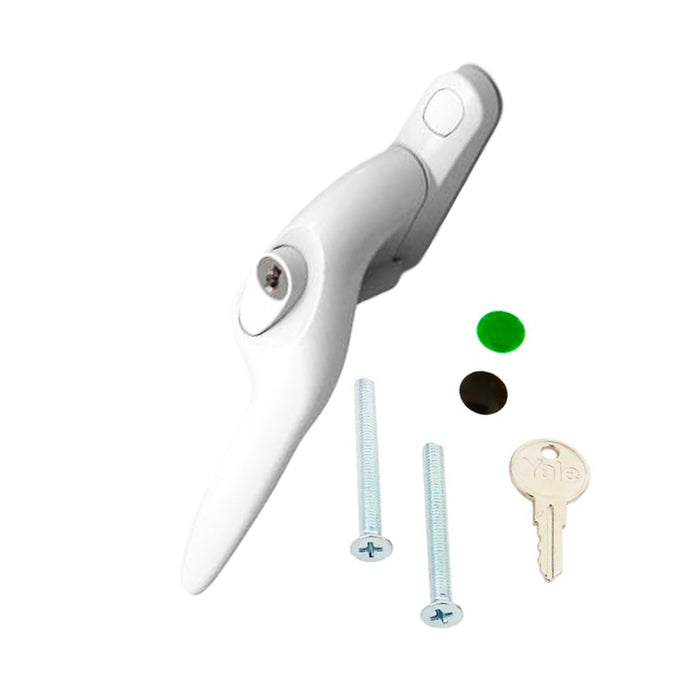

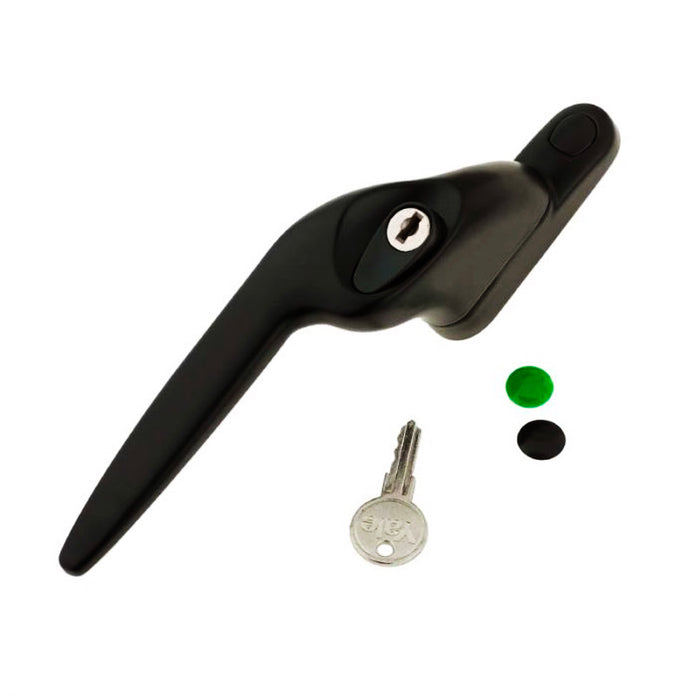

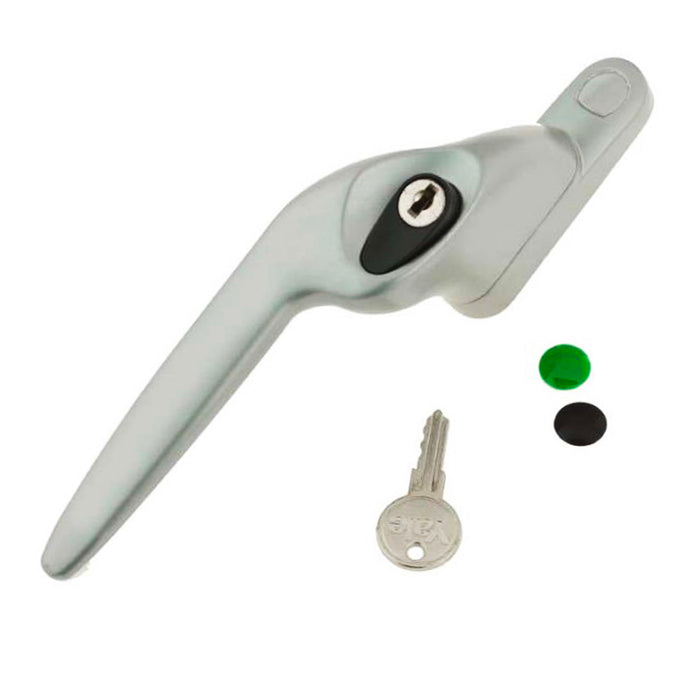

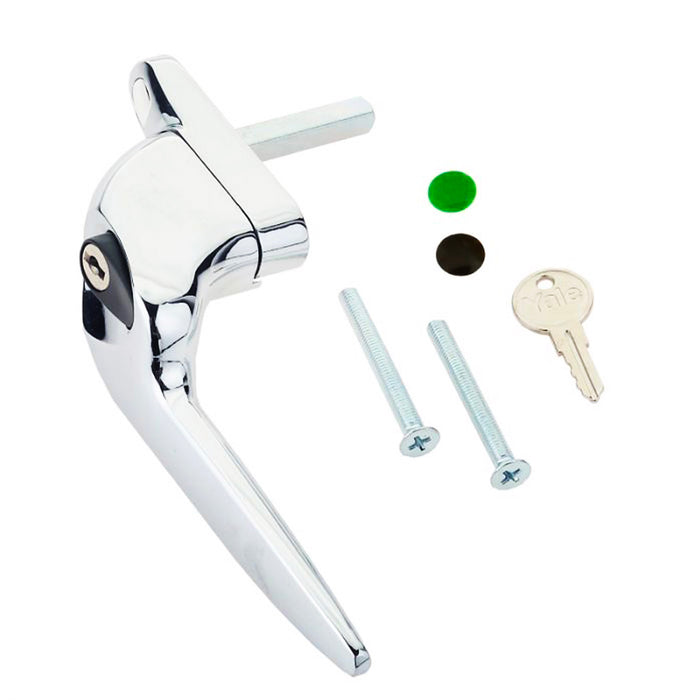

One handle in the selected finish, handing and spindle length, with one Yale key, fixing screws, matching screw-cover caps and cylinder plugs.
Check before ordering

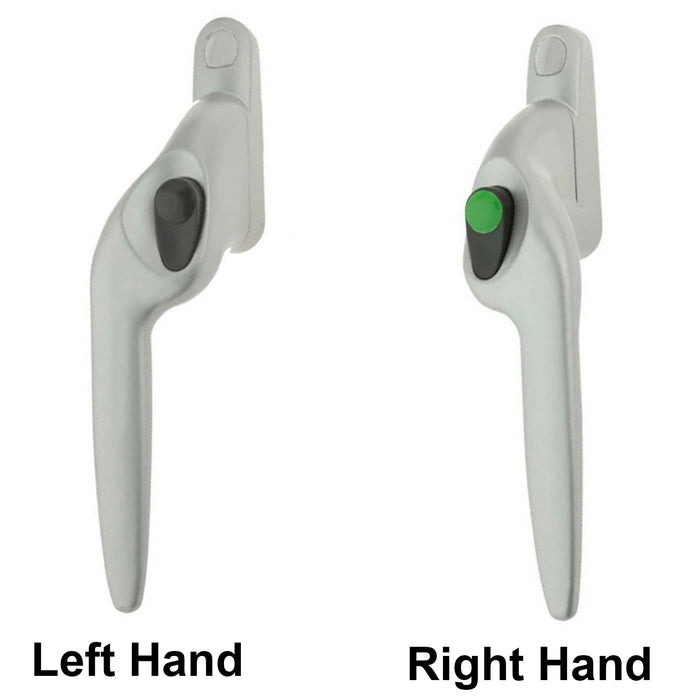

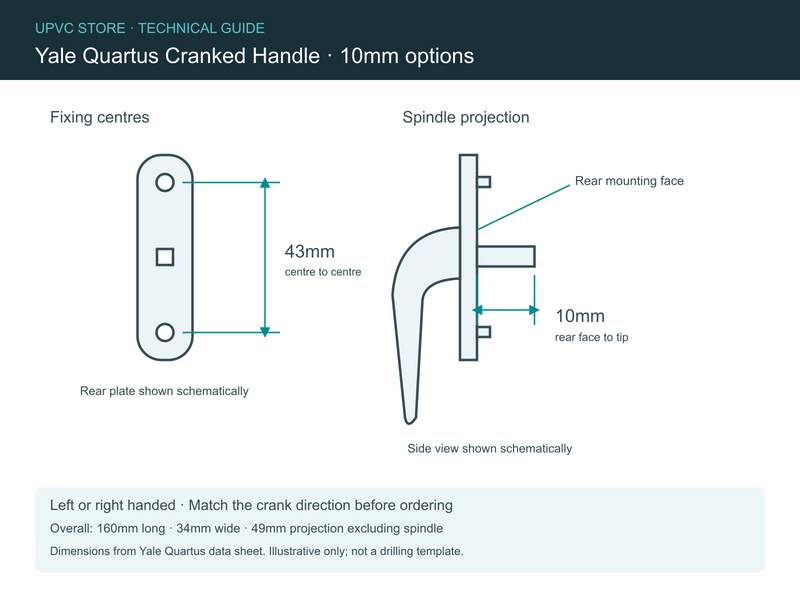

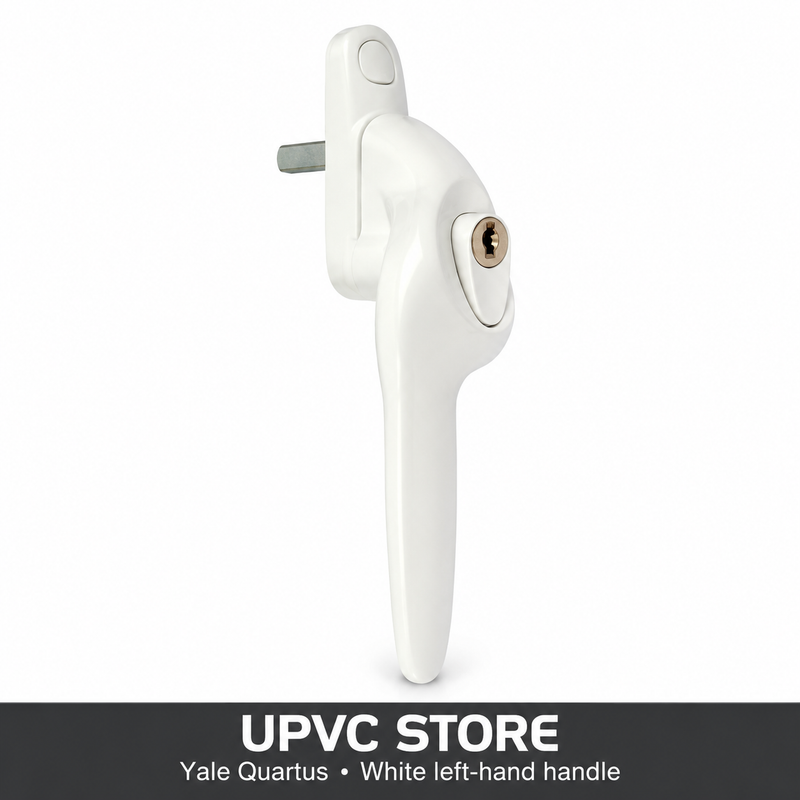

Match the crank direction to your existing handle. Measure the spindle from the rear mounting face to its tip and measure between the two fixing-screw centres. Compare all dimensions with your window mechanism. The white left-hand photograph illustrates that specific option; choose your required finish and handing above.
