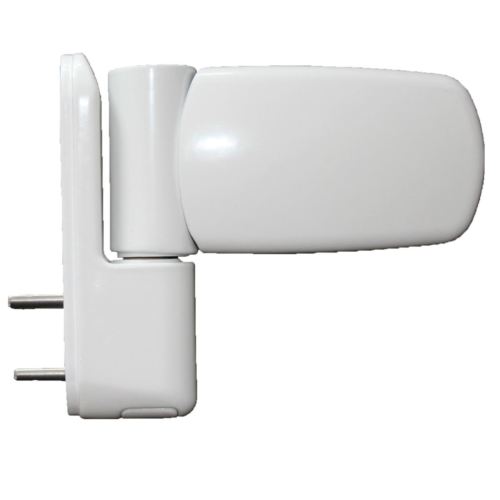

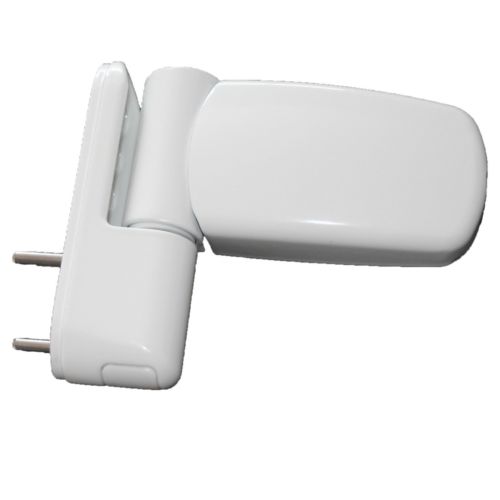

UPVC Double Glazing Door Flag Hinge Adjustable Avocet ET3D

Technical Details

Non Handed and will fit both Left and Right Doors

Assessment Data Performance: Endurance tested to 100,000 operations, Load tested to 100kg on 3 hinges

Corrosion Resistance: All finishes meet the requirements of BS EN 1670:2007 - grade 5 (480 hrs Salt Spray)

 Material Specifications

Hinge Leaf/Body/Pins: Zinc Alloy BS1004A Top/Bottom

Nylon Bush: Nylon 6

Screws & Pins: Stainless Steel Powder
