TS007 3 Star Euro Thumbturn Cylinder Lock – UPVCSTORE Anti-Snap BSI Kitemarked Key & Turn Door Barrel, High Security for UPVC Composite Doors, 3 Keys
UPVCSTORE
TS007 3 Star Euro Key & Thumbturn Cylinder
BSI Kitemarked Anti-Snap High Security Door Lock
|
★ TS007 3 STAR |
♦ BSI KITEMARKED |
🛡 10-YEAR GUARANTEE |
🔑 3 KEYS INCLUDED |
Upgrade your home security in minutes with the UPVCSTORE TS007 3 Star Euro Key & Thumbturn Cylinder. Independently tested and certified by BSI to the highest standalone security rating for euro cylinders, this lock provides complete protection against snapping, drilling, picking, bumping, and pulling – without the need for additional security handles.
Designed for UPVC, composite, timber, and aluminium doors, this thumbturn cylinder features a key on the outside and a convenient thumbturn knob on the inside, allowing you to lock and unlock your door from within without searching for a key. Ideal for emergency egress, fire safety compliance, and everyday convenience.
Why Choose a Thumbturn Cylinder?
A thumbturn replaces the internal keyhole with a simple twist knob. Lock and unlock from inside with one turn – no key required.
|
🚪 Emergency Egress Exit quickly in case of fire without searching for keys in the dark. One turn and you are out. |
🏠 Flats and HMOs Often required by building regulations for internal fire doors and communal entrances. |
|
✋ Elderly and Accessibility Much easier to operate than a key, especially for those with limited hand strength or dexterity. |
🔒 Everyday Convenience Simply turn the knob to lock up when leaving the house or going to bed. No fumbling for keys. |
Please note: If your door has glass panels or a letterbox nearby, the thumbturn could potentially be reached through broken glass. In this case, a Euro Double Cylinder (Key/Key) may be more appropriate – also available from UPVCSTORE.

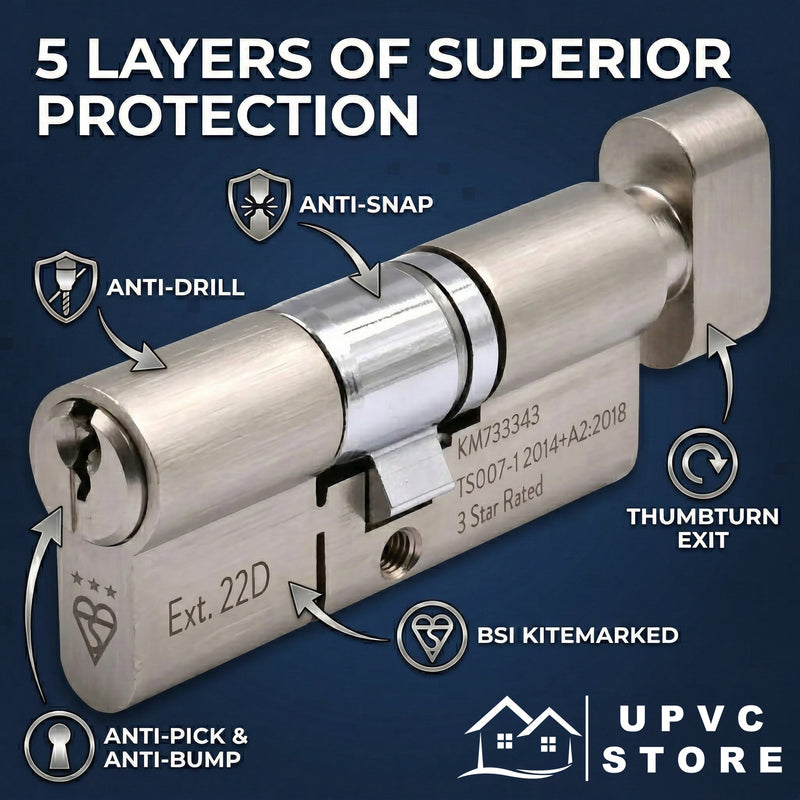

Complete Anti-Attack Protection
|
🛡 Anti-Snap Precision-engineered sacrificial breakpoint. If attacked, the cylinder snaps at the designated line and the cam locks securely behind a solid metal barrier. Your door stays locked even after a snap attack. |
|
🔨 Anti-Drill Hardened stainless steel anti-drill pins embedded throughout the cylinder body prevent high-powered drill attacks from penetrating the lock mechanism. |
|
🔐 Anti-Pick and Anti-Bump Complex 6-pin dimple key profile makes it extremely difficult to manipulate the internal pins with lock-picking or bump key techniques – two of the most common low-skill break-in methods. |
|
💪 Anti-Pull Reinforced cam connection prevents the cylinder from being forcibly extracted from the door using pulling tools. |
TS007 3 Star – The Highest Standalone Rating
Unlike 1-star cylinders (which are not anti-snap) or 2-star handles (which must be paired with a separate cylinder), a 3-star cylinder achieves the maximum security rating on its own – no additional security handles required.
|
1 STAR Resists drill, pick, bump ✗ Not anti-snap |
2 STAR Security handle only ⚠ Requires two products |
3 STAR Standalone cylinder Resists all 5 attacks BSI Kitemarked ✓ This is what you are buying |
Certified to TS007-1:2014+A2:2018 and carrying BSI Kitemark number KM733343, permanently engraved on the cylinder body for verification. Meets the lock security standards commonly referenced by UK home insurance policies.
Easy 2-Minute DIY Installation
No locksmith required. Replacing a euro cylinder is one of the simplest home security upgrades you can make.
|
1
🔧 Remove Turn key to 12 o'clock. Unscrew the retaining screw from the door edge. |
2
🔨 Slide Out Turn the key slightly and pull the old cylinder straight out through the handle. |
3
🔒 Insert and Secure Slide in the new cylinder, tighten the retaining screw, and test with the key. |

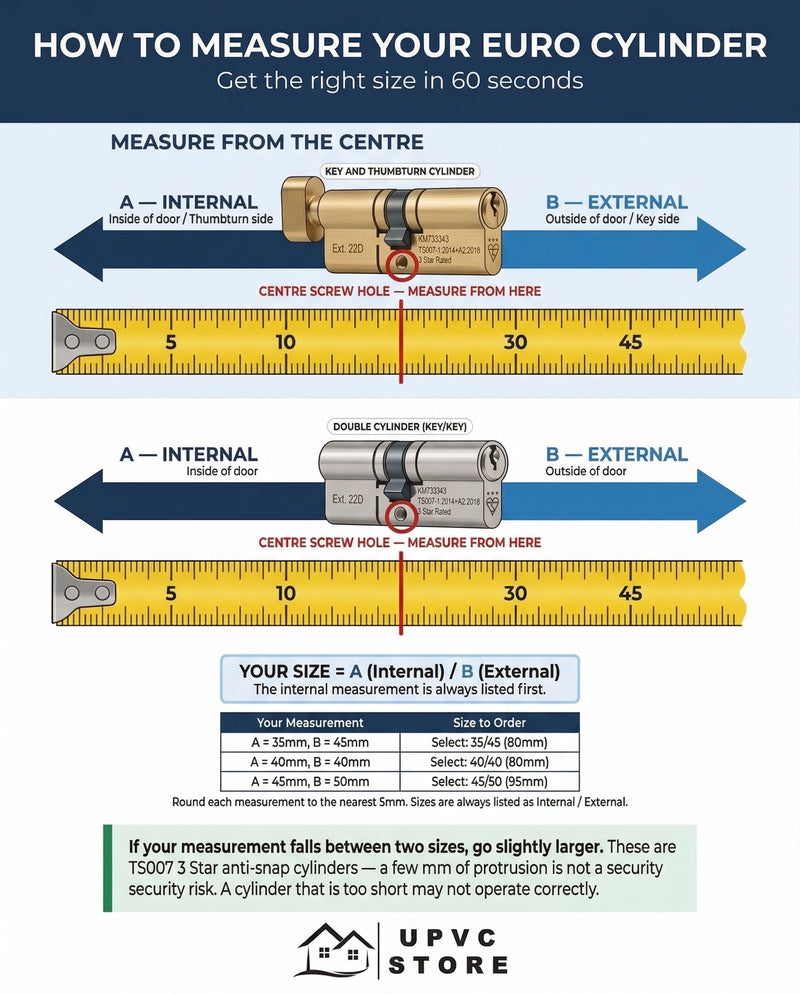

How to Measure Your Euro Cylinder
Remove your existing cylinder and measure from the centre of the fixing screw hole to each end. Round to the nearest 5mm.
| Measurement | Description |
| A – Internal | Centre of screw hole to the inside edge of the door |
| B – External | Centre of screw hole to the outside edge of the door |
| Your Size | A / B – for example 40 / 45 = select "40/45 (85mm)" |
Important: The cylinder should sit flush with your handle, protruding no more than 3–5mm beyond the escutcheon. Excess protrusion gives burglars a grip point for snapping. If in doubt, go slightly shorter.

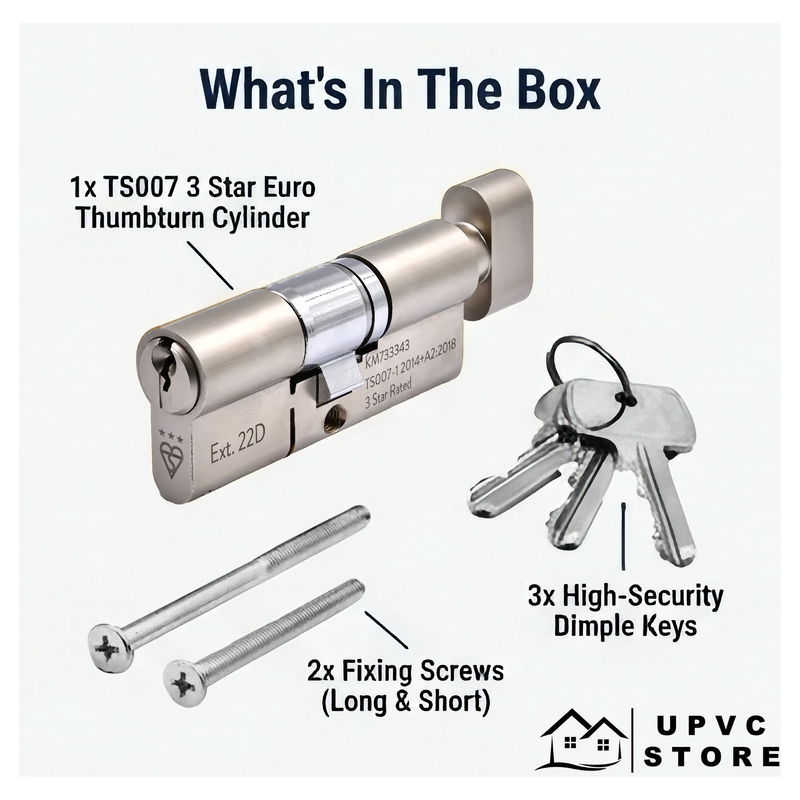

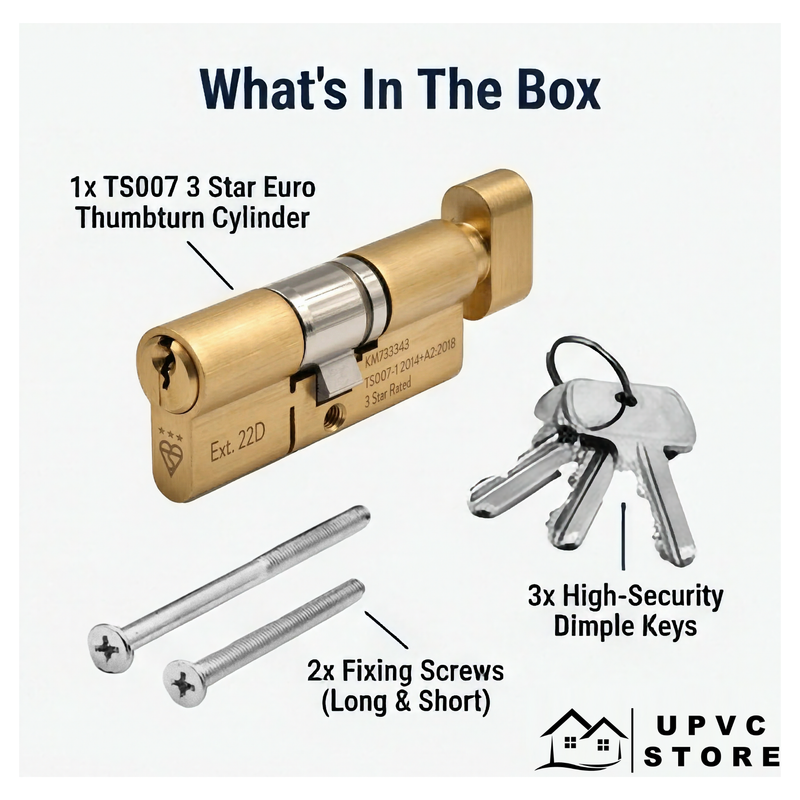

What Is Included
| 1 x TS007 3 Star Euro Key and Thumbturn Cylinder |
| 3 x High-Security Dimple Keys |
| 2 x Fixing Screws (Long and Short) |
| 1 x Key Code Card for Secure Replacement Key Ordering |
Technical Specifications
| Specification | Detail |
| Security Rating | TS007 3 Star – Highest Standalone Rating |
| Certification | BSI Kitemarked – KM733343 |
| Standard | TS007-1:2014+A2:2018 / BS EN 1303 |
| Type | Euro Key and Thumbturn Cylinder |
| Operation | Key outside, Thumbturn inside |
| Mechanism | 6-Pin Dimple Key |
| Protection | Anti-Snap, Anti-Drill, Anti-Pick, Anti-Bump, Anti-Pull |

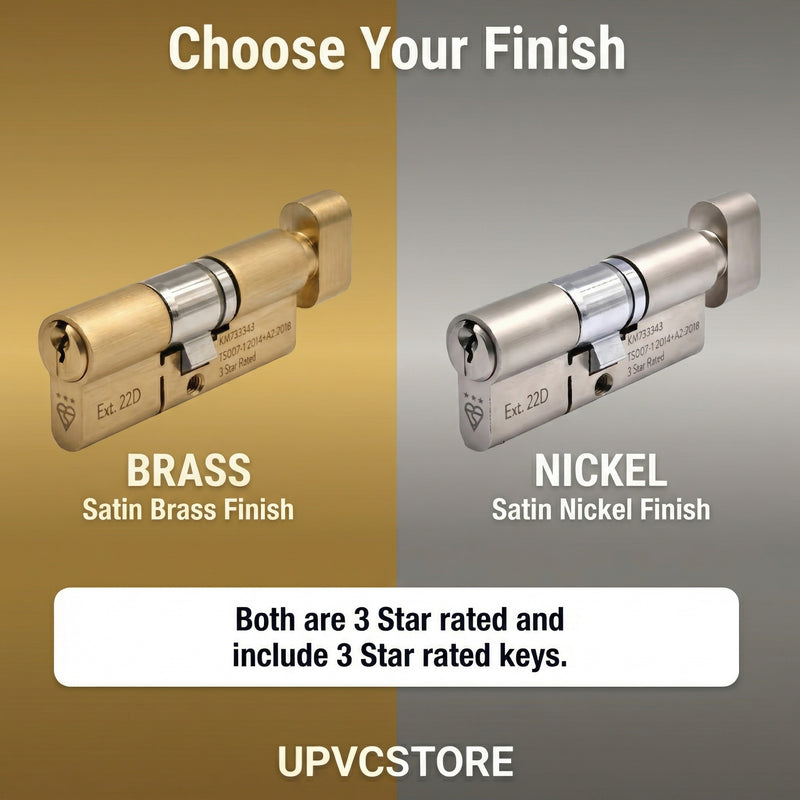

| Available Finishes | Satin Nickel / Satin Brass |
| Available Sizes | 35/35 (70mm), 40/40 (80mm), 45/45 (90mm), 50/50 (100mm) |
| Keys Supplied | 3 High-Security Dimple Keys |
| Fixing Screws | 2 Included (Long and Short) |
| Door Compatibility | UPVC, Composite, Timber, Aluminium – standard euro profile |
| Lock Compatibility | All standard euro profile multipoint locks |
| Guarantee | 10-Year Mechanical Guarantee |
| Brand | UPVCSTORE |
Frequently Asked Questions
How do I know if this will fit my door?
If your door currently has a euro profile cylinder – the oval-shaped barrel that sits inside the handle – then this is a direct replacement. Remove your existing cylinder, measure from the centre of the screw hole to each end, round to the nearest 5mm, and select the matching size from the dropdown above.
What is the difference between a thumbturn and a double cylinder?
A thumbturn cylinder has a key on the outside and a twist knob on the inside, so you do not need a key to lock or unlock from within your home. A double cylinder requires a key on both sides. The thumbturn is better for convenience and emergency exit. The double cylinder is more secure if your door has nearby glass panels or a letterbox, as the thumbturn could potentially be reached through broken glass.
What does TS007 3 Star mean?
TS007 is a British security standard for euro cylinders, developed by the Door and Hardware Federation. The 3 Star rating is the highest standalone level, meaning the cylinder resists all five main attack methods – snapping, drilling, picking, bumping, and pulling – on its own, without the need for an additional security handle. This is the standard most UK insurance companies reference for door lock security.
Does this meet my home insurance requirements?
TS007 3 Star BSI Kitemarked cylinders meet the lock security standards commonly referenced by UK home insurance policies. We recommend checking your specific policy wording or contacting your insurer to confirm their requirements.
Can I fit this myself?
Yes. Replacing a euro cylinder is a straightforward DIY job that takes approximately 2 minutes. The only tool you need is a Phillips screwdriver. No locksmith, no drilling, and no specialist equipment required. Two fixing screws are included to suit different door thicknesses.
How many keys are included?
Three high-security dimple keys are included with every cylinder, along with a key code card so you can order secure replacement keys in the future without needing to take the lock to a locksmith.
What if I order the wrong size?
Please contact us and we will arrange an exchange for the correct size. We are here to help and want to make sure you get the right cylinder for your door.
🛡 10-Year Mechanical Guarantee
Every UPVCSTORE TS007 3 Star cylinder is covered against manufacturing defects in parts and finish.
Please select your size and finish from the dropdown menu above. Contact us if you need help choosing the right cylinder.
