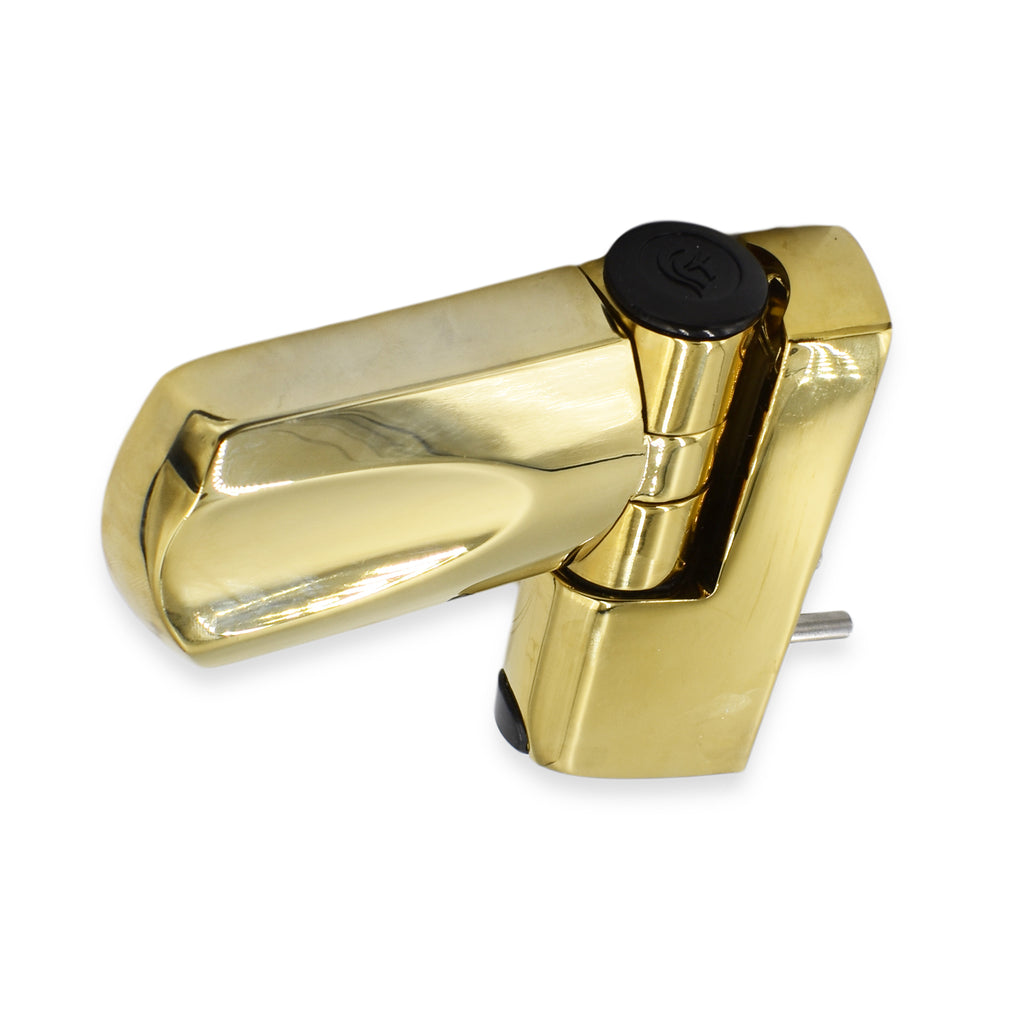

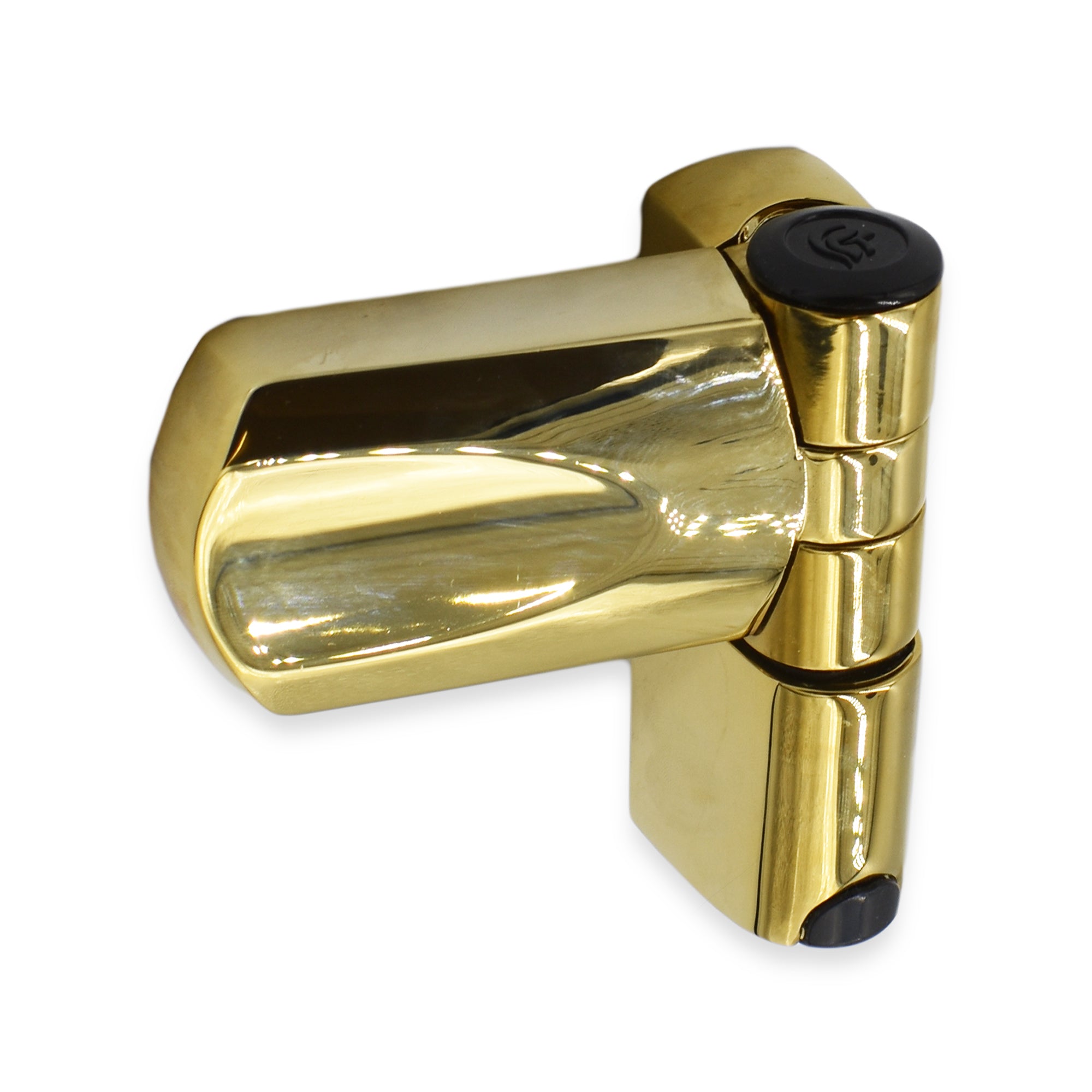

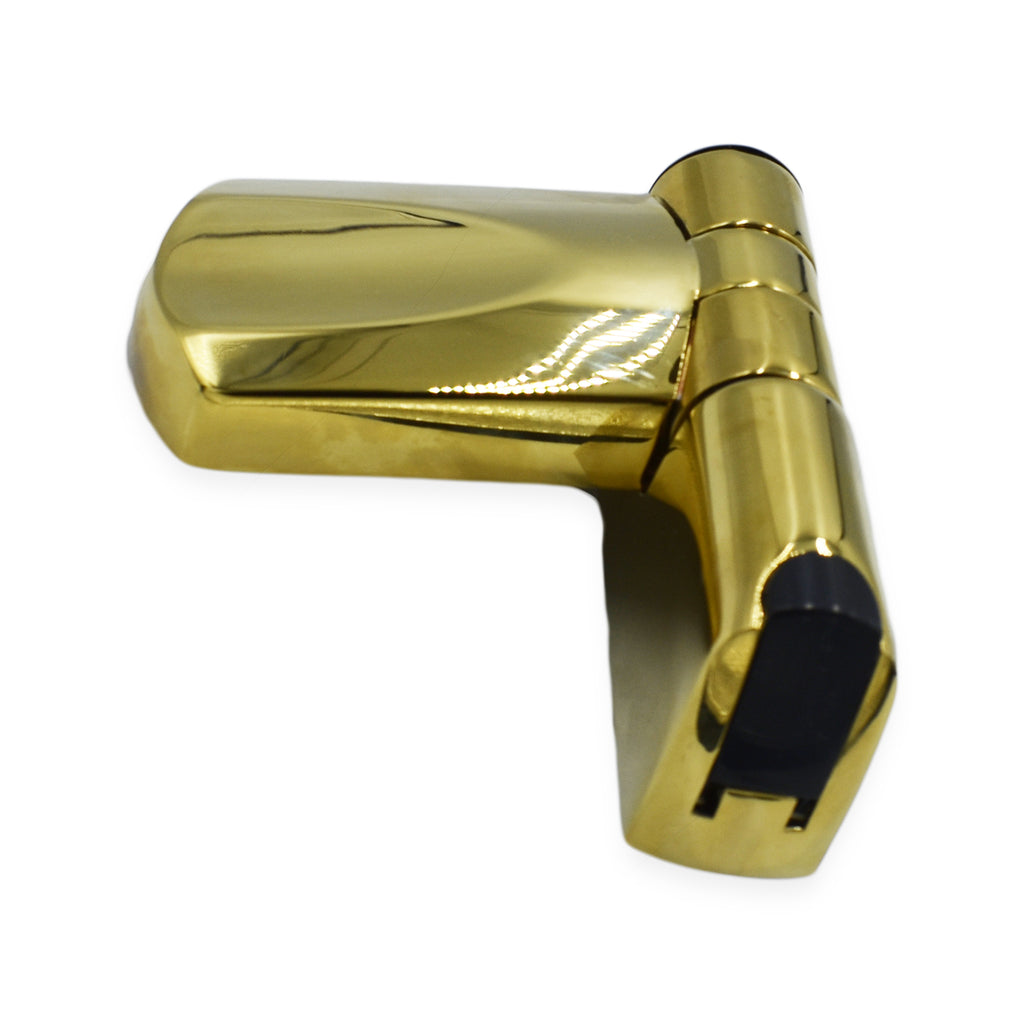

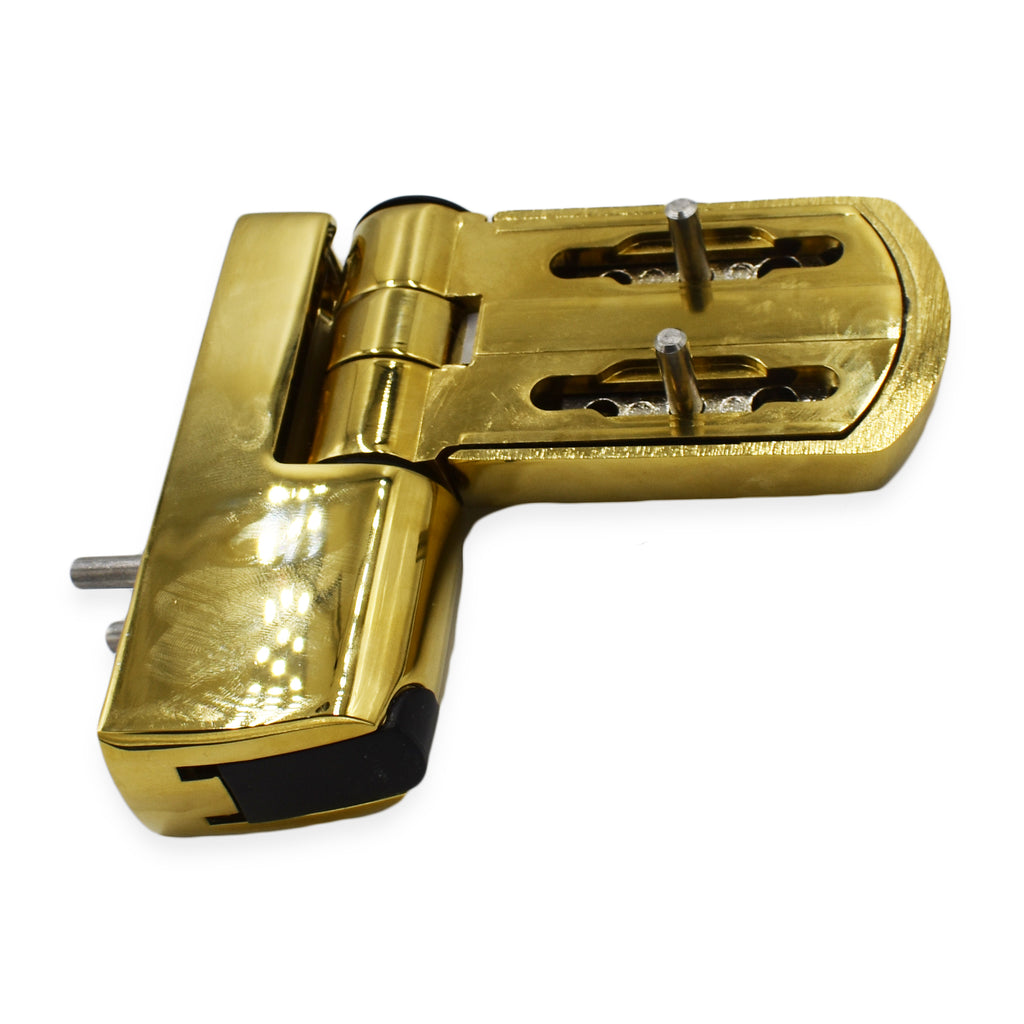

TROJAN PATRIOT FLAG HINGE IN GOLD FOR UPVC DOOR
Regular price £14.99
Shipping calculated at checkout.
TESTING AND ACCREDITATION
Salt Spray - Zinc substrate has been tested at an independent UKAS test laboratory to BS EN 1670 and has achieved grade 4 classification across all finishes.
PAS 23/24 compatible.
Operational durability - tested to 100,000 cycles.
PRODUCT MATERIAL SPECIFICATIONS
Zinc die cast components - ZL2.
Stainless steel parts are - 430 S17 stainless steel.
Plastic parts are Nylon 66, UV stabilised ABS and ACETAL.
NOMINAL STEP HEIGHTS AND SHIMS
High hinge - TRO-0740-2005-GO = 19.25mm stack height.
High shim - 0740-025 = 7.50mm
Height: + 7.0mm.
Compression: +/- 1.75mm.
Lateral: +/- 5.5mm.
MAXIMUM WEIGHT CARRYING CAPACITY
2 hinges 80kg - 3 hinges 120kg.
