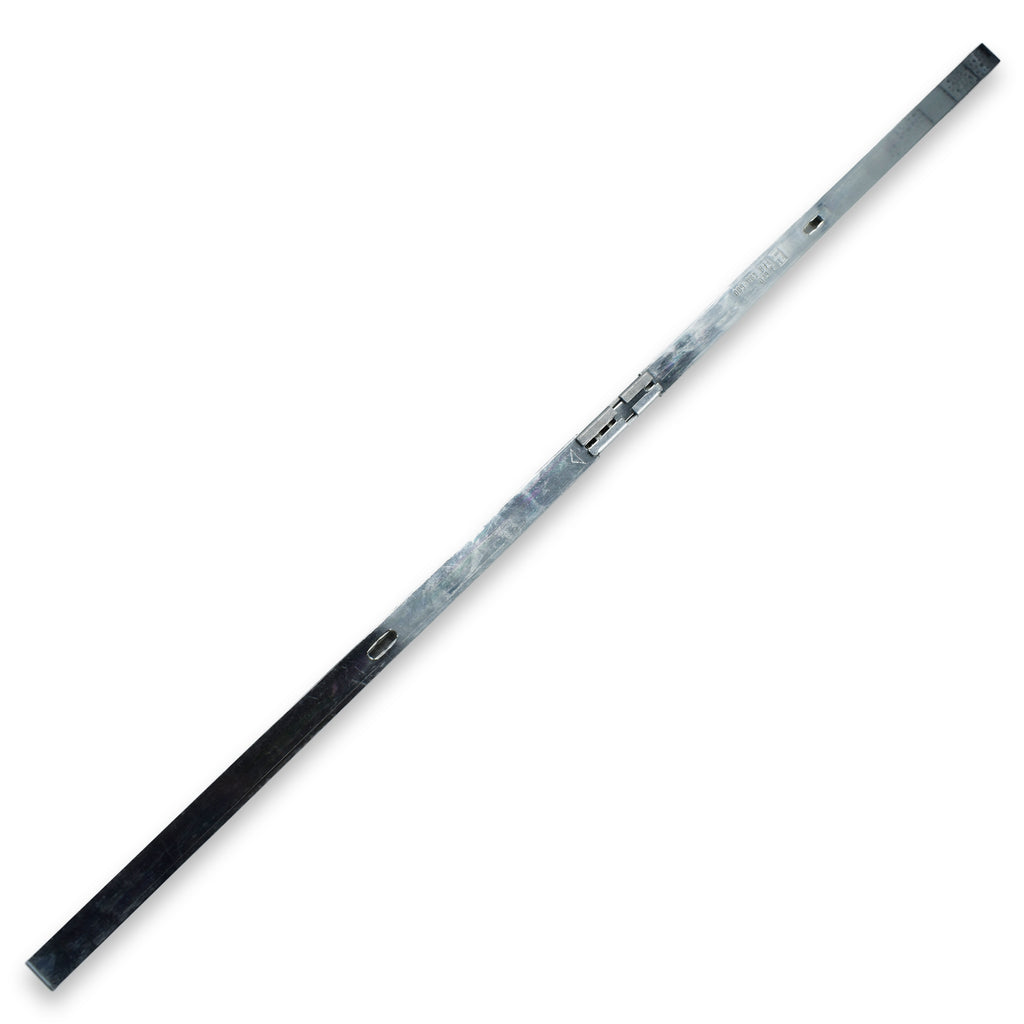

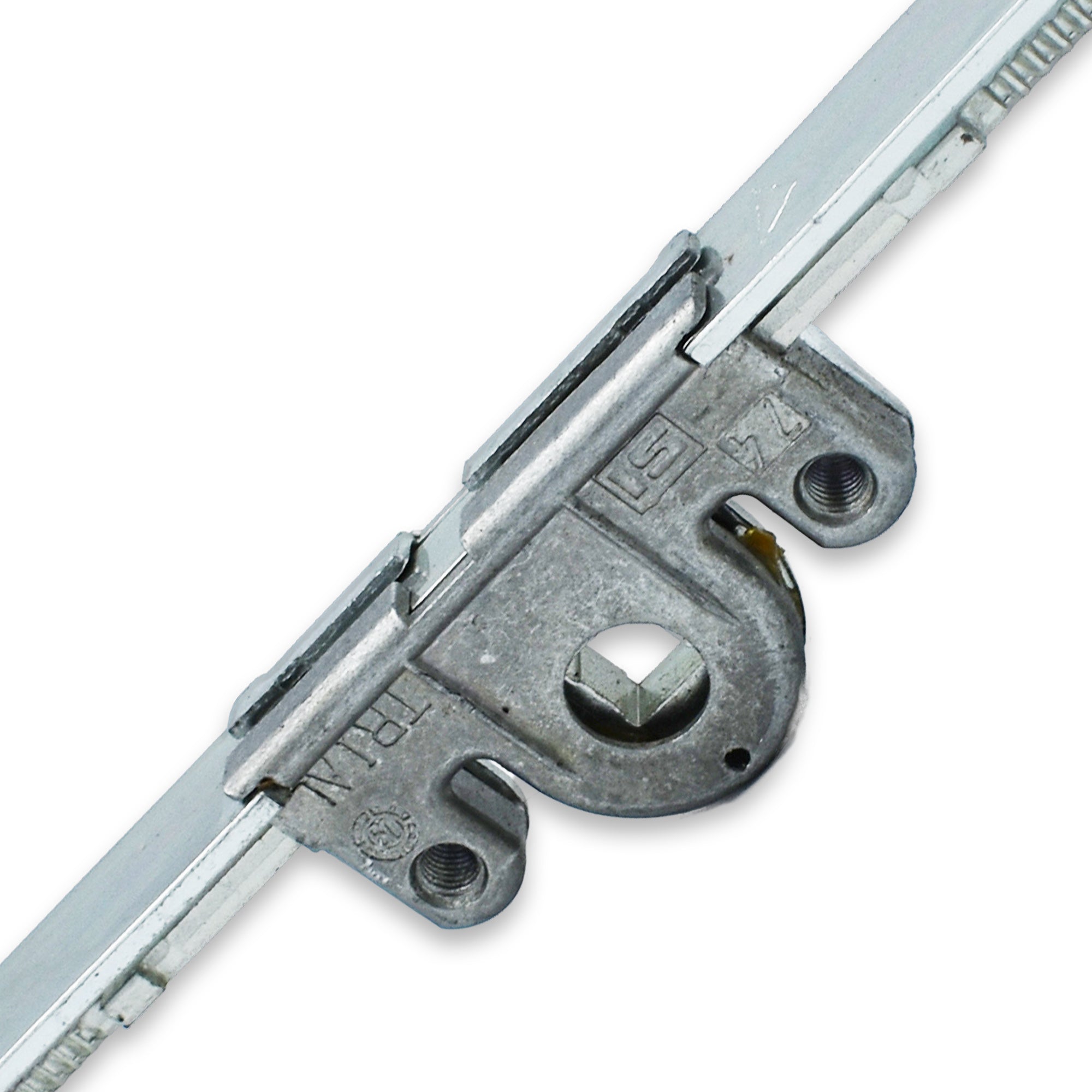

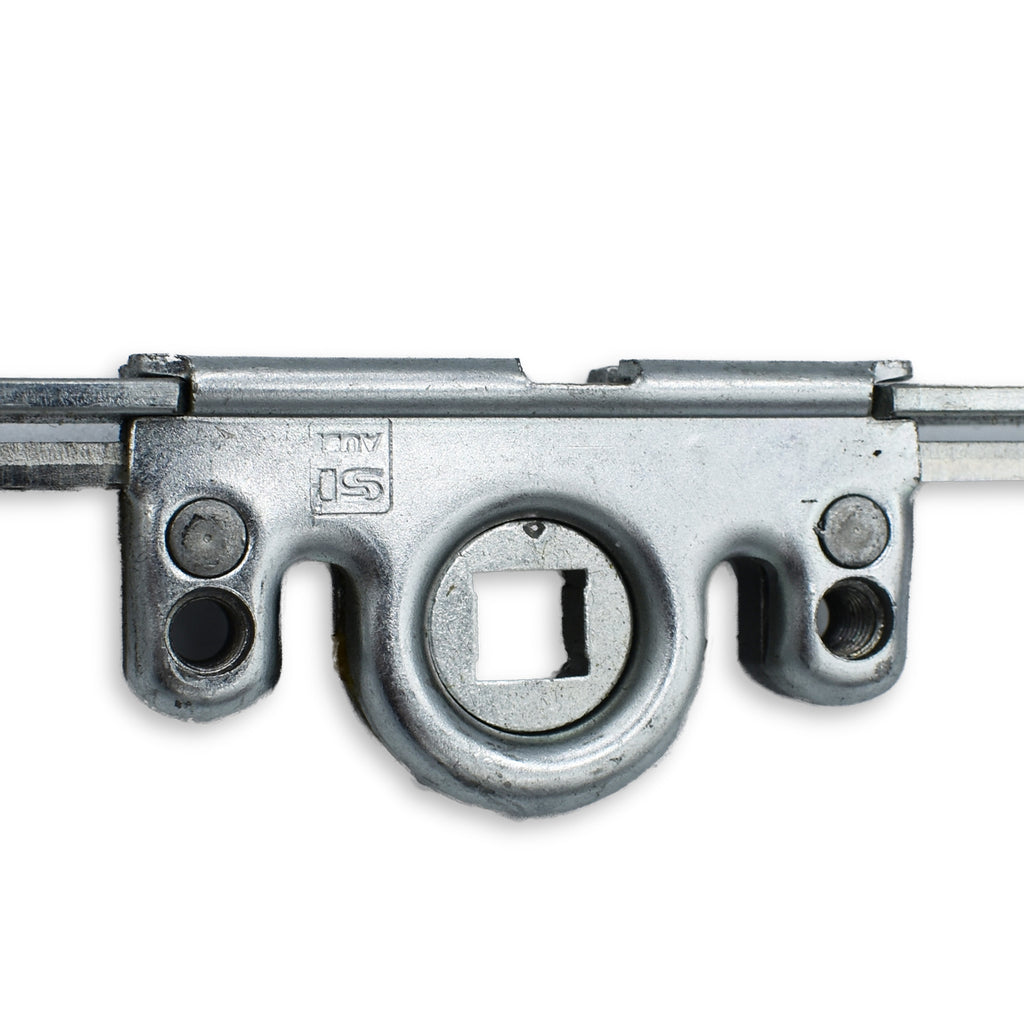

SI Siegenia Tilt and Turn Drive Gear Window Lock Mechanism

Regular price £19.99 £0.00



These SI Siegenia tilt and turn drive gear mechanism's replace the old yellow coloured SI Siegenia drive gear mechanism's.

This SI Siegenia tilt and turn gearbox/mechanism has a 15mm backset comes in a few different sizes, to indentify the correct tilt and turn gearbox size you require you will notice markings stamped on the tilt and turn gearbox mechanism.

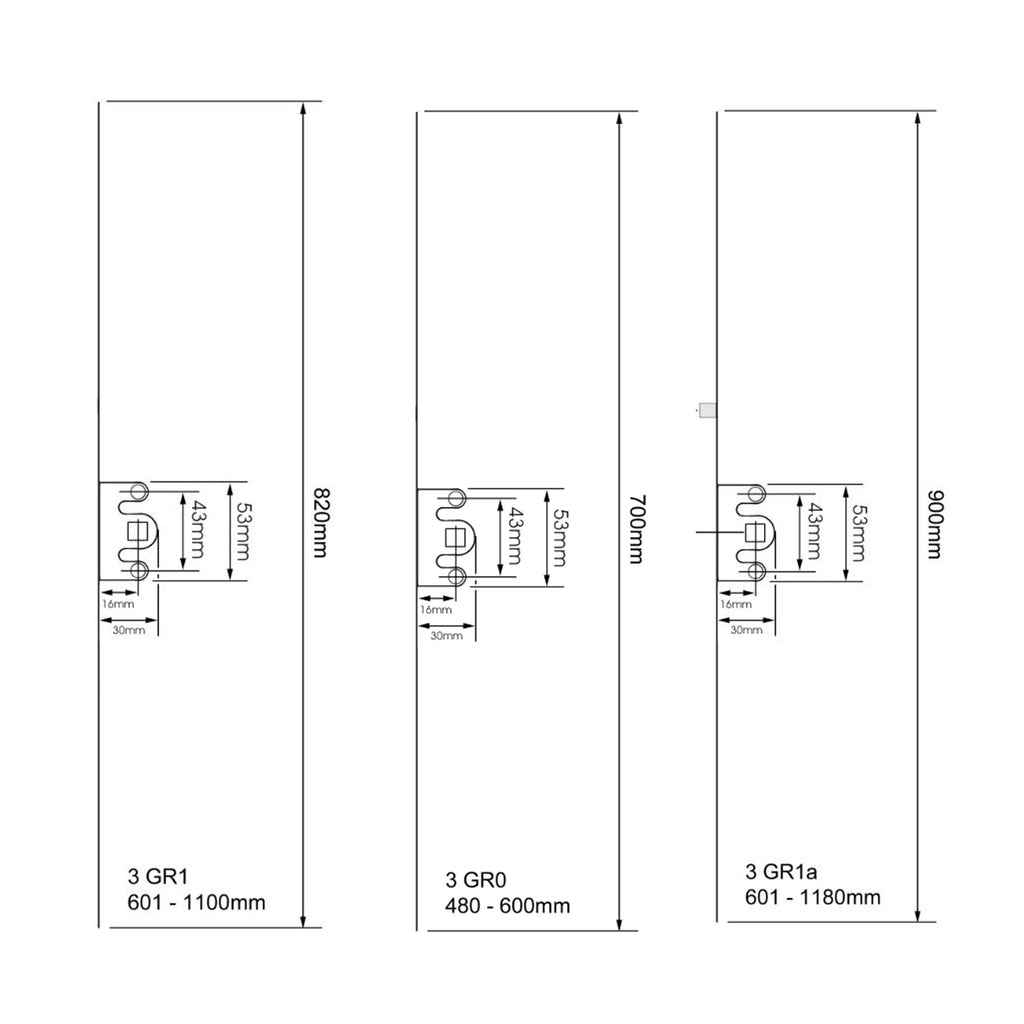

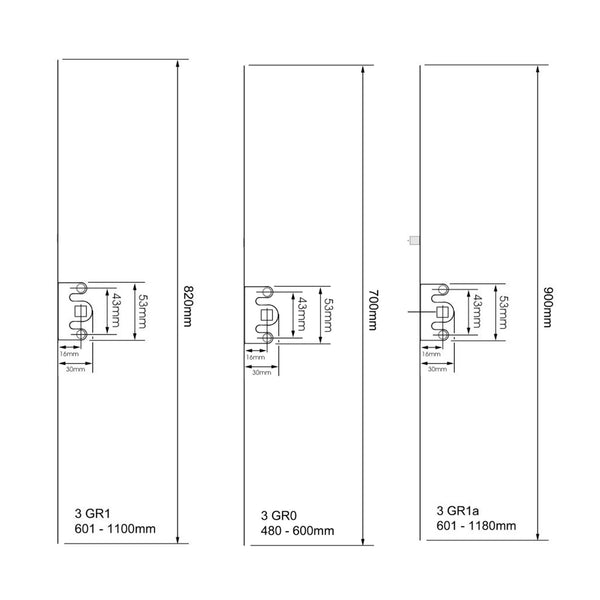

SI Siegenia tilt and turn gearbox/mechanism rebate height size guide
SI Siegenia tilt and turn gearbox mechanism  GR-0 = 480mm - 600mm
SI Siegenia tilt and turn gearbox mechanism  GR-1 = 601mm - 1100mm





SI Siegenia tilt and turn gearbox mechanism  GR-1a = 680mm - 1180mm

SI Siegenia tilt and turn gearbox mechanism  GR-2 = 1000mm - 1460mm
SI Siegenia tilt and turn gearbox mechanism  GR-3 = 1461mm - 1920mm
SI Siegenia tilt and turn gearbox mechanism  GR-4 TL= 1880mm - 2380mm
Please make sure you select the correct size that suits your requirments when ordering. Measure your rebate height of the window and choose the drivegear mechanism that will suit that size, for example if your rebate height measures 980mm choose the GR1a as this will fit between the rebate height sizes shown above.
