Multipoint 2 Hook Refurb Kit – 35mm or 45mm Backset – Multipoint Lock Repair Set

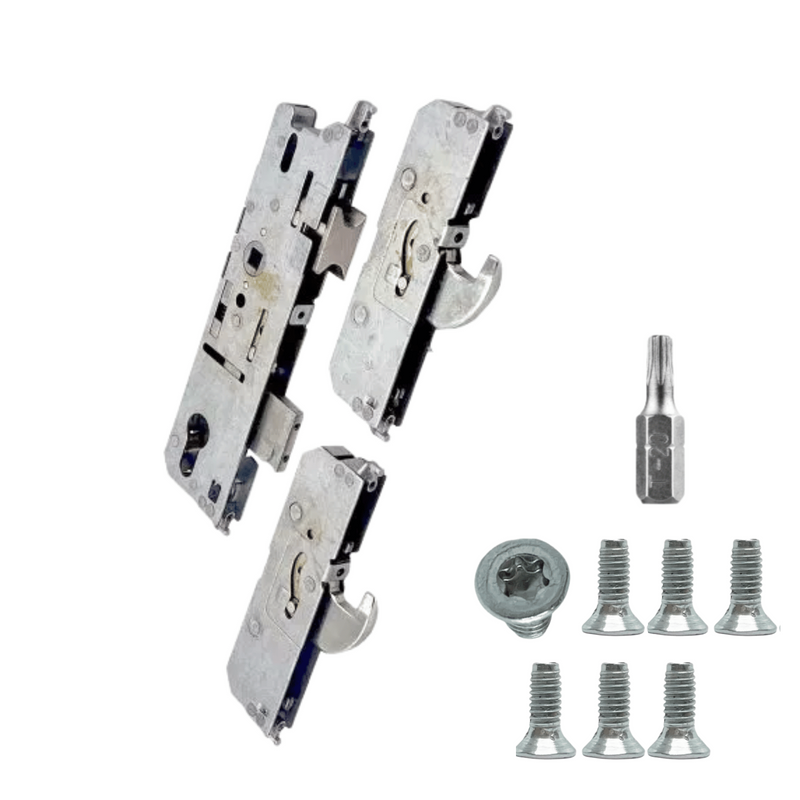

What's Included?

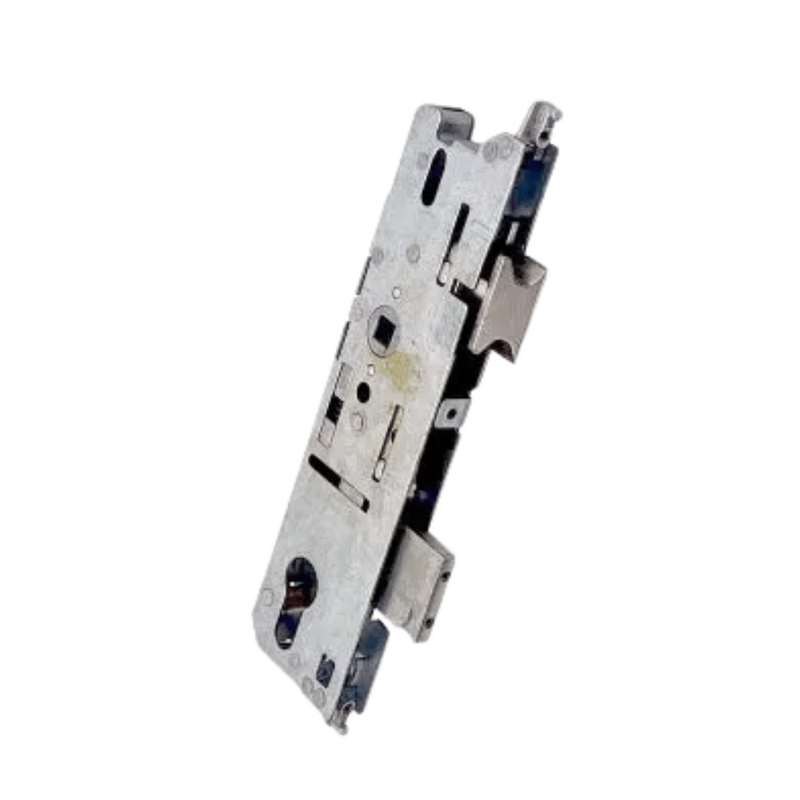

• 1 x Central gearbox with latch & deadbolt

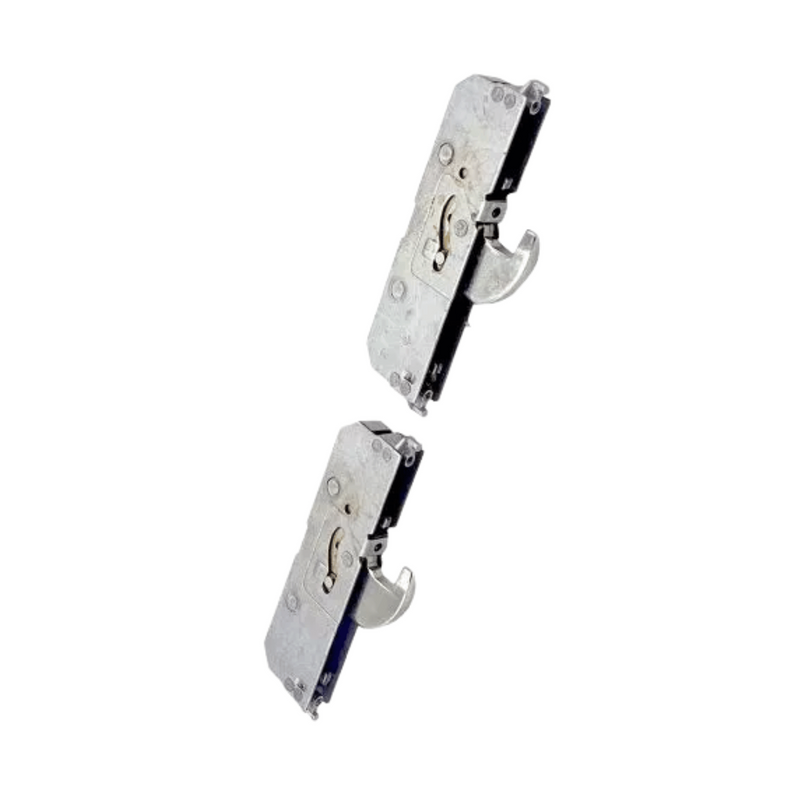

• 2 x Small hook cases (opposing direction)

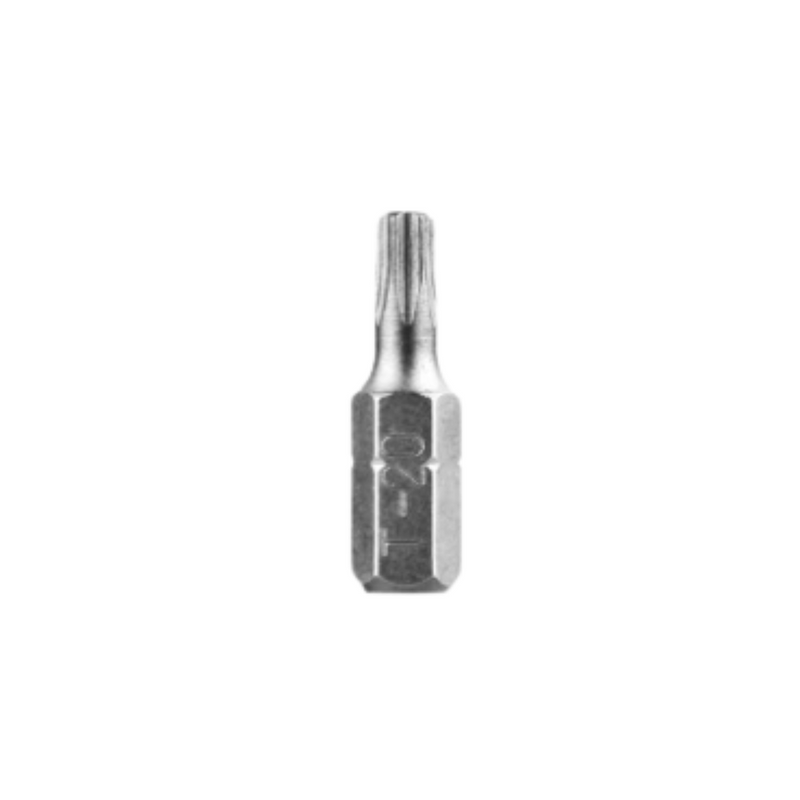

• 1 x T20 Torx bit

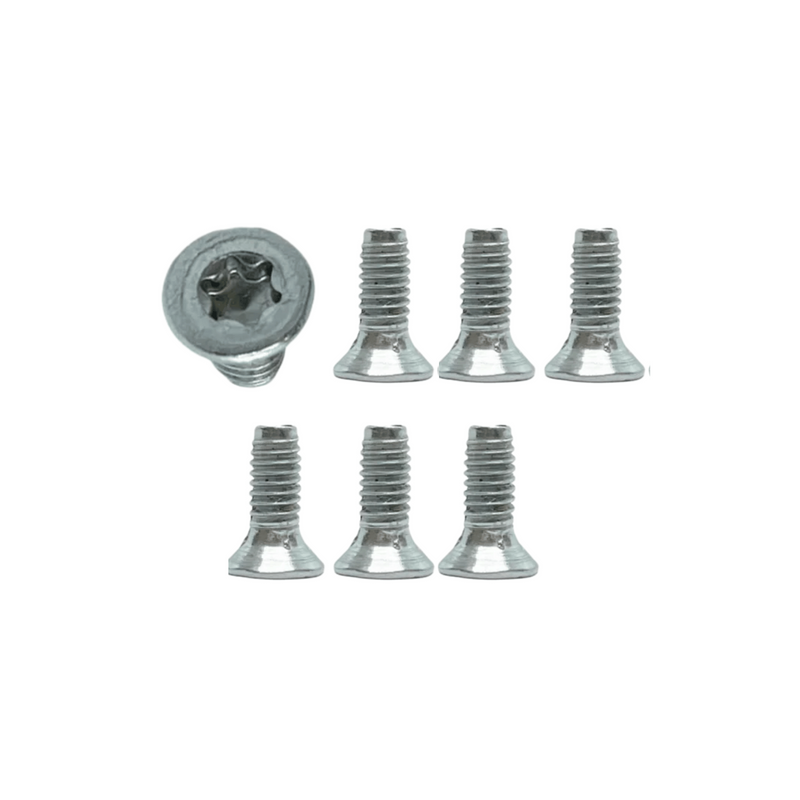

• 7 x M4.0 Grub Screws

Product Information

This professional-grade refurbishment kit is designed to restore Fuhr Multisafe 856 or 859 multipoint door locking systems that feature a latch and deadbolt centre gearbox with two opposing hookbolt locking points.

Ideal for locksmiths, maintenance teams, and mobile installers, this compact repair kit offers a practical solution to common failures in multipoint door locks. It comes in a box no larger than a pizza box, making it easy to store in a van or mobile toolkit.

Most multipoint lock issues are caused by faults in the gearbox, locking points, or spindle follower, while the faceplate and drive rods typically remain in good condition. This refurbishment kit includes all the essential bolt-on components needed to replace those critical moving parts, allowing for a complete mechanical overhaul without the need to source or fit a full-length replacement.

With this modular repair system, there's no need to identify specific model numbers or wait for deliveries. Simply select the right kit based on the backset and locking configuration, transfer the new parts to the original faceplate, and reinstall the lock – all in a single visit.

This streamlined approach minimizes downtime, eliminates return appointments, and avoids the hassle of transporting bulky replacement locks. It's a time-saving, cost-effective, and environmentally responsible alternative to replacing the full locking mechanism.

Key Features

• Compatible with Fuhr Multisafe 856 and 859 multipoint locking systems
• Replaces latch and deadbolt centre case and two opposing hookbolt cases
• Compact packaging – ideal for van stock and mobile repair services
• Eliminates the need for full-length lock replacements and follow-up visits
• Suitable for uPVC, aluminium, timber, and composite doors
• Supports more sustainable lock repairs by reducing waste and emissions

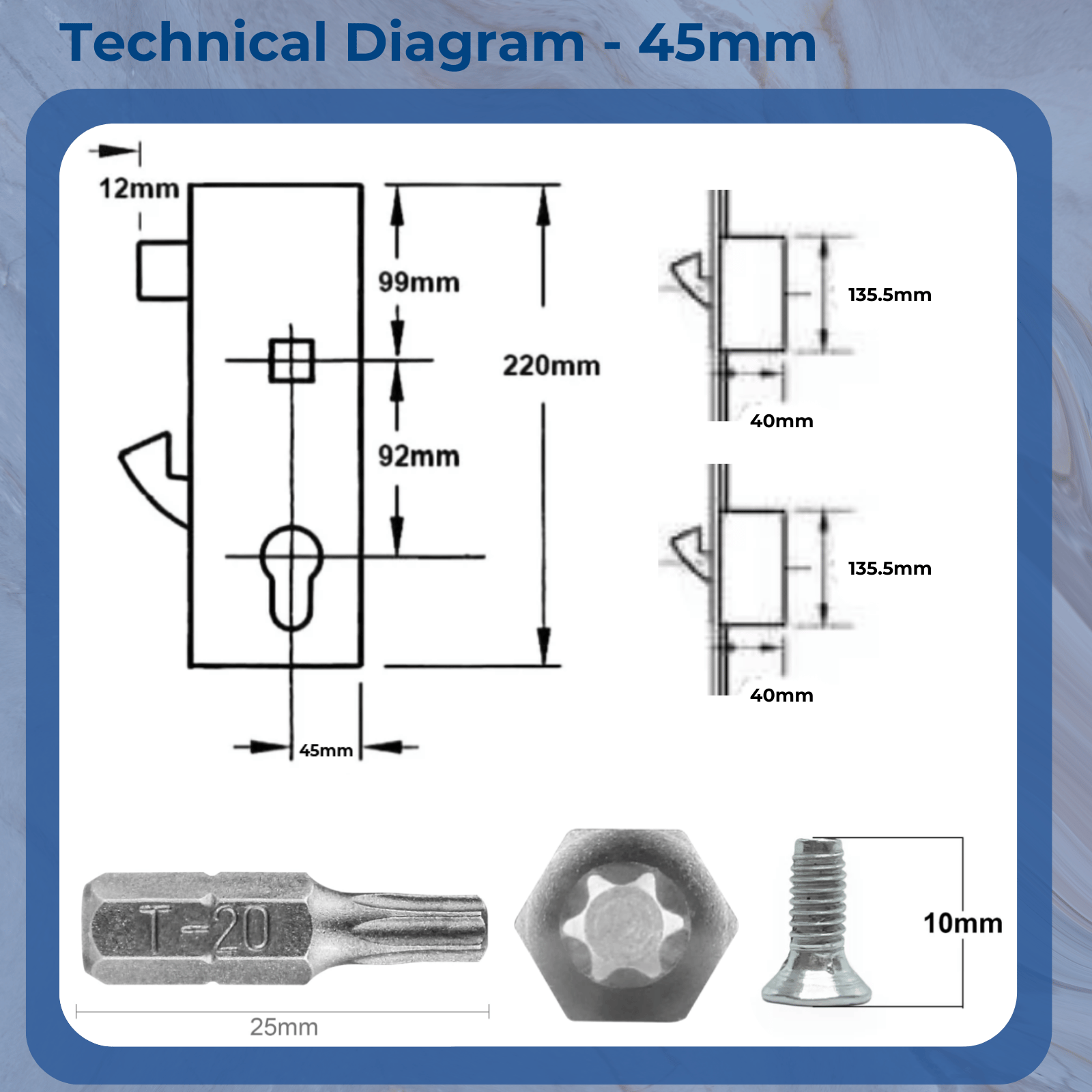

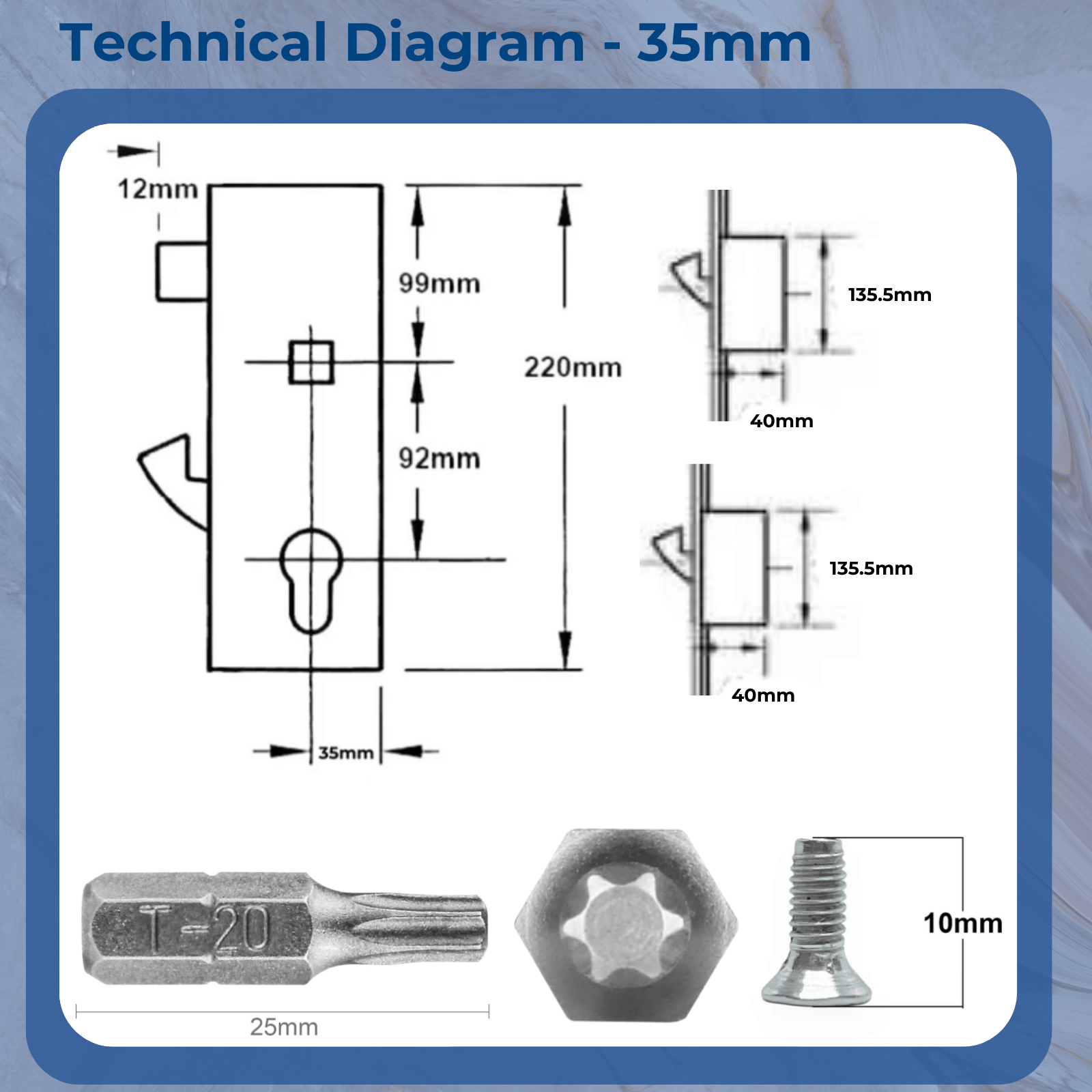

Product Specifications

• Manufacturer Compatibility: Fuhr
• Backset: Select from dropdown
• Centres (PZ): 92mm
• Spindle Size: 8mm
• Spindle Type: Single spindle
• Hookbolts: 2 (opposing direction)
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation Type: Select from dropdown
• Handing: Non-handed (suitable for left or right-handed doors)
• Door Compatibility: uPVC, aluminium, timber, composite
