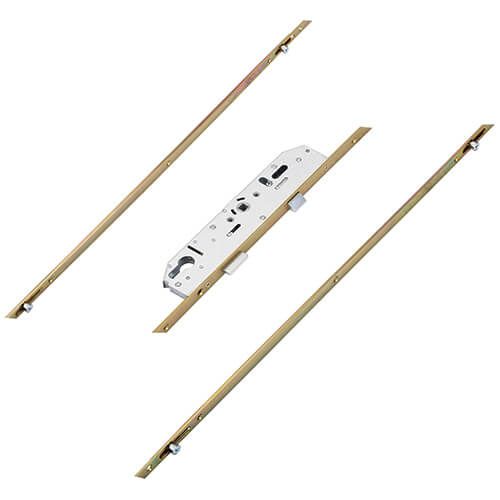

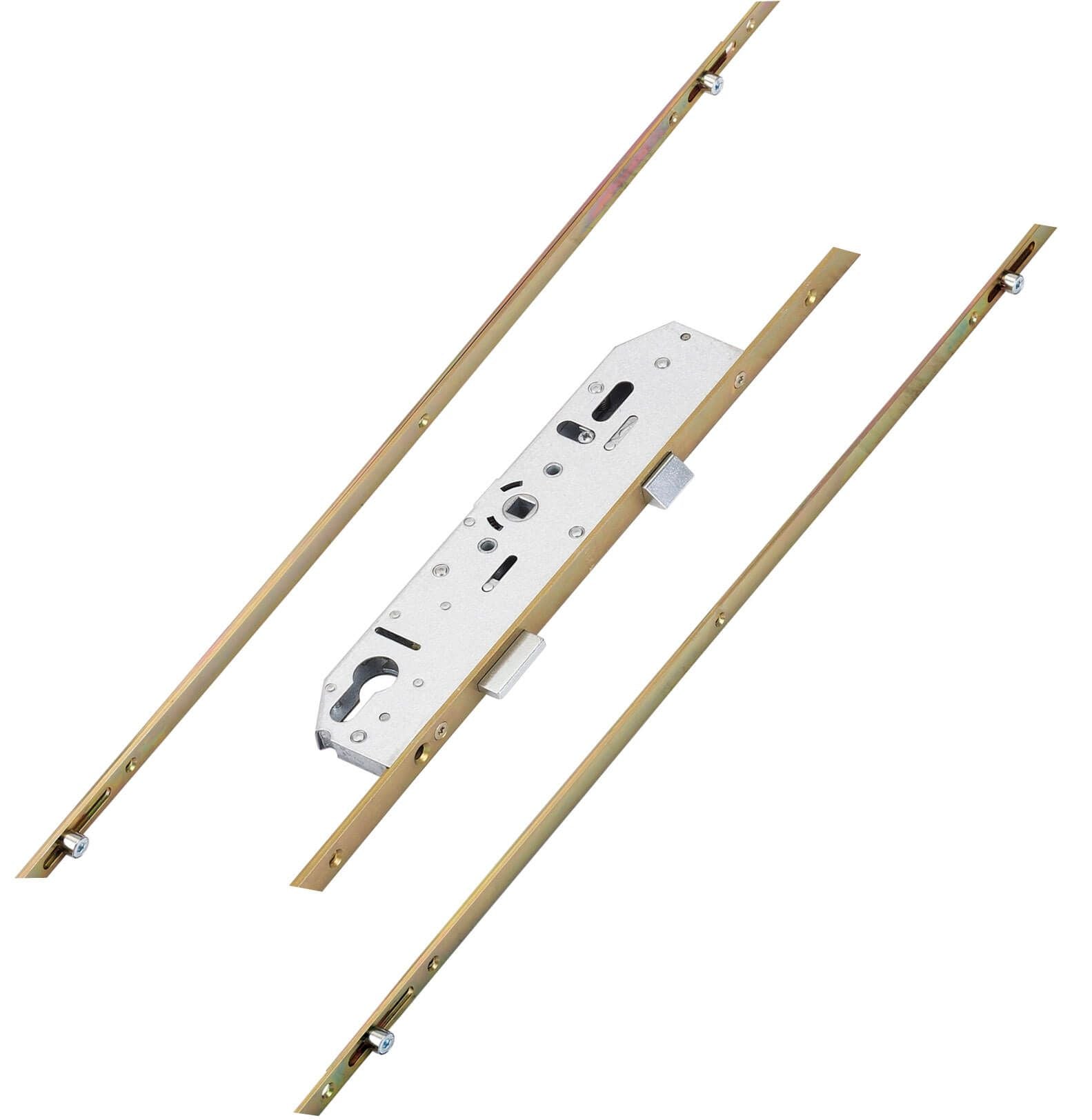

Mila Latch Deadbolt 4 Rollers Lift Lever 35mm Backset

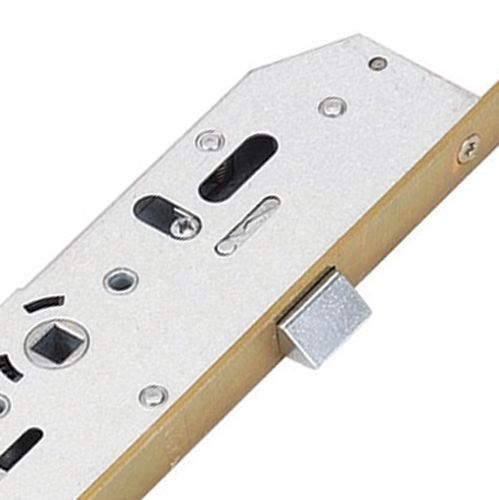

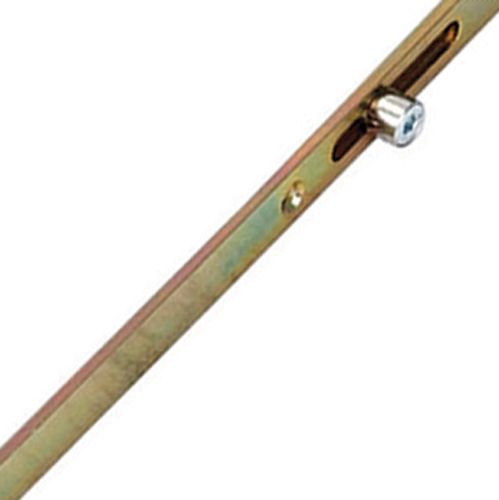

This 4 roller features a latch and deadbolt but the rollers are in the same location as the normal 4 roller lock.
Operation: Lift lever.


Latch reversal: Undo the screw in the side of the local case to remove the latch, reverse, reinsert and replace the screw.

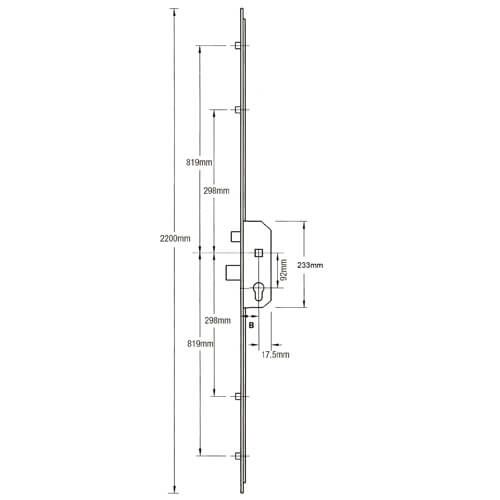

Technical Information-

Centres: 92mm
Case height: 2200mm
Case depth: 35mm Backset + 17.5mm
Overall length: 2200mm
Distance between outer rollers: 1638mm
Distance between inner rollers: 596mm
