Maco

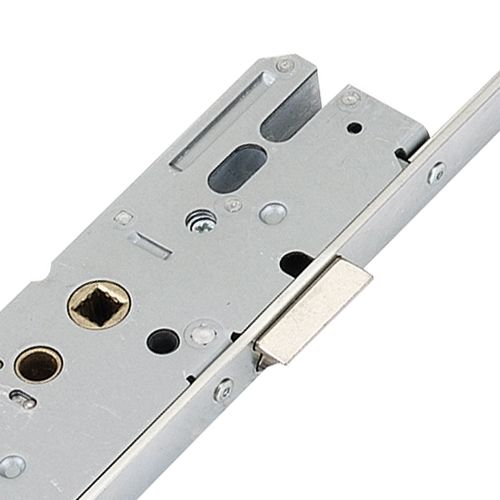

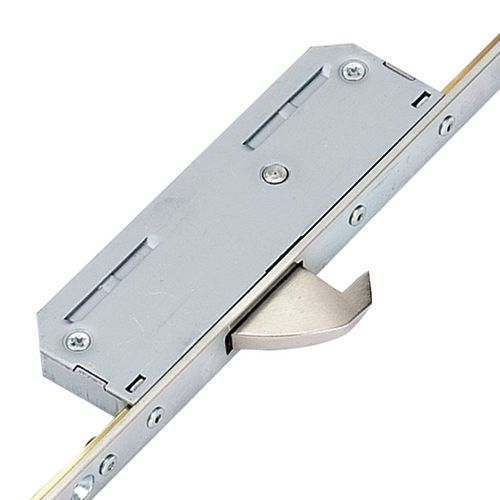

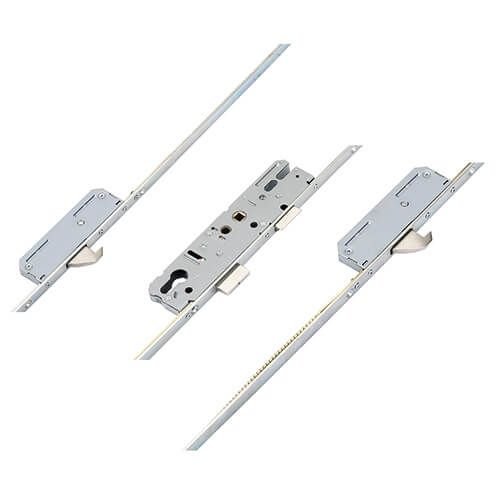

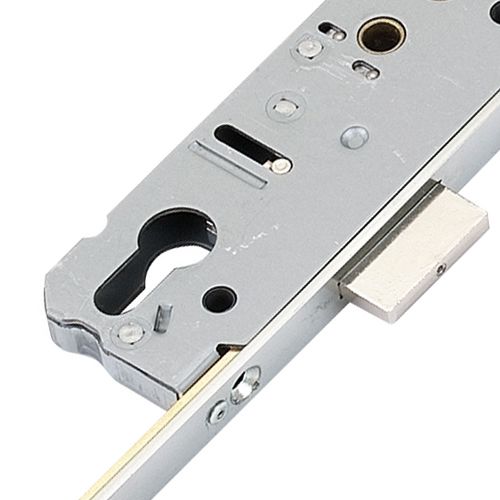

Maco Latch Deadbolt 4 Mushrooms Lift Lever 35mm Backset

Regular price £68.87 £0.00
Shipping calculated at checkout.
This Maco 4 roller lock has changed over the years and features the I.S. roller cam but will replace most Maco 4 rollers made since 2001.
Operation: Lift lever.


Latch reversal: Push in the square button on the side of the case, remove the latch, reverse and reinsert.

Technical Information

Centres: 92mm
Case height: 226mm
Case depth: Backset + 18mm
Overall length: 2400mm
Distance between outer rollers: 1635mm
Distance between inner rollers: 870mm
