Product Information

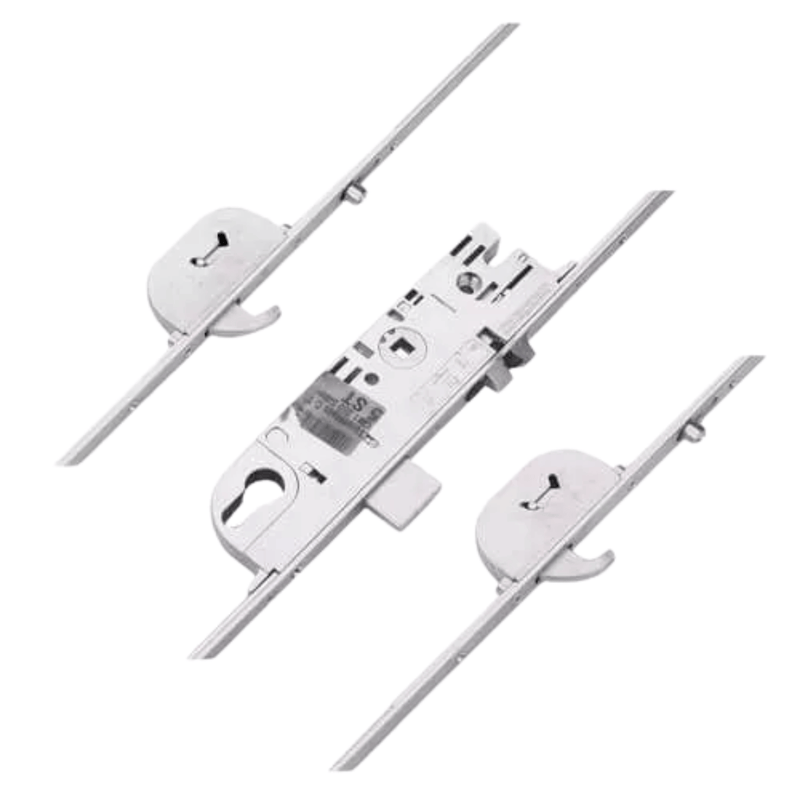

The Maco Protect C-TS multipoint door lock offers a high-security configuration featuring 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. Designed for use with uPVC and aluminium doors, it uses a split spindle operation for flexible functionality.
Introduced in 2012, the C-TS range replaced the older G-TS models. However, these are not direct replacements due to the repositioned locking points. The C-TS lock supports both lift lever and split spindle operation, offering a versatile upgrade to enhance security.
Identify a Maco C-TS by the Maco logo on the faceplate and its distinctively rounded gearbox and hook cases. Faceplate options include 16mm, 20mm, and Top Hat styles — the latter providing a clean finish for euro groove setups.
For added protection, these locks include uni-directional hooks and hook-and-anti-lift pin configurations. Anti-lift pins resist forced entry and require matching keeps.
The included i.S. cams (compression rollers) are made from hardened steel and help pull the door tightly against the frame, preventing warping, dust, and water ingress. They are also adjustable by around 1mm for optimal sealing.
🔧 Note: Due to differing locking point positions from the G-TS series, installation may require keep repositioning or routing adjustment.
How It Works – Split Spindle Operation
To lock the door:
- Lift the handle to engage the locking mechanisms.
- Turn the key to secure the deadbolt and all locking points.
To unlock the door:
- Insert and turn the key to release the locking system.
- Push the handle down to disengage all points and retract the latch.
Latch Reversal: Press the serrated button on the gearbox side, remove the latch, rotate it, and reinsert.
Product Features
- Split spindle operation for lift lever or night latch use
- 2 hook bolts – uni-directional or hook + anti-lift pin
- 2 adjustable i.S. compression rollers
- Rounded 202mm gearbox design
- Soft split latch (variant dependent)
- Endurance tested to 100,000 cycles
Product Specifications
- Manufacturer: Maco
- Backset: Select from drop-down – How to measure
- Centres (PZ): 92mm – How to measure
- Faceplate Width: Select from drop-down – How to measure
- Spindle Size: 8mm split spindle
- Locking Points: 2 rollers, 2 hooks, 1 deadbolt, 1 latch
- Main Gearbox: Latch & deadbolt combo
- Operation Type: Select from drop-down – Operation guide
- Handing: Non-handed (suitable for left or right hinged doors)
- Material Compatibility: uPVC doors, Aluminium doors

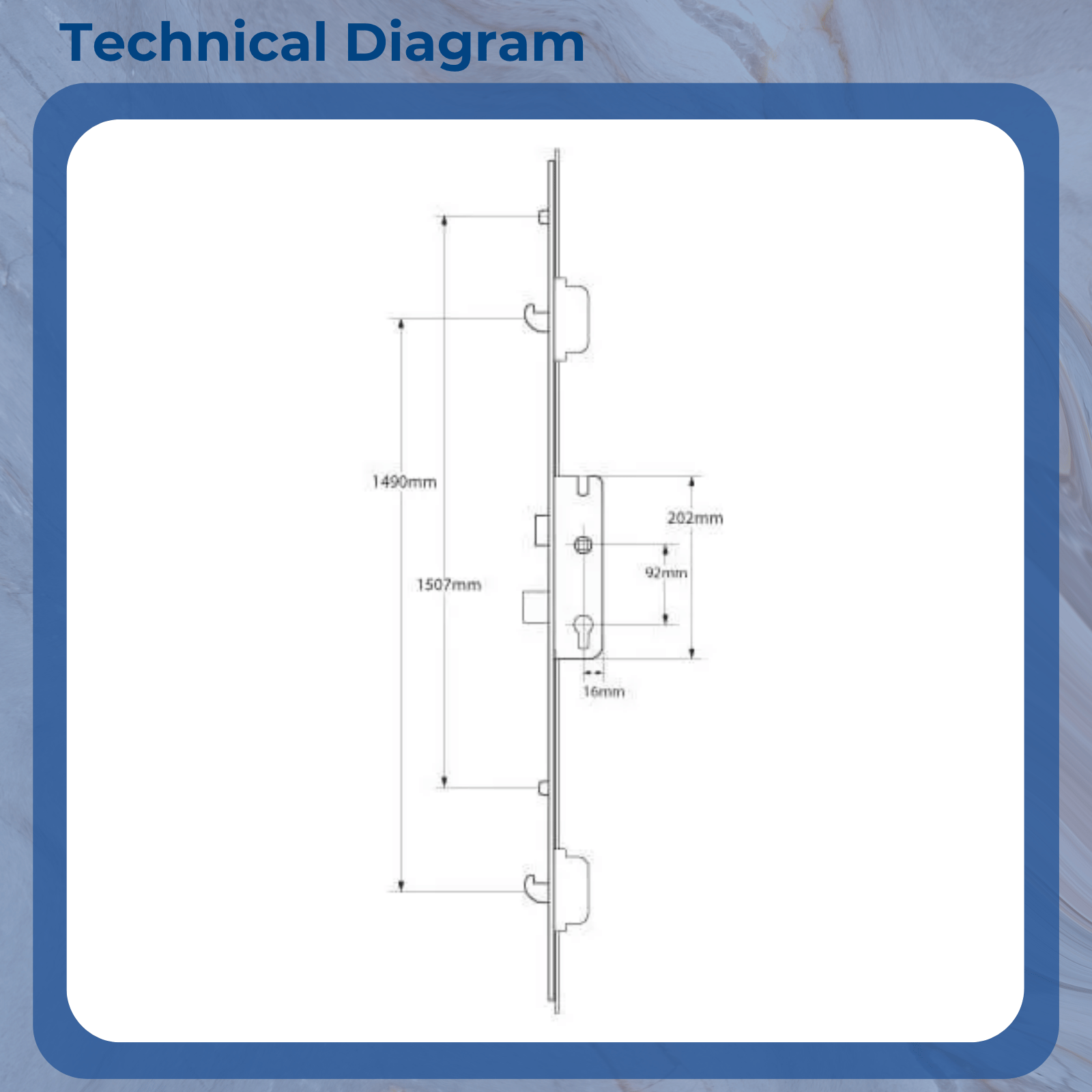

Locking Point Distances
- Top Hook to Spindle: 730mm
- Bottom Hook to Spindle: 760mm
- Top Roller to Spindle: 827mm
- Bottom Roller to Spindle: 680mm
- Distance Between Inner Hooks: 1490mm
- Distance Between Outer Rollers: 1507mm
- Overall Lock Height: 2200mm
We also stock a full range of Maco C-TS accessories, including keeps, spindles, handles, and hardware for a complete installation.
Need help identifying your lock or finding a compatible replacement? Get in touch — we're here to help.
