Yale Lockmaster uPVC Window Shootbolt Gearbox - Extended 20mm or 22mm Backset

by Yale

Original price £16.49 - Original price £16.49
Original price
£16.49
£16.49 - £16.49
Current price £16.49
Size: 22mm

Yale · Window shootbolt gearbox · Extended

The replacement Yale extended window gearbox, in 20 or 22 mm backset

The current Yale shootbolt gearbox for casement windows, in the extended version with 7.7 mm mushroom cams. Choose a 20 mm or 22 mm backset. It takes the place of the original Lockmaster Yale extended gearbox.

What has changed
This now supersedes the original.

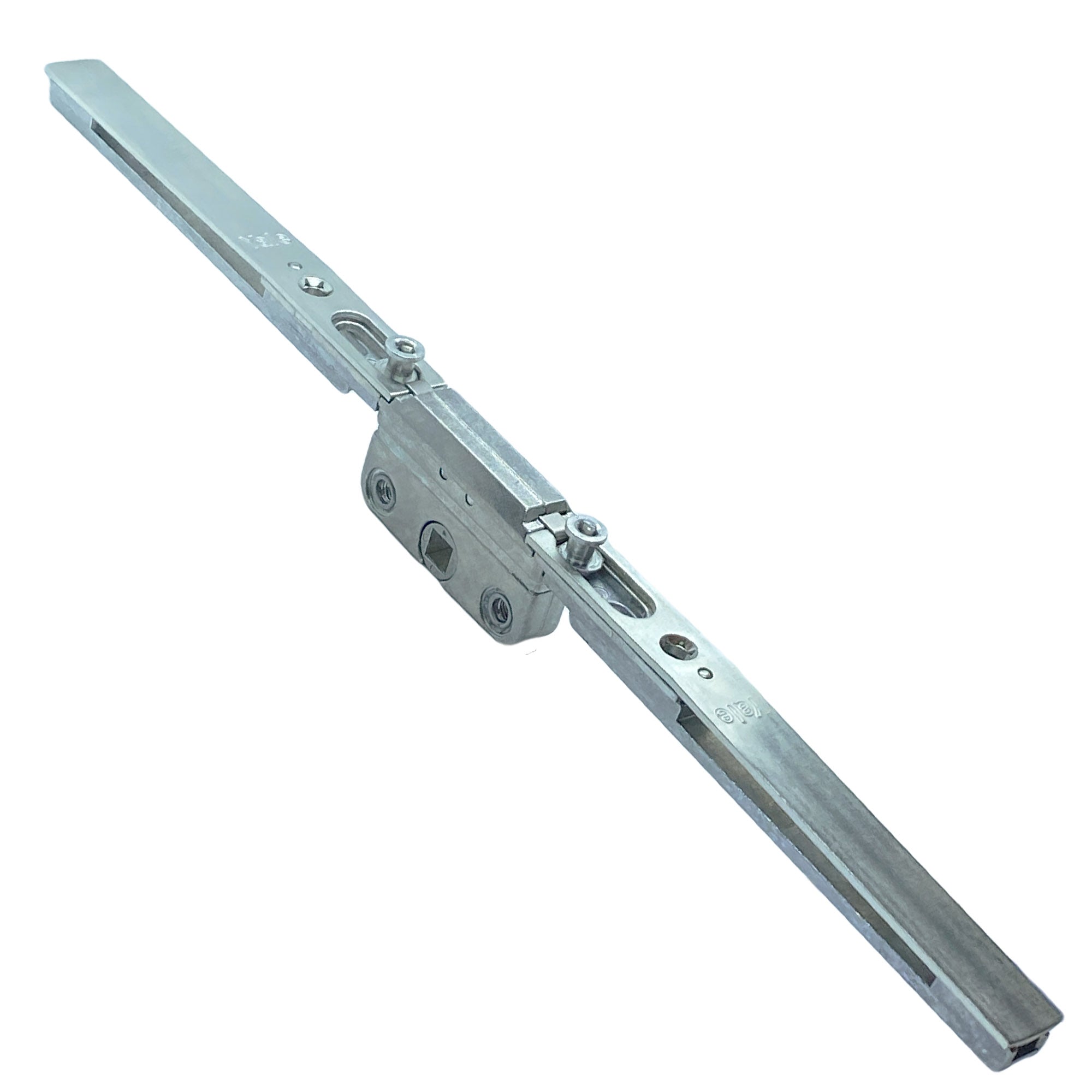

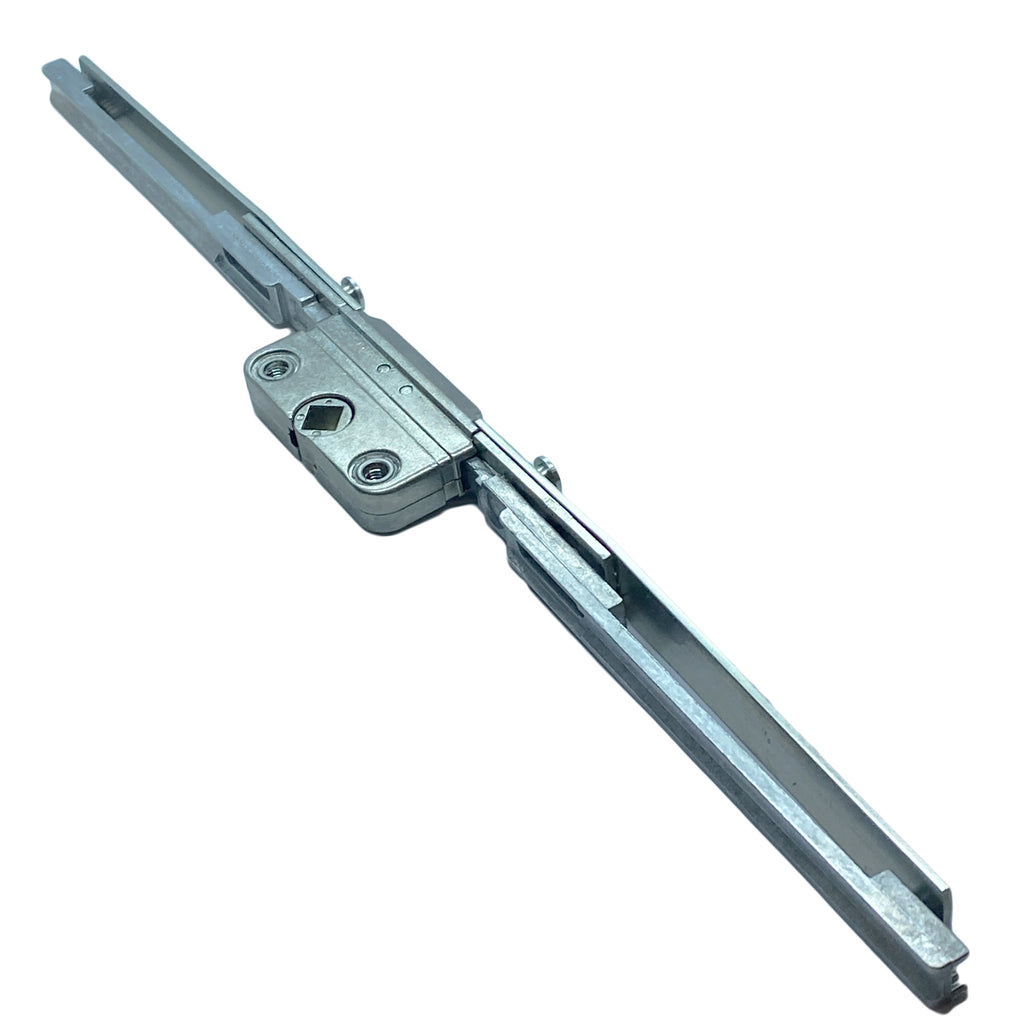

Original Lockmaster Yale gearbox→Replacement Yale gearbox

Yale has replaced the original gearbox with a new design, so the part you receive will not look the same as the one you take out. Match it by its measurements, the backset and the cam height, and not by its appearance.

Backset
20 or 22 mm
Back of rail to spindle centre
Cam height
7.7 mm
Back of rail to top of cam
Version
Extended
Paired with extendable rods
Guarantee
10 years
Mechanical, from Yale

Choose your option

Option Backset Cam height
22mm 22 mm 7.7 mm
20mm 20 mm 7.7 mm

How to measure

Take both measurements on your existing gearbox, from the back of the rail. That is the side that sits flat against the window.

1
Backset
Measure from the back of the rail to the centre of the square spindle hole, then choose the 20 mm or 22 mm option to match.
2
Cam height
Measure from the back of the rail to the top of the mushroom cam head. Both options are 7.7 mm.
3
Handle fixing holes
The two handle fixing holes on this gearbox are at 43 mm centres. Check that yours are the same.
Check the fit before you order

Match the backset and cam height to your existing gearbox. If you are changing only the gearbox, we cannot tell from a description whether it will connect to the rods already in your window.

Not sure? Send a photo of your existing gearbox, showing the back of the rail and the cams, on WhatsApp or by email to sales@upvc-store.com and we will confirm the right part.

Specification

Brand Yale
Type Shootbolt window gearbox, extended
Backset 20 mm or 22 mm
Cam height 7.7 mm
Cams Mushroom cams, one each side of the gearbox
Cam adjustment Compression is set with a 4 mm hex key
Handle fixing centres 43 mm
Suits PVC, aluminium and timber casement windows, as stated by Yale
Extension rods Sold separately. Yale pairs the extended gearbox with its extendable rods
Guarantee 10-year mechanical guarantee from Yale

What you get

In the pack
✓One Yale extended shootbolt gearbox with 7.7 mm cams, in the backset you choose
Sold separately
–Extension rods
–Keeps
–Window handle

Guarantee and testing

✓10-year mechanical guarantee from Yale
✓Corrosion resistance to BS EN 1670 Grade 4, with 240 hours of neutral salt spray testing
✓Cycle tested to 50,000 cycles
✓Meets the test requirements of PAS 24:2022 when tested as a complete window
✓Complies with BS EN 13126-4:2022
✓Secured by Design approved

As stated by Yale for this shootbolt range. The lock is permanently lubricated. Keep it clear of building debris, and check the fixing screws and gasket compression every five years.
