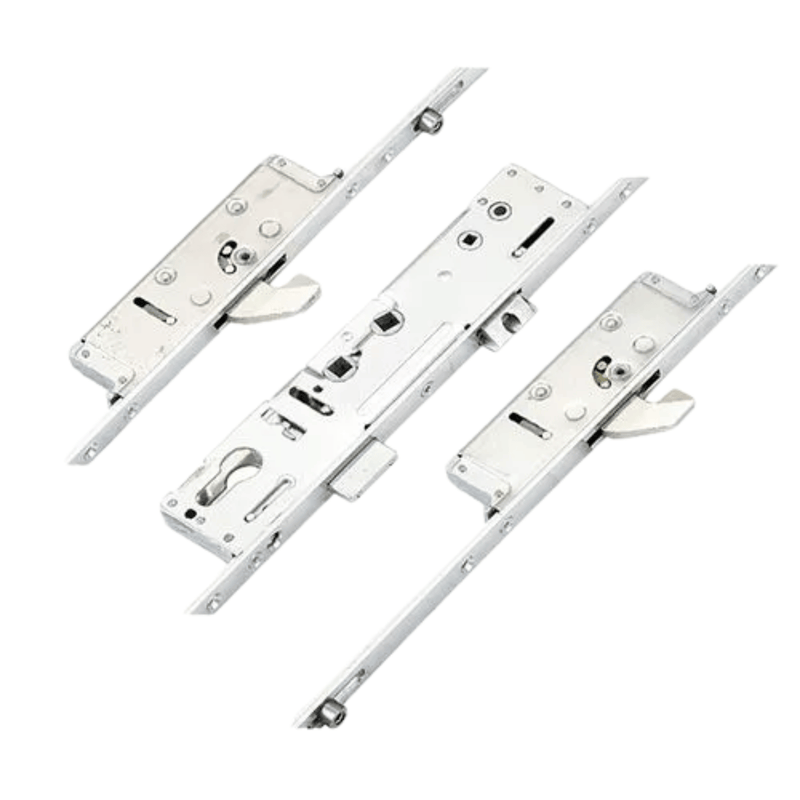

Lockmaster Multipoint Door Lock – Latch, Deadbolt, 2 Hooks, 2 Rollers – 365mm Top Hook to Spindle – Double Spindle or Lift Lever Operation
Lockmaster Multipoint Door Lock – Latch, Deadbolt, 2 Hooks, 2 Rollers – 365mm Top Hook to Spindle – Double Spindle or Lift Lever Operation
Upgrade your uPVC or aluminium door with the Lockmaster Standard multipoint door lock, engineered for high security and smooth operation. This lock features a robust locking configuration, including 2 rollers, 2 hooks, 1 deadbolt, and 1 latch—making it ideal for residential or commercial properties seeking reliable security.
Why Choose Lockmaster Multipoint Locks?
Lockmaster door locks are among the UK's best-selling multipoint systems, now part of the Yale family alongside Millenco and Mantis. Their build quality and versatility make them ideal for both replacement and upgrade applications.
Despite numerous variants in the range, we stock the most popular models. Slight modifications (typically 40–50mm) to your door's prep may be necessary if your existing Lockmaster model has different locking point positions.
Even if the Lockmaster logo isn't visible on the faceplate, upward-throwing hooks (sometimes with an anti-lift pin) and the large 228mm gearbox help easily identify these locks once removed from the door.
Lockmaster Gearbox Specifications
- Available in 35mm or 45mm backsets
- Double spindle: 92mm and 62mm PZ centres (unsprung – for use with sprung handles). Supports lift lever or nightlatch operation.
- Single spindle: Sprung – lift lever operation only
- Gearbox height: 228mm
- Latch & deadbolt height: 30mm each
- Spacing between latch and deadbolt: 65mm
- 3 screw holes: 109mm spacing top-to-middle and middle-to-bottom
- Older versions: May include a small spindle hole near the latch
- 45mm versions: Have extended latch/deadbolt and a cover plate for conversion
Hook, Roller & Deadbolt Details
- Hooks: Throw upwards, case height: 136mm
- Deadbolt: Chamfered edge, case height: 154mm
- Rollers: Aid in compression and prevent weather ingress or door warping
- Adjustability: Rollers are adjustable ±1mm for optimal fit
Operation Guide – Lift Lever
To Lock:
- Close the door and lift the handle to engage locking points
- Turn the key to lock the points and main deadbolt
To Unlock:
- Turn the key to release the lock
- Push handle down to disengage all locking points and retract the latch
Tested to BS EN 1670:2007 Grade 4 (240 hrs. salt spray test), this lock resists corrosion even in harsh conditions.
We also stock a full range of compatible Lockmaster keeps, spindles, handles, and accessories.
Common Applications
- Suitable for uPVC and aluminium doors
- Used in both residential and commercial door systems
Product Specification
- Manufacturer: Lockmaster
- Backset: 35mm or 45mm (selectable)
- Centres (PZ): 92mm
- Spindle Size: 8mm
- Faceplate: Selectable
- Rollers: 2
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & Deadbolt
- Operation Type: Lift Lever or Double Spindle (selectable)
- Spindle Type: Single 8mm
- Handing: Non-handed

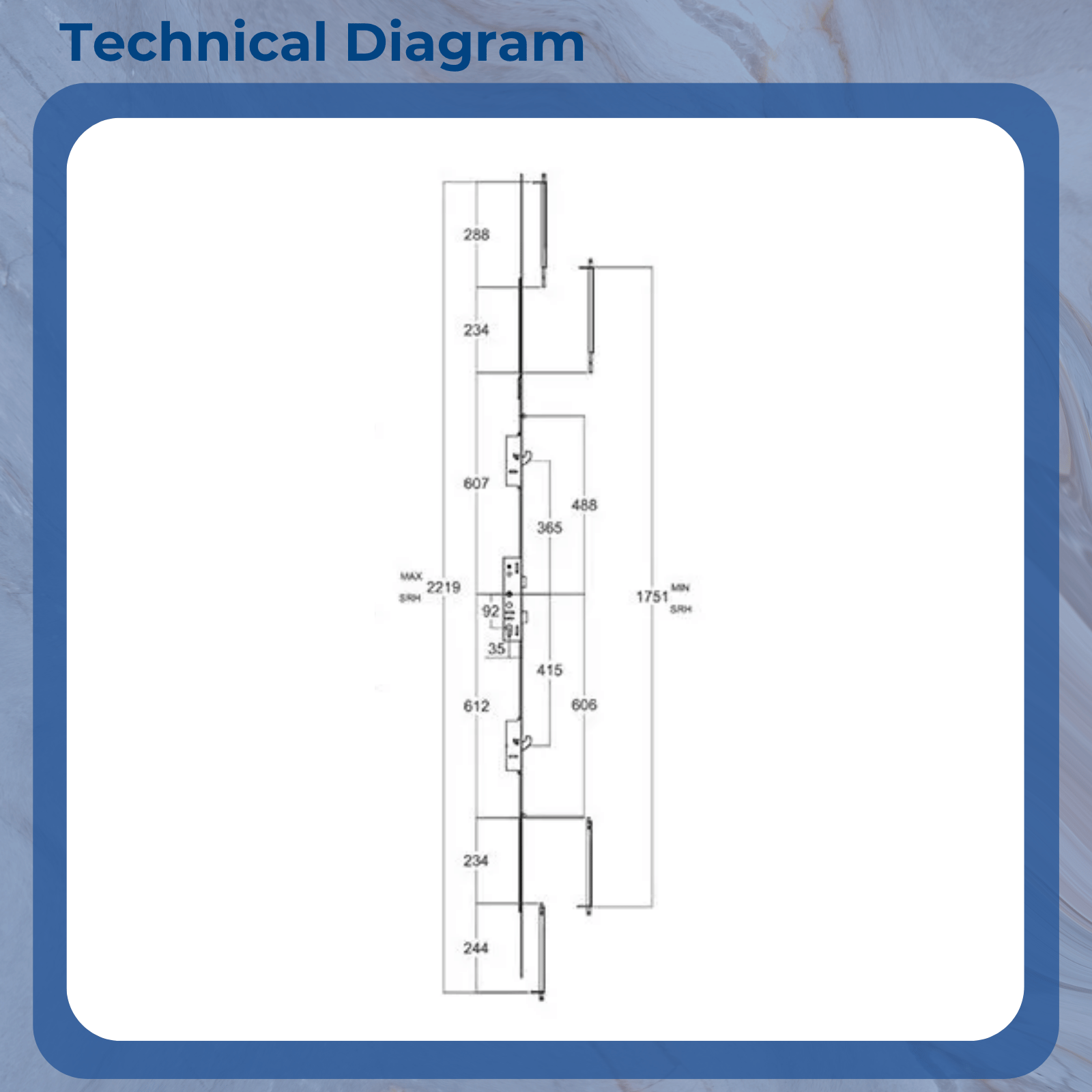

Locking Point Measurements
- Distance Between Inner Locking Points: 780mm
- Distance Between Outer Locking Points: 1094mm
- Top Hook to Spindle: 365mm
- Bottom Hook to Spindle: 415mm
- Top Roller to Spindle: 488mm
- Bottom Roller to Spindle: 606mm
- Overall Height: 2200mm
- Door Material: uPVC, Aluminium
