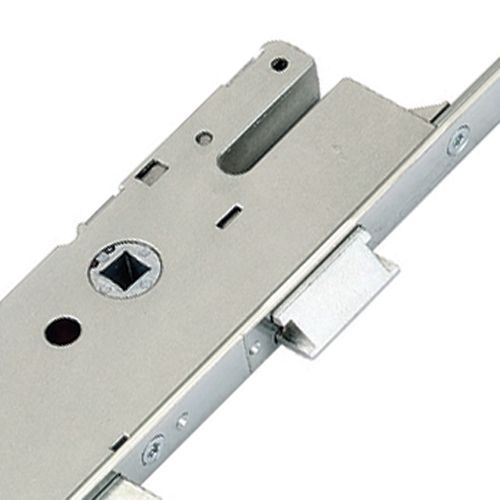

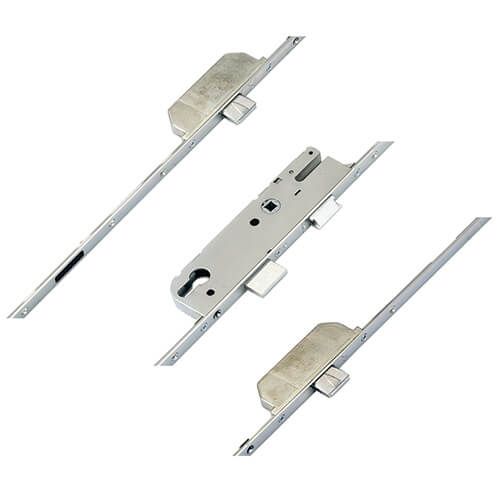

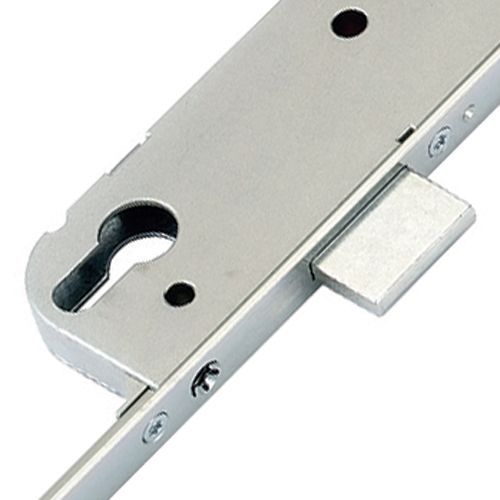

GU Latch Deadbolt 4 Rollers Key Wind

This key wind GU 4 roller lock features a 10mm spindle.

Backset: 35mm, 45mm, 55mm and 65mm

Centres: 92mm

Operation: Key wind.

Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

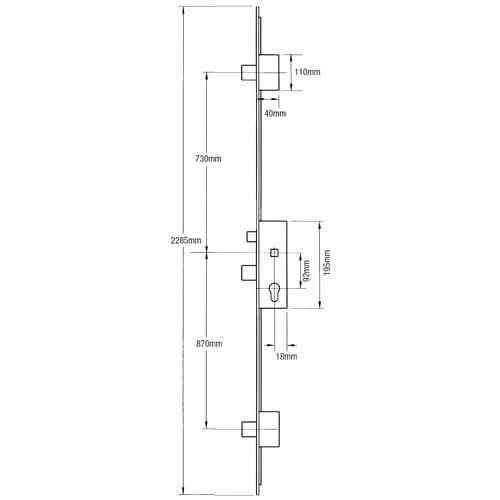

Technical Information-

• Centres: 92mm
• Case height: 195mm
• Case depth: Backset + 18mm
• Overall length: 2285mm
• Distance between outer rollers: 1610mm
• Distance between inner rollers: 670mm
