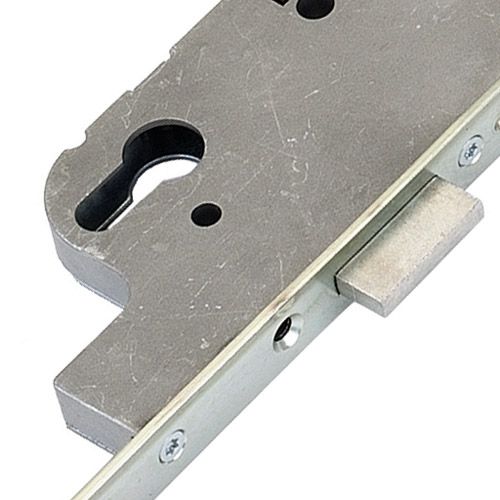

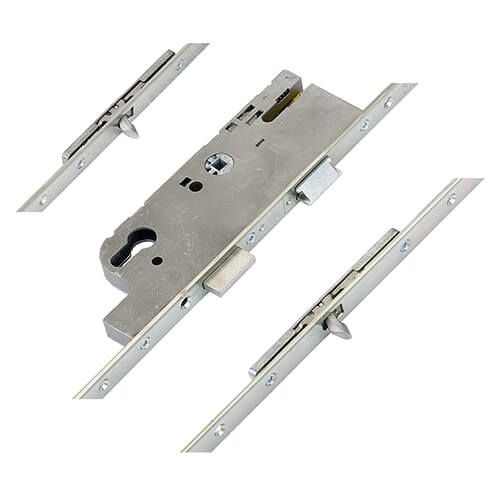

GU Ferco Tripact Latch Deadbolt 2 Tongue Hooks Lift Lever

Operation: Lift lever.

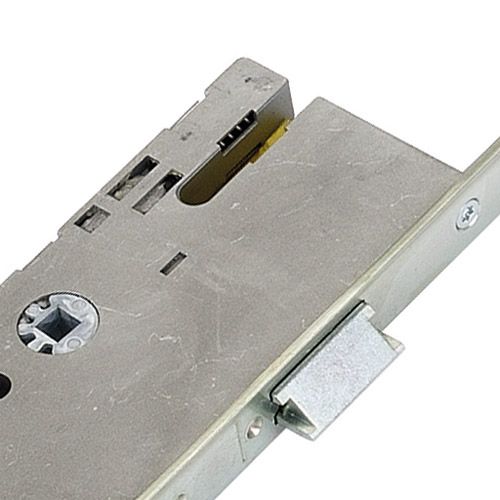

Latch reversal: Depending on date of manufacture either- Push the latch in to reveal a screw in side of case. Undo screw to remove the latch, reverse, reinsert and replace screw or Insert small flat bladed screwdriver in the small slot on side of case marked R/L. Push upwards to release latch, reverse and reinsert.

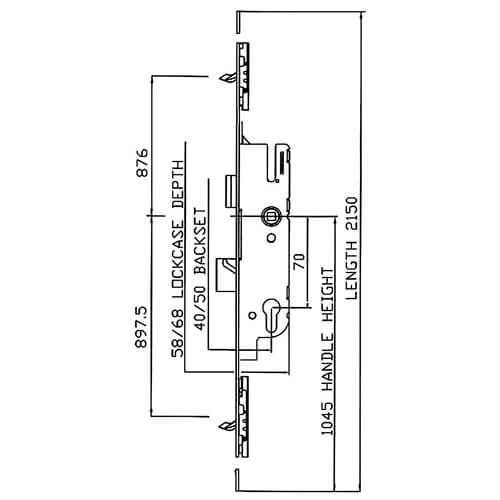

Technical Information-

• Centres: 92mm
• Case height:195mm
• Case depth: Backset + 18mm
• Overall length: 2150mm
• Distance between Tongue hooks: 1773mm
