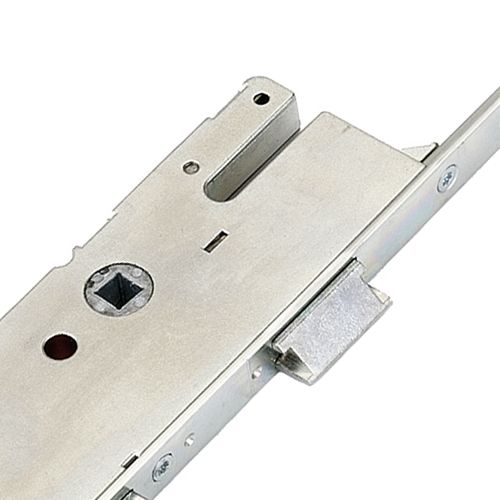

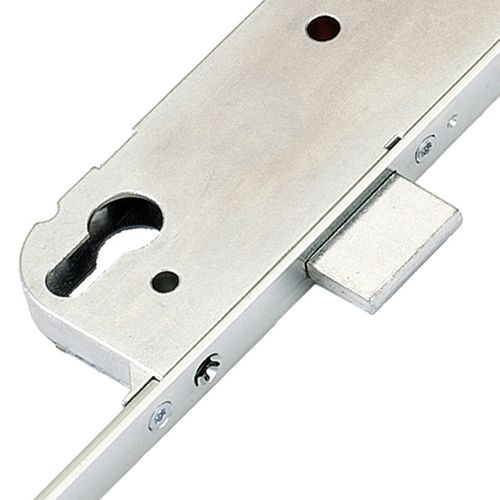

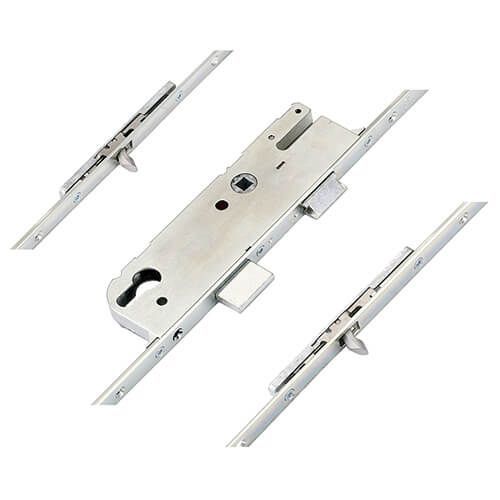

GU Europa Latch Deadbolt 2 Tongue Hooks Lift Lever

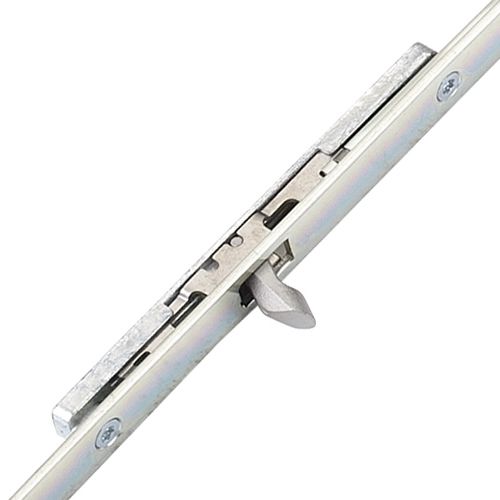

This lock features small tongues or flip hooks as opposed to the normal larger hookbolts.

Backset: 45mm and 50mm.

Centres: 92mm

Operation: Lift lever.

Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

Technical Information-

• Centres: 92mm
• Case height: 195mm
• Case depth: Backset + 17mm
• Overall length: 2285mm
• Distance between hooks: 1610mm
• Top hook to spindle : 739mm
• Bottom hook to spindle : 871mm
