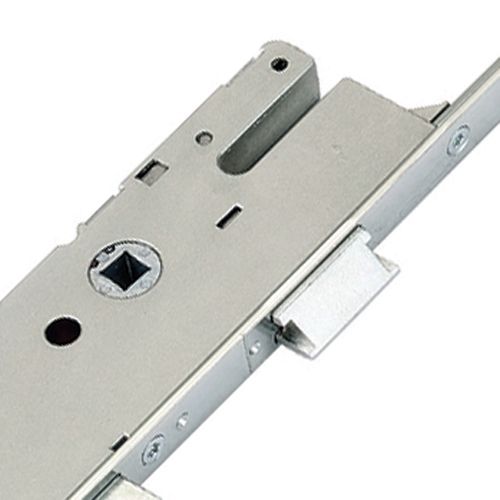

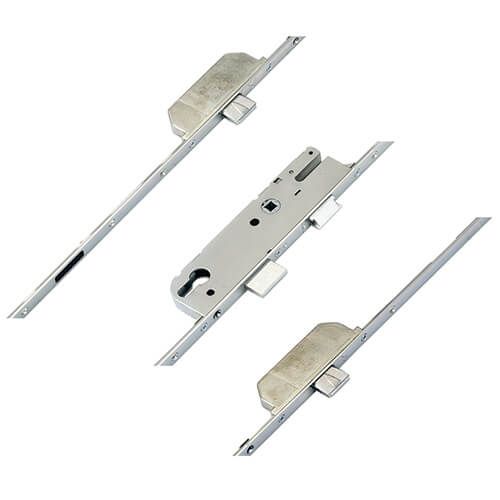

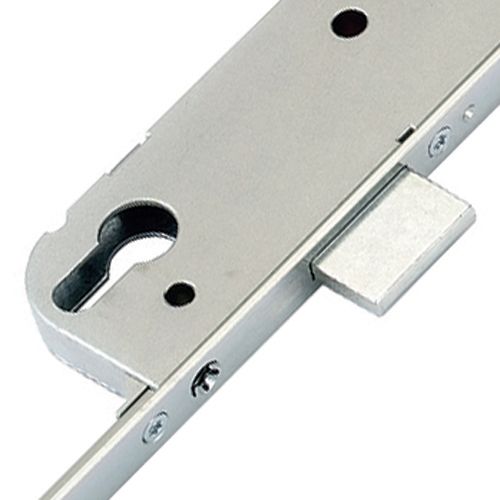

GU Europa Latch 3 Deadbolts Option 2 Lift Lever 35mm Backset

This version of the 2 deadbolt lock has 1600mm between the deadbolts.

A narrow version with 1228mm between the deadbolts is also available.

Backset: 35mm.

Centres: 92mm.

Operation: Lift lever.

Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

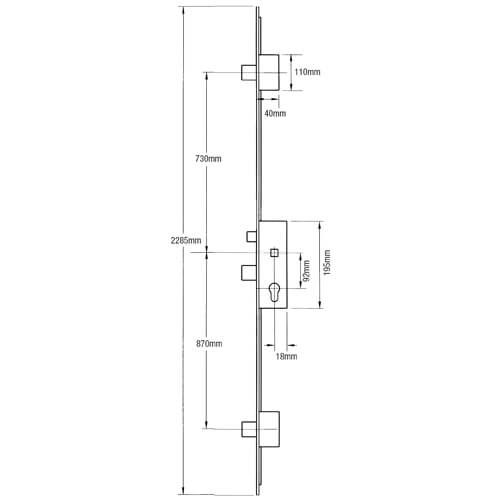

Technical Information-

• Centres: 92mm
• Case height: 195mm
• Case depth: Backset + 18mm
• Overall length: 2285mm
• Distance between deadbolts: 1600mm
• Top deadbolt to spindle: 730mm
• Bottom hook to spindle: 871mm
