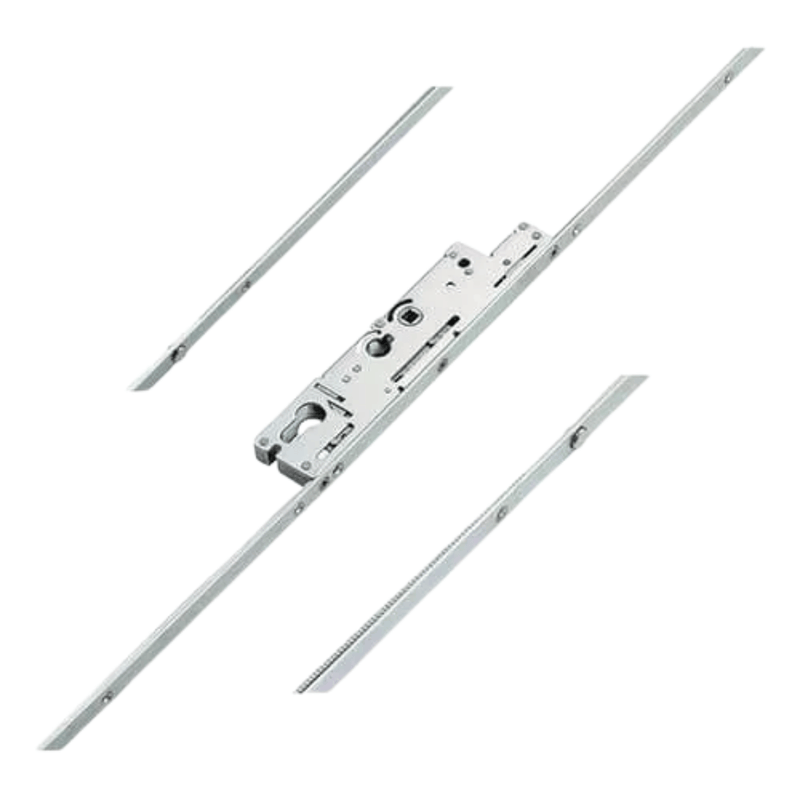

Fullex XL Passive Lift Lever Door Lock – High-Security Multipoint Locking System

The Fullex XL Passive multipoint door lock is specifically designed for the passive (secondary) door on French door sets, featuring no locking points. Compatible with uPVC and aluminium doors, it is part of Fullex’s latest, most secure XL lock range.

This passive lock includes fittings for top and bottom shootbolts that secure the secondary door leaf firmly to the frame when locked, working alongside the primary multipoint lock installed on the main door. This setup ensures enhanced security for double door configurations.

Operation – Lift Lever Mechanism

To lock the door:

• Lift the handle upward to engage the locking points.
• Turn the key to lock the shootbolts and the main deadbolt (if present).

To unlock the door:

• Turn the key to release the lock.
• Push the handle downward to disengage the locking points and retract the latch.

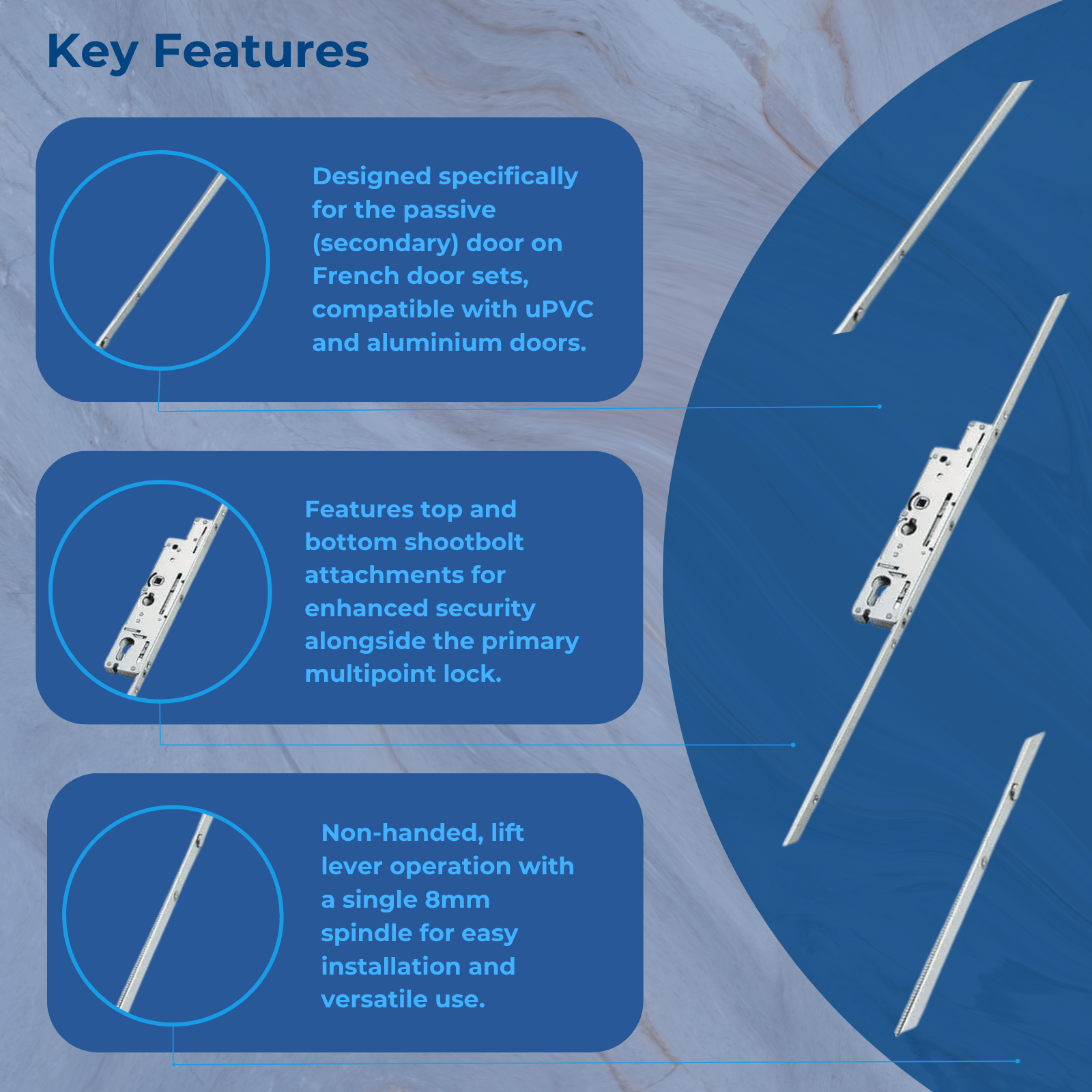

Key Features:

• Designed for passive doors on French door sets
• Includes attachments for top and bottom shootbolts
• Non-handed design – fits left or right doors
• Suitable for uPVC and aluminium door materials
• Compatible with a range of Fullex accessories including handles, keeps, and spindles
• Part of the high-security Fullex XL multipoint lock range

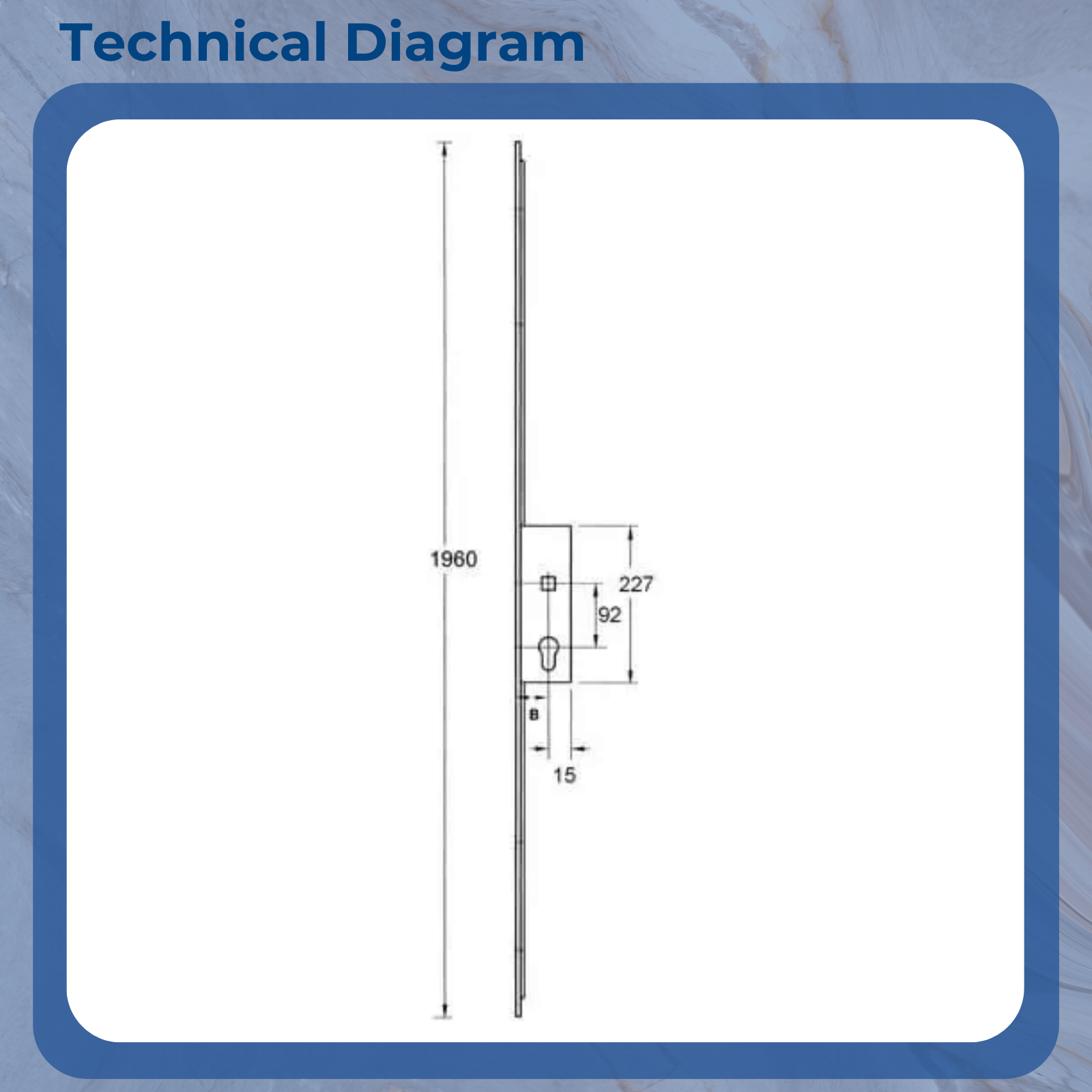

Product Specifications:

• Manufacturer: Fullex
• Backset: Selectable (see how to measure)
• Centres (PZ): 92mm (see how to measure)
• Faceplate: Selectable (see how to measure)
• Spindle Size: 8mm single spindle
• Main Gearbox: Passive lock
• Operation: Lift lever (selectable options available)
• Handing: Non-handed
• Lock Height: 1960mm
• Compatible Door Materials: uPVC, Aluminium
