Trojan

Fuhr Sliding Patio Door Handle 90mm 90PZ Double Glazing Inline Sparta Lever Pair

Regular price £17.48 £0.00
Shipping calculated at checkout.

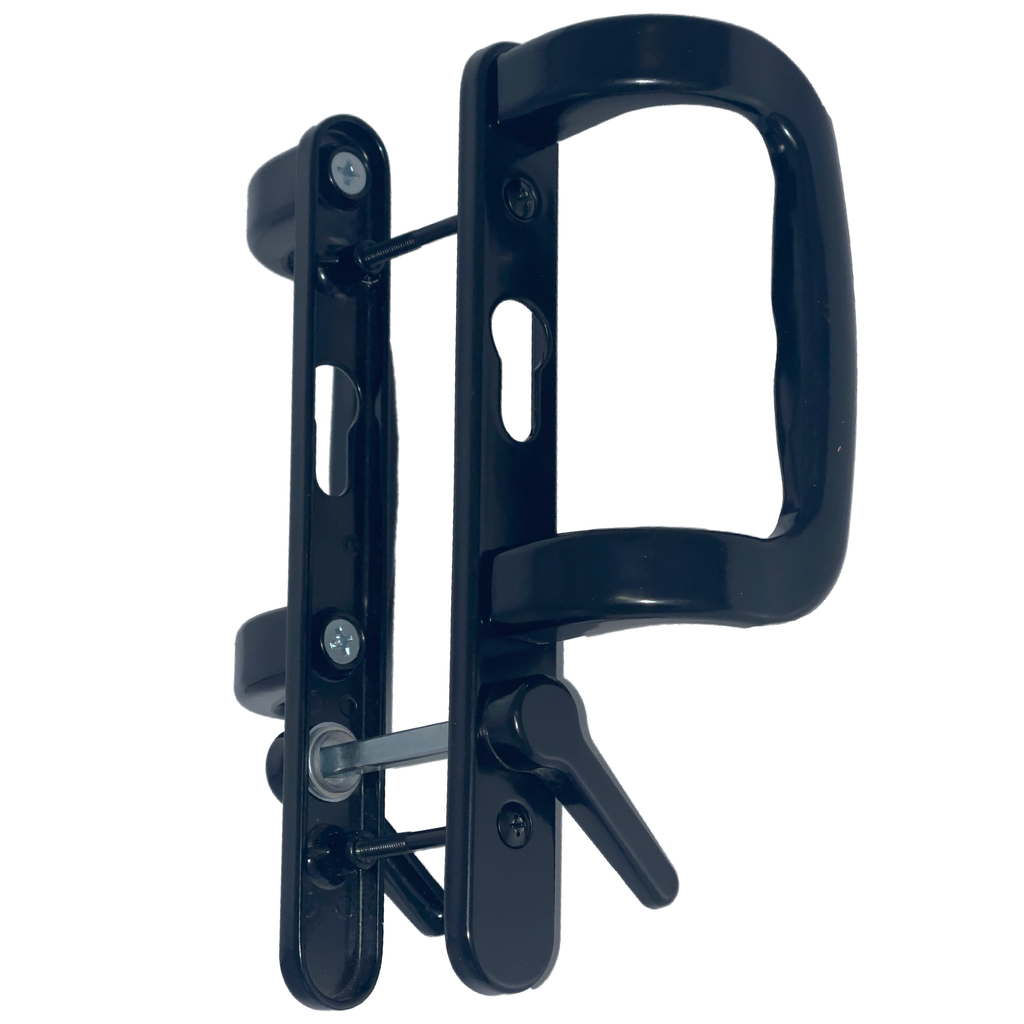

Our Fuhr Sparta patio door handles make Ideal replacements for worn or damaged handles fitted to Upvc sliding patio doors. These Patio Door handles have been designed with symmetrical grip allowing them to be reversed for right or left hand usage. To change the handing the handle can be unscrewed from the backplate and turned 180 degrees.

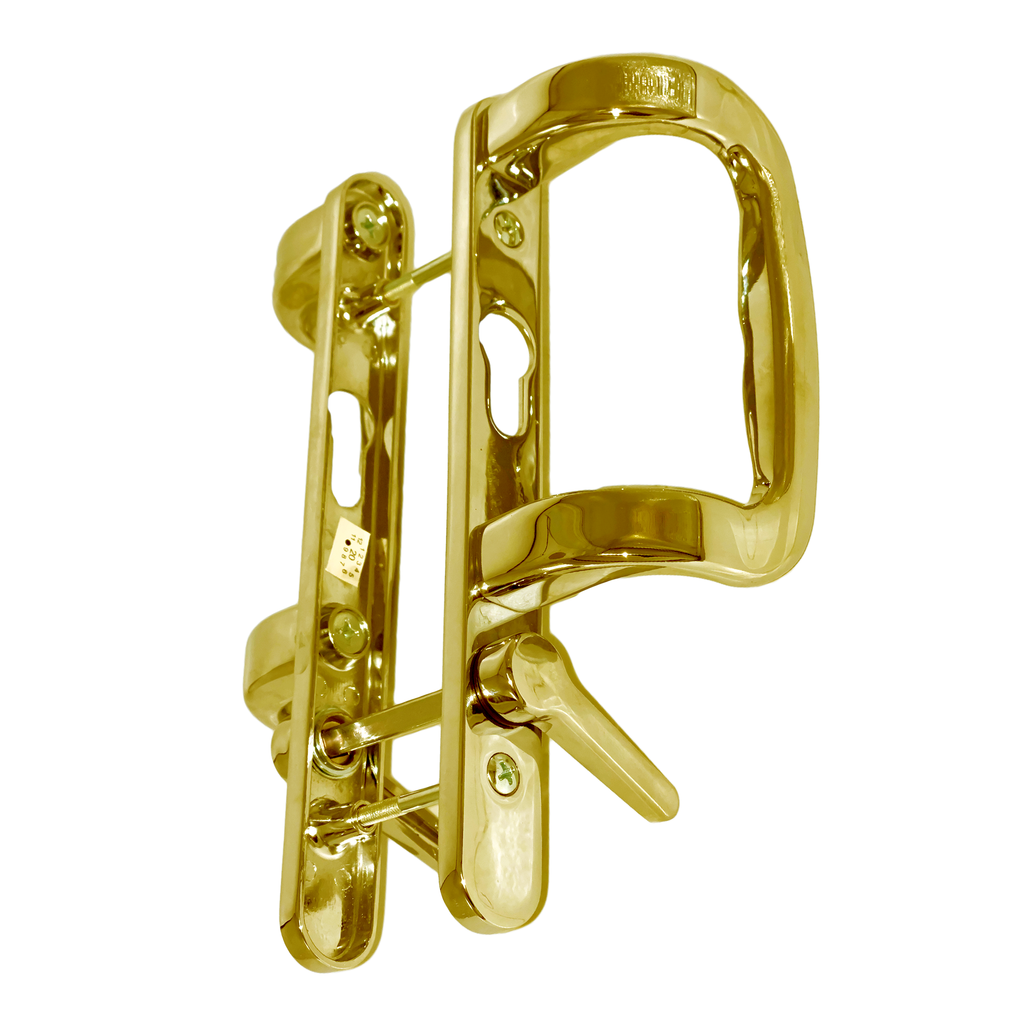

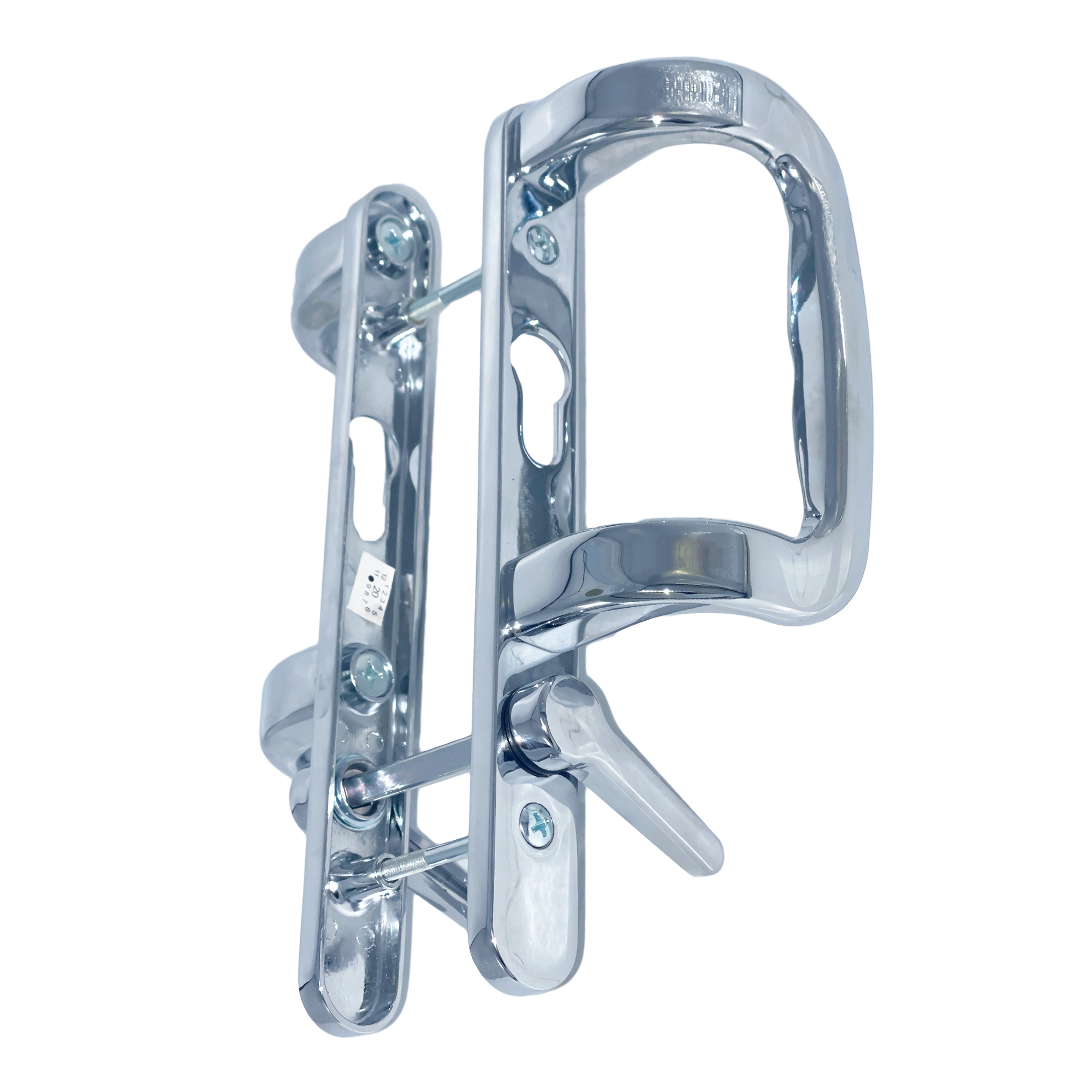

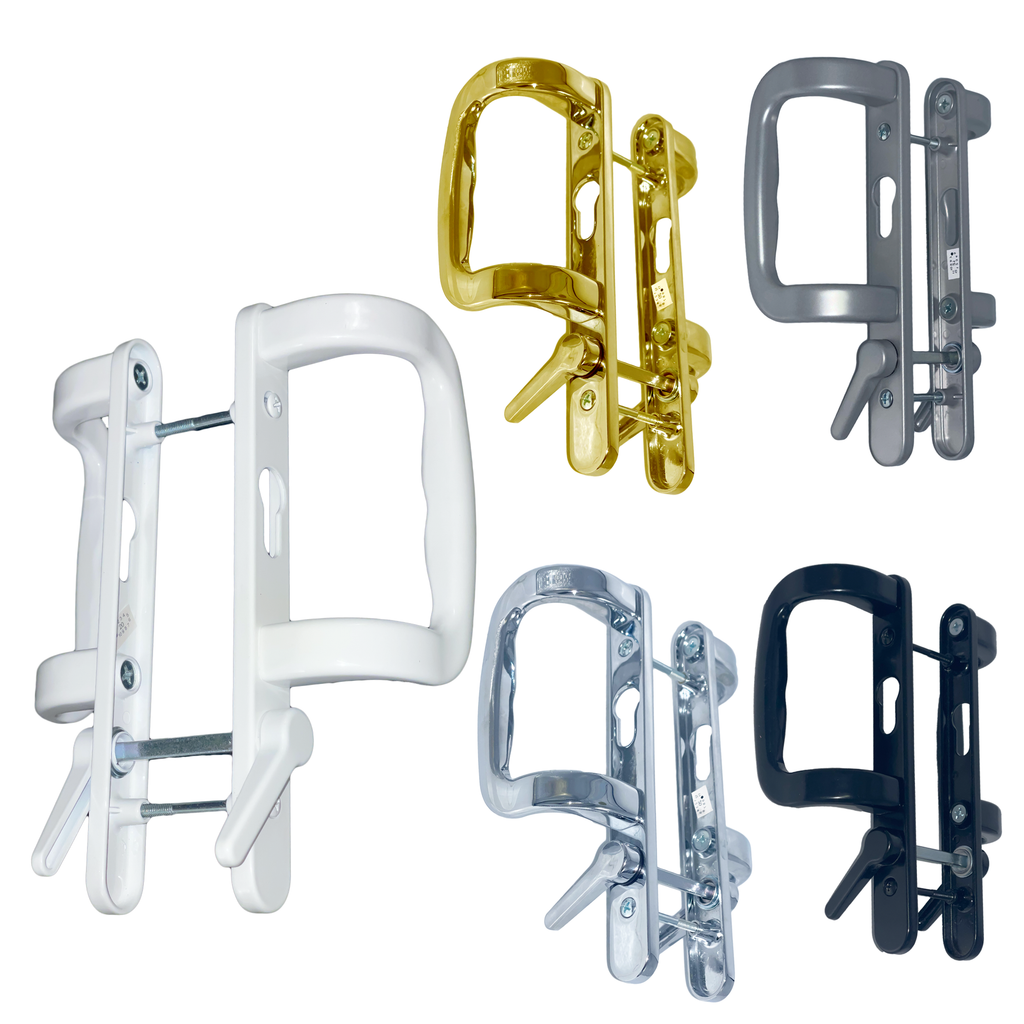

Every handle comes with 3 spindles and 6 screws to cover a range of door sash thicknesses from 39 - 53mm. Available in white, polished gold and polished chrome finish.


Features:

Handle material: Zinc Alloy
Non Handed (will fit left or right hand sliding doors)
Supplied with 6 fixing screws and 3 spindles to suit sash thicknesses between 39mm to 53mm
10 year guarantee

What's in the pack?

1 x Pair of Fuhr Sparta Patio Door handles (internal & external)
6 x Fixing screws
3 x Spindles to suit sash thicknesses between 39mm to 53mm

Technical Diagram:

Technical Measurements:

Handle length: 220mm
Handle Width: 25mm
90 PZ (distance between centre of euro cylinder to centre of handle spindle)
Screw hole centres: 145mm
3 Spindles supplied (7mm square diameter, 70mm, 80mm and 84mm lengths )
