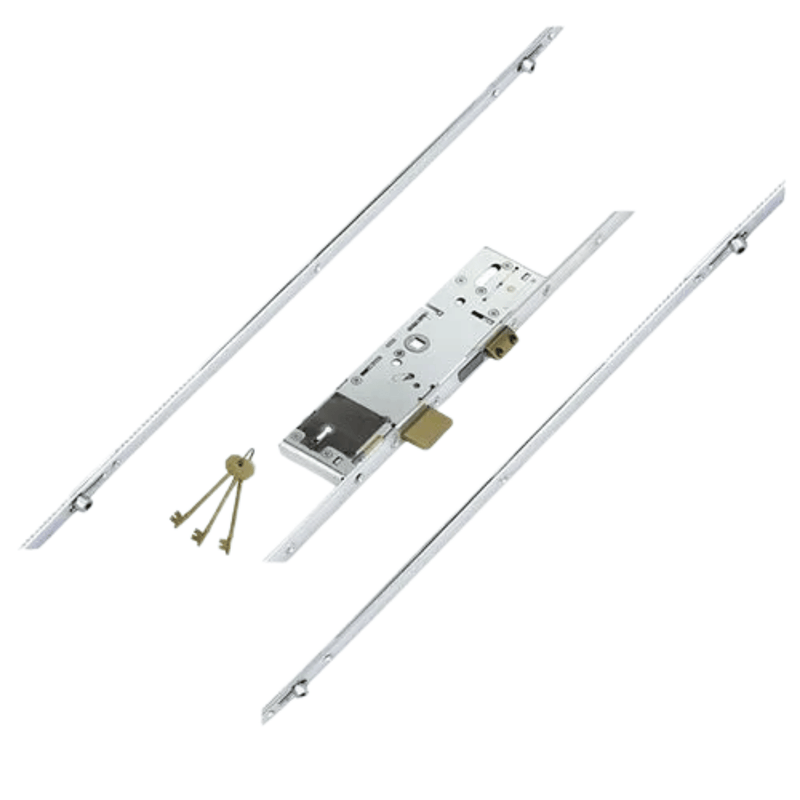

The ERA Vectis Deadbolt Multipoint Door Lock features a reliable combination of 4 rollers, 1 deadbolt, and 1 latch, designed to provide enhanced security and door compression. This lock is widely used across the UK, often rebranded by top door manufacturers, making it a popular choice for uPVC, aluminium, and composite doors.

Key Identification Tips for ERA Vectis Multipoint Locks:

• Rebranded by manufacturers under names like Surelock, Saracen, Spartan, Duraflex, Supa, Westward, and Cego.
• Faceplates may show the ERA logo or other brand markings.
• Uses a 5-lever mortice lock key or traditional UK-style keyhole.
• Look for a coloured holdback snib (grey for deadbolt/hook, blue for Vectis, others may be black or green).
• Sometimes referred to as Saracen locks, from the legacy manufacturer Laird.

Features and Benefits:

• Split spindle mechanism simplifies replacement and installation.
• Compatible with ERA Fortress 5-lever mortice locks for key-alike systems.
• Distinctive square gearboxes (no corner cut-outs), measuring 221mm long.
• Backset options: 35mm and 45mm (ERA also produced 30mm versions).
• Gearboxes accommodate euro cutouts, Invincible cutouts, and Vectis mechanisms.
• Interchangeable gearboxes (excluding Fortress) allow for hook or deadbolt custom setups.
• Latch is 24mm high with two visible screws; deadbolt is 30mm high and spaced 61mm apart.
• Secured with four screws spaced 37mm, 85mm, and 43mm apart.
• Deadbolt: 18mm chamfered throw enhances door compression.
• 4 rollers provide compression, prevent warping, and improve weather sealing (adjustable by +/- 1mm).

Operation:

• To Lock: Lift handle to engage rollers and deadbolt, then turn key to secure.
• To Unlock: Turn key to release points, then push handle down to open.

Durability and Compliance:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240 hours).
• Endurance tested to 50,000+ cycles.
• Designed to meet PAS24:2012 security standards.

Additional Information:

• Latch reversal is simple—remove screws, flip latch, and refit.
• We recommend removing the lock from the door for accurate identification.
• Suitable for uPVC, aluminium, timber, and composite doors.
• We stock compatible keeps, handles, spindles, and accessories.

Product Specification:

• Manufacturer: ERA
• Backset Options: 35mm / 45mm
• Centres (PZ): 92mm
• Faceplate: Varies by model
• Spindle Size: 8mm split spindle
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt mechanism
• Operation: Split spindle
• Handing: Non-handed
• Distance Between Inner Locking Points: 670mm
• Distance Between Outer Locking Points: 1610mm
• Height: 2250mm
• Top Roller to Spindle: 730mm
• Bottom Roller to Spindle: 880mm
• Compatible Door Materials: uPVC, aluminium, composite
