ERA Saracen Roller Latch Window Gearbox 9.5 11.5 14.5mm Latch Bolt Shoot

by ERA

Original price £14.57 - Original price £14.57
Original price
£14.57
£14.57 - £14.57
Current price £14.57
Latch Size: 11.5mm

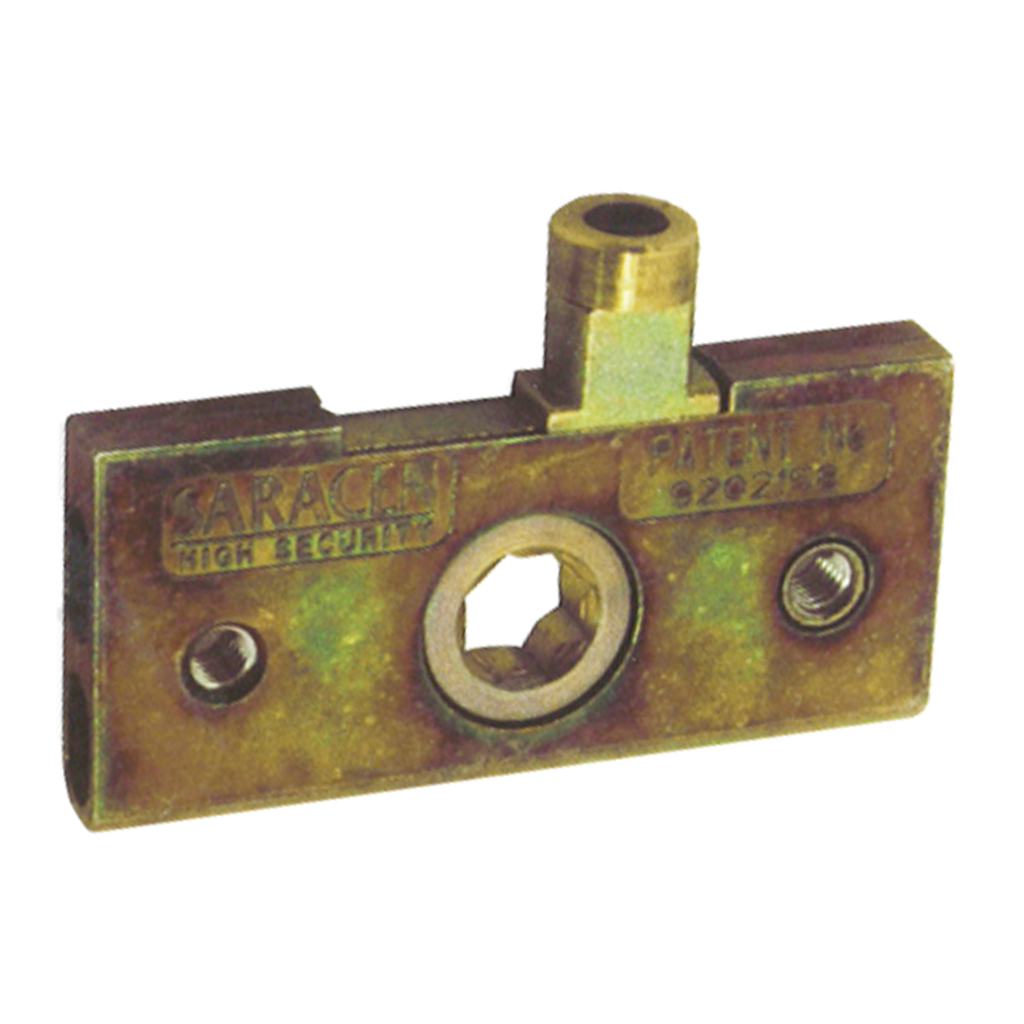

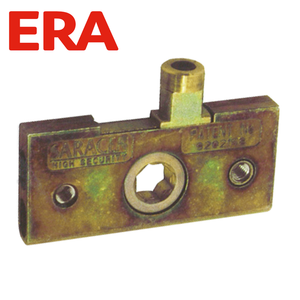

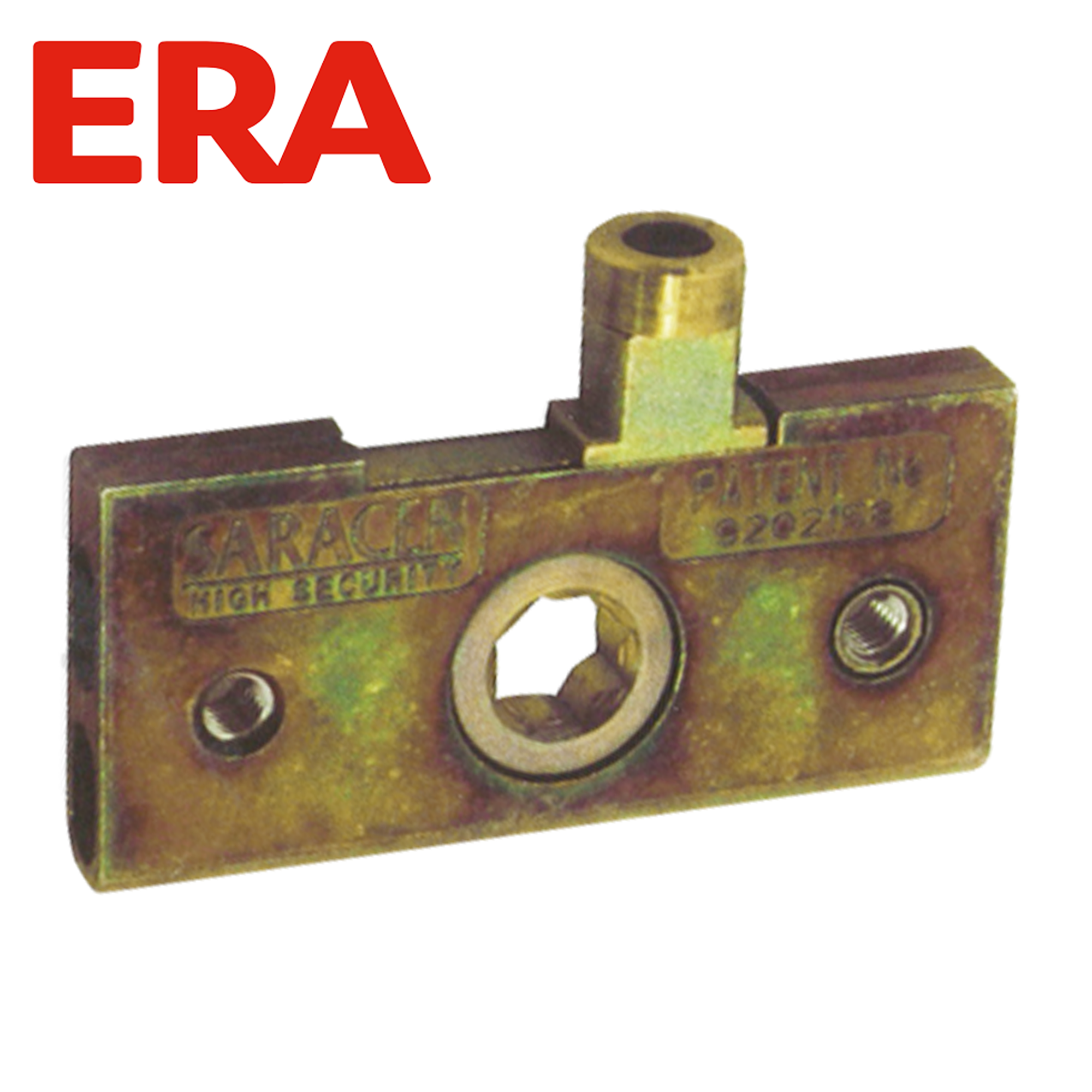

Saracen Roller Latch Shootbolt Gearbox Mechanism UPVC Window Lock (Gearbox Only)

These replacement gearboxes for Saracen Roller Shootbolt mechanisms are designed to operate with bi-directional threaded bolts to secure the window to the outer frame by locating into profile keeps.

Features:

Corrosion resistance: Meets the Requirements of BS EN 1670:2007 Grade 3
Standard measurements of 43mm (handle screw hole centres)
Deadbolt Throw: 9.5mm , 11.5mm ( L18603) , 14.5mm ( L18605 )
22mm Backset
Material: Zinc Alloy
Fixings are not included.
Gearbox only

What's in the pack?
1 x Laird Saracen HS Shootbolt Gearbox Mechanism

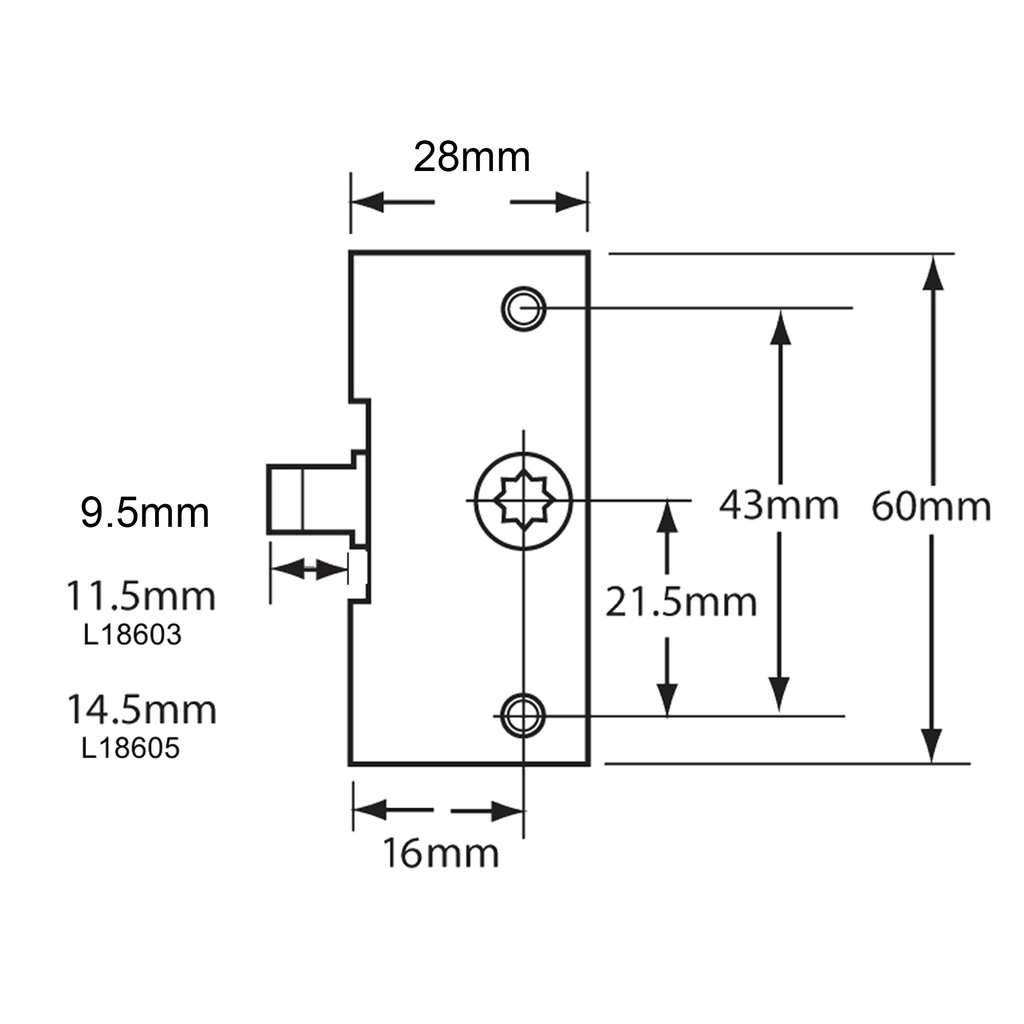

Technical Diagram:
