Elite Latch Deadbolt 2 Hooks, 4 Rollers Double Spindle 35mm Backset

This Elite multipoint lock is a direct replacement for some of the old Roto locks.

Available with a useful one piece keep it provides a solution to replace hard to find or discontinued locks.

Backset: 35mm

Centres: 92mm/62mm

Operation: Lift lever or double spindle nightlatch.

Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screws

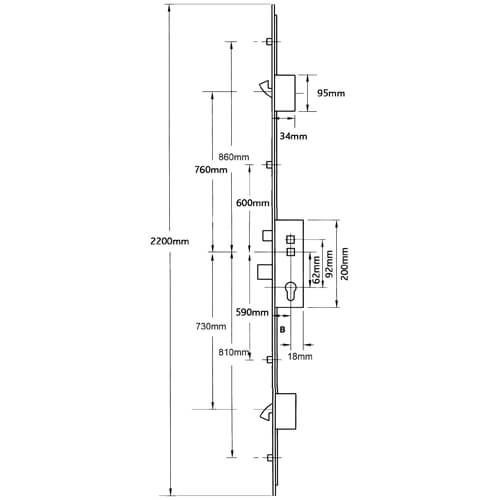

Technical Information-

• Centres: 92mm/62mm
• Overall length: 2200mm
• Case height: 200mm
• Case depth: Backset + 18mm

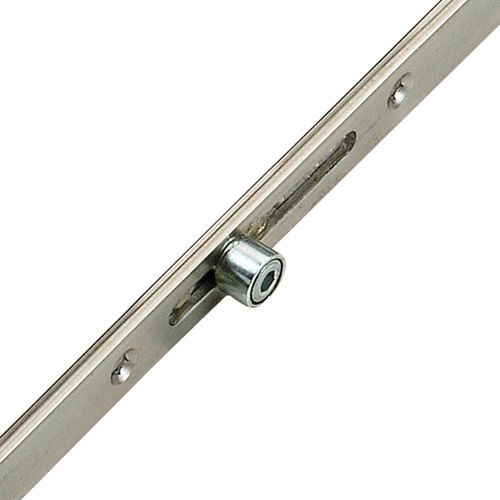

• Distance between outer rollers: 1670mm
• Distance between inner rollers: 1190mm

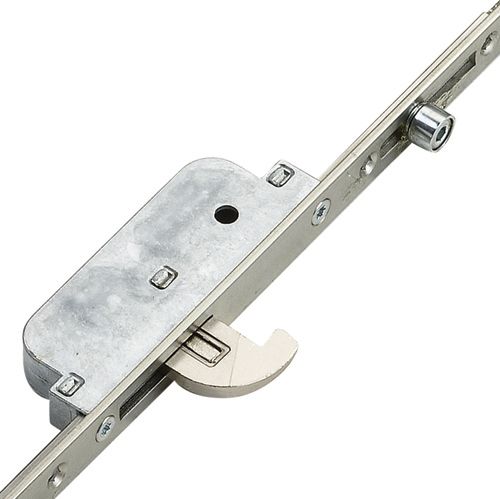

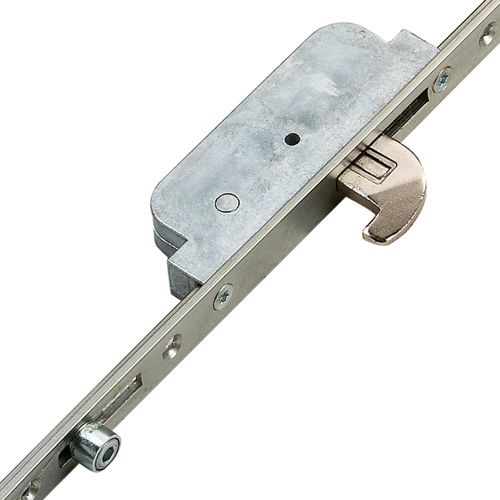

• Top hook throws upwards, bottom hook throws downwards
• Shootbolt compatible
