Axim TC8800 Size 2 Hold-Open Transom Door Closer
Axim TC8800 Size 2 Hold-Open Transom Closer
A concealed overhead door closer for compatible commercial aluminium door installations. This size 2 model has mechanical hold-open at 90 degrees, with separate adjustment for closing and latching speeds.
Features
- Concealed installation in the door transom for a clean appearance.
- Suitable for compatible single- and double-action doors.
- Two valves allow closing and latching speeds to be adjusted separately.
- Pre-set cushioned backcheck.
Technical information
| Brand / range | Axim TC8800 |
|---|---|
| Supplier reference | ATC880290 |
| Power size | 2 |
| Function | Mechanical hold-open at 90 degrees |
| Door width | 751–950mm |
| Maximum door leaf weight | 100kg |
| Bracket size | 70mm |

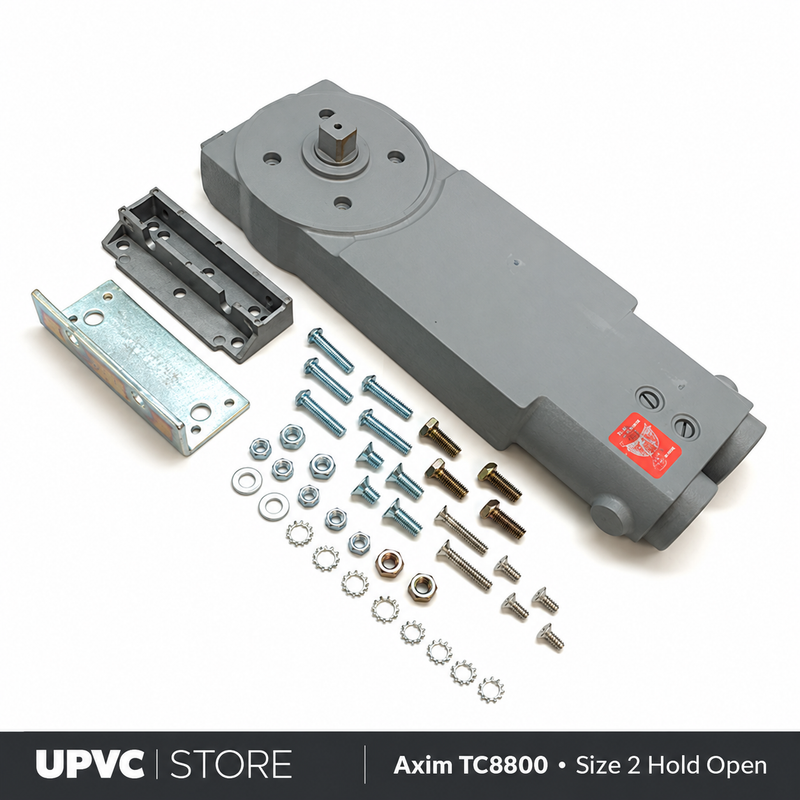

| Supplied | Closer body and fixings |
Check compatibility before ordering
Match the model, power size, spindle arrangement and existing mounting system. Select the correct arm and bottom pivot for your door construction; these components are separate from this closer body. The bottom pivot supports the door weight. This is the standard size 2 hold-open body, not an extended-spindle model or a complete end-load kit.

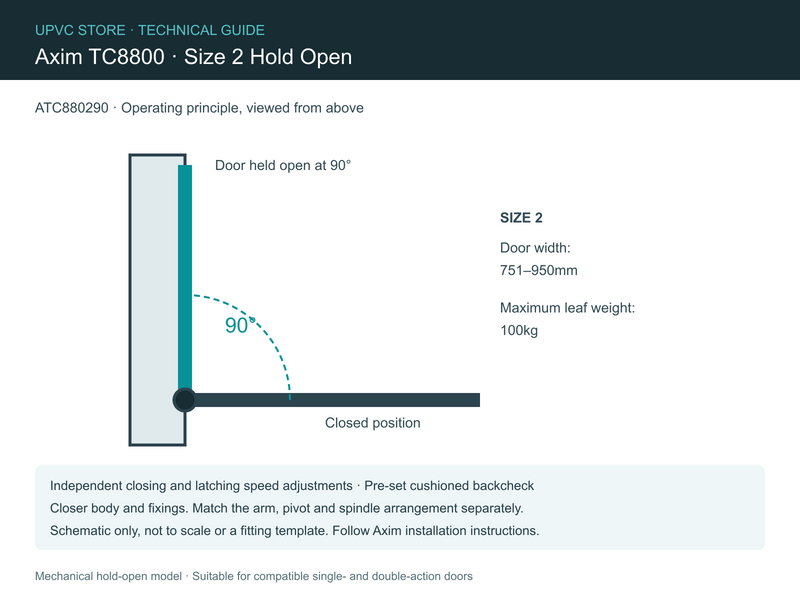

The diagram shows the operating principle and door limits, not a machining or fitting template. Follow the Axim installation instructions and have the door alignment and closer adjustment checked by a competent installer. Mechanical hold-open must not be used where a door is required to close automatically for fire protection.
