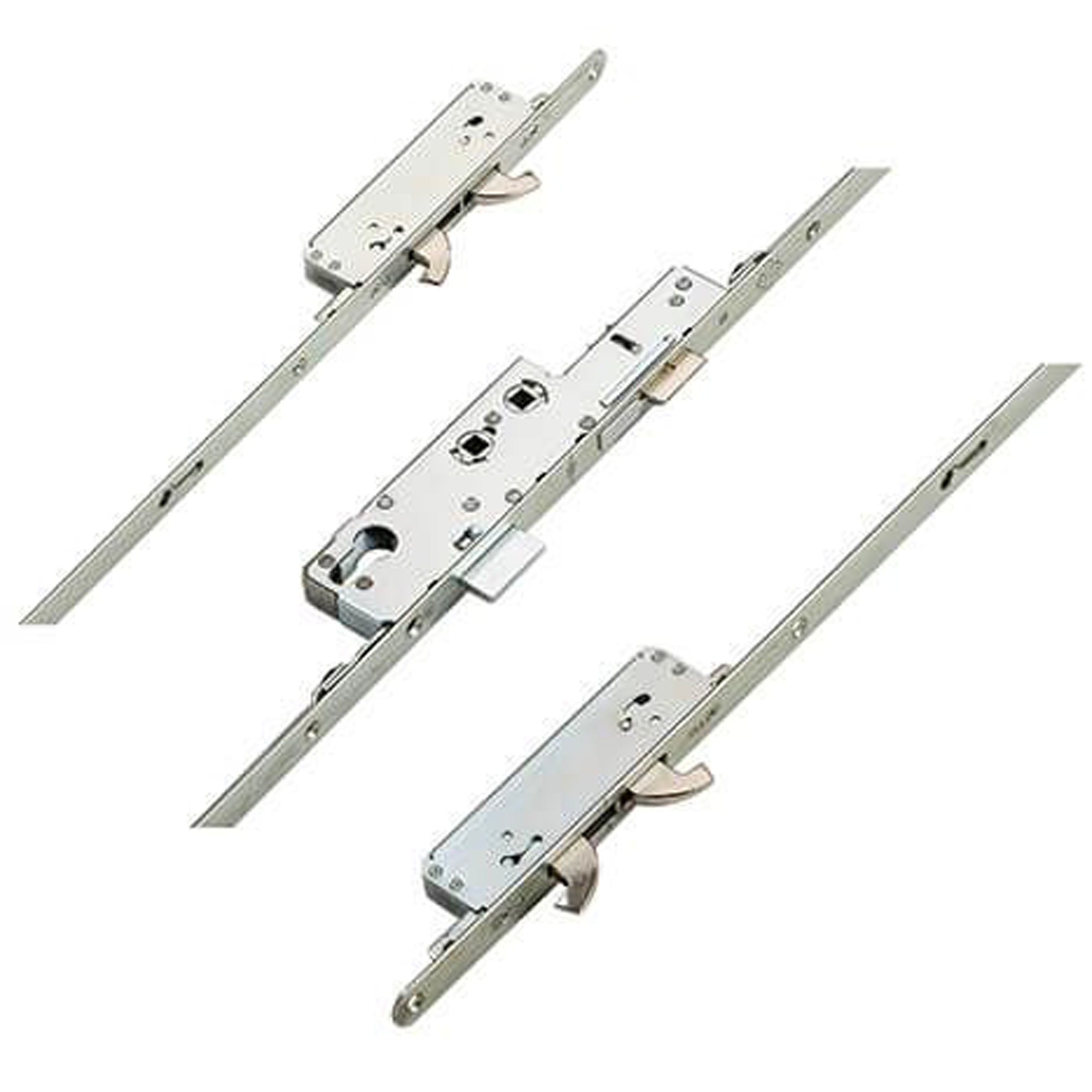

Avocet Timber/Composite Affinity Bastion Latch Deadbolt 4 Hooks Double Spindle Multipoint Door Lock

This Avocet Affinity Bastion lock features 4 hooks which throw in opposite directions and is designed for use on timber and composite doors.


Backset: 35mm or 45mm


Centres: 92mm/62mm


Operation: Lift lever or double spindle nightlatch.


Latch reversal: Undo the screw in the latch to remove. Reverse, reinsert and replace screw.

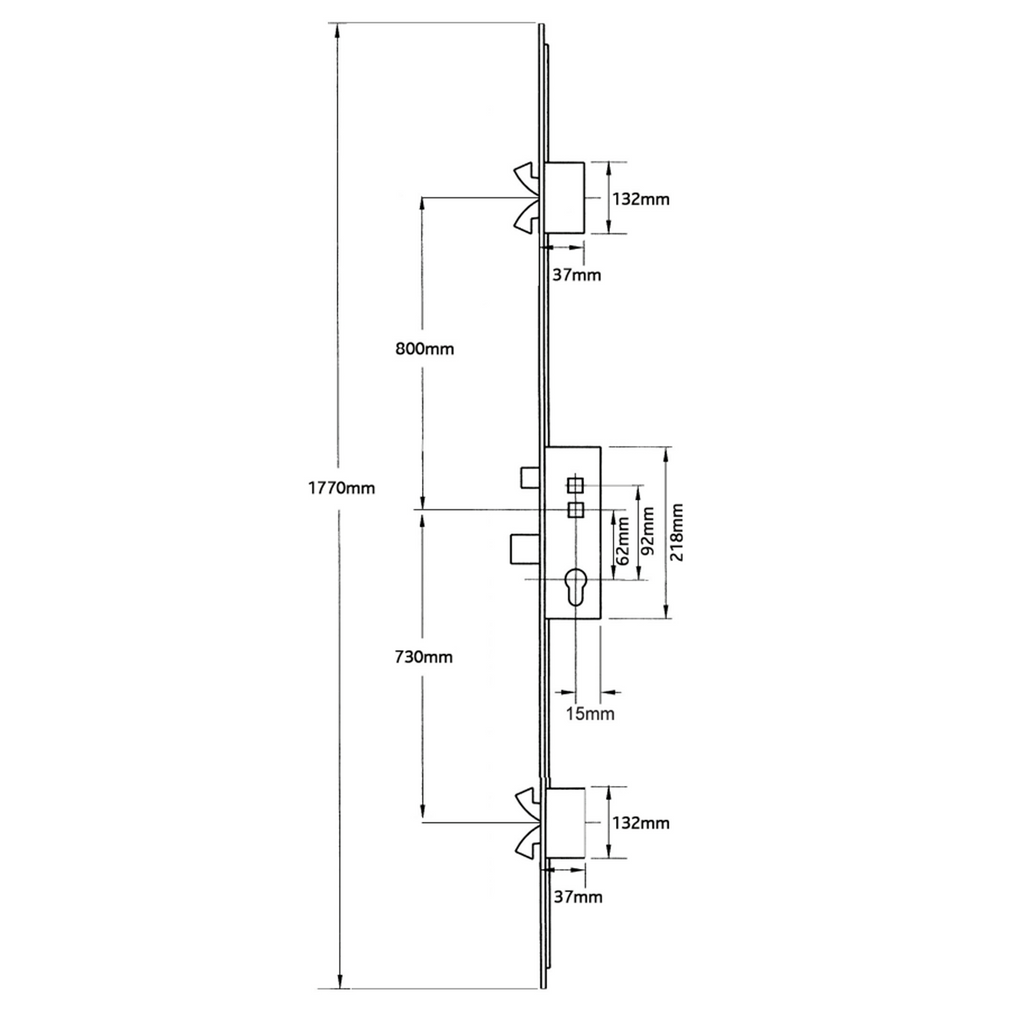

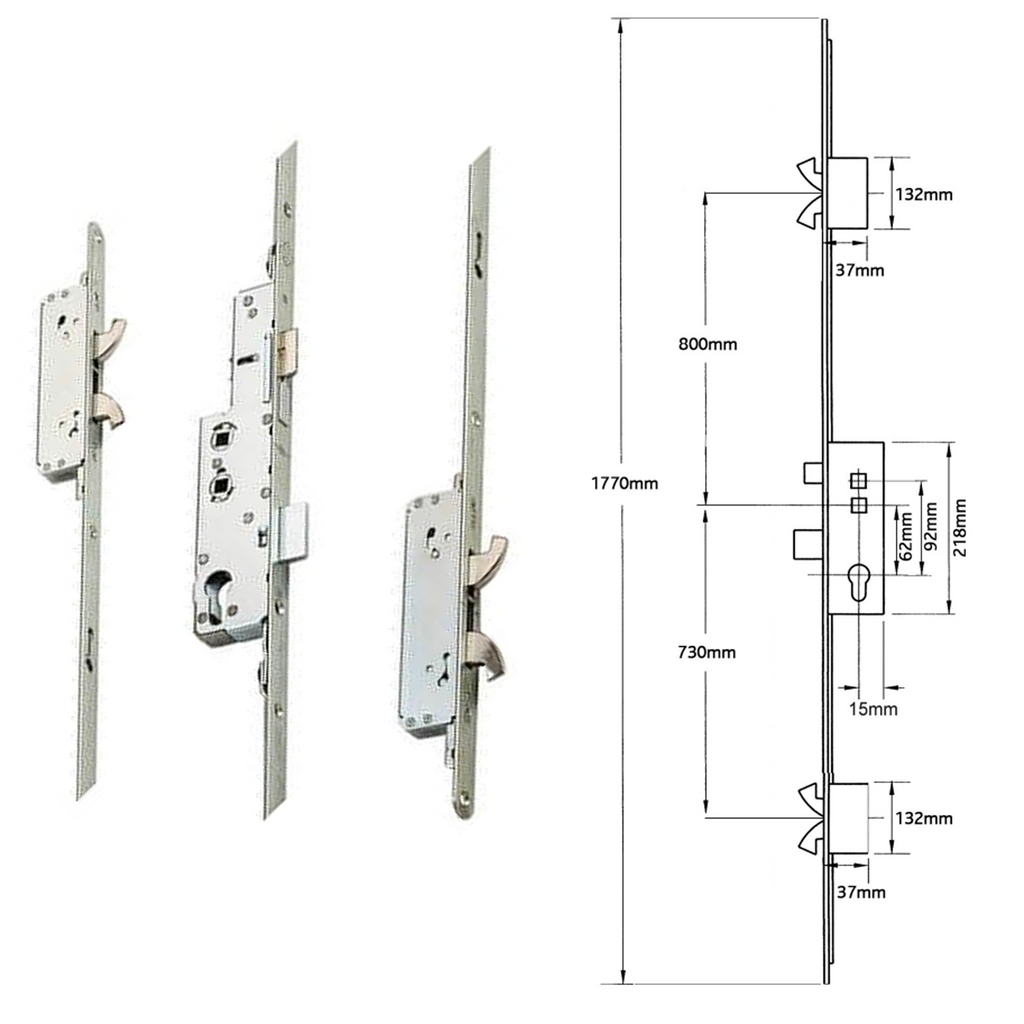

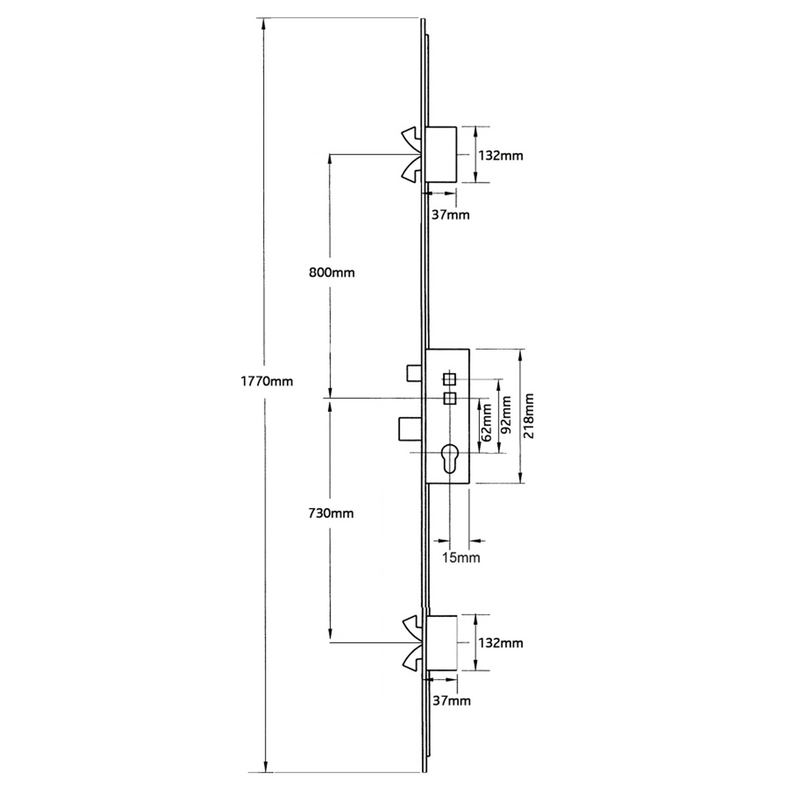

Technical Diagram-
