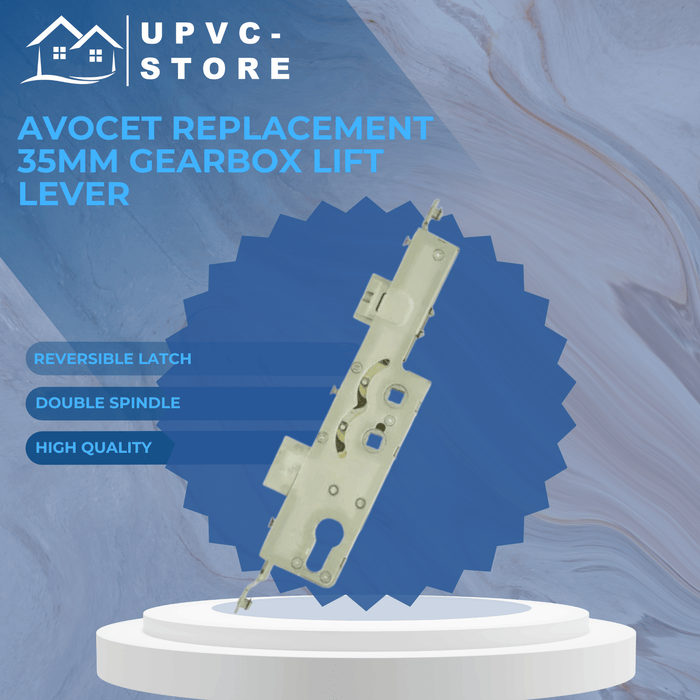

Avocet Replacement 35mm Backset Multipoint Gearbox - Lift Lever Double Spindle 92 pz / 62 pz

by Avocet
Original price £29.99 - Original price £29.99
Original price
£29.99 - £29.99
Current price £29.99

Avocet multipoint's are riveted onto the strip so if your going to attempt to use this gearbox for replacement part or to swap the centre gearboxes please seek a professional installation as this is not an easy fix unlike other centre gearboxes

1 x Centre avocet 35mm twin spindle gearbox per purchase

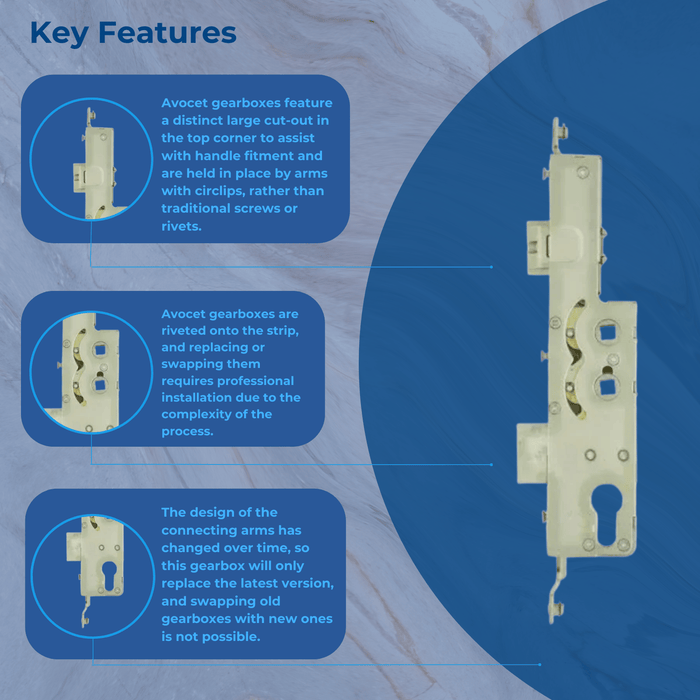

Avocet gearboxes are unique. They measure 218mm high x backset + 15mm. It’s the large cut-out in the top corner, that extends to below the latch, that makes them stand out. This cut-out assists with the fitment of handles where the screws are above the lever.

Avocet gearboxes feature a latch that is 29mm high, a deadbolt that is 34mm high, and 82mm between the top of the deadbolt and the bottom of the latch.

These gearboxes are not attached to the strip using conventional screws or rivets. Instead, the gearboxes are held on by arms that connect using circlips. While it is possible to remove a gearbox from a full Avocet lock, we'd advise replacing the full unit. It's worth noting that the design of the arms has changed over time, and old gearboxes have a flat clip. New versions have a slightly curved connecting arm, that is located lower down, making gearbox swaps with new for old impossible. Please note this will only replace the latest version of this case.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.

We stock a range of associated products for Avocet gearboxes, including multipoint door locks, keeps, spindles, handles and accessories.

Operation: Lift Lever or Double Spindle

Latch reversal: Undo the screw in the latch, Remove the latch. Reverse, reinsert and replace screw
