Avocet Pioneer 3 Deadbolt Double Spindle 92PZ 62PZ Multipoint Door Lock - Caravan Lock

by Avocet
Sold out
Original price £108.45 - Original price £108.45
Original price
£108.45
£108.45 - £108.45
Current price £108.45

This Avocet multipoint door lock features 3 Deadbolts & 1 Latch.


Avocet multipoint door locks are easily identifiable once they are removed from the door. Faceplates are usually stamped with the Avocet logo, although older locks may have the "WMS" logo stamped. Gearboxes are uniquely shaped, with the cut out extending below the latch, which is unique when identifying multipoint locks.


Avocet multipoint door locks were originally available in a wide range of different configurations featuring hooks, rollers, deadbolts and an Affinity Bastion lock with opposing hooks. Earlier versions of Avocet multipoint locks were made in yellow passivated steel, which have a distinctive brassy colour. Recently, the locks have changed with faceplates made from a stainless steel or a Trivalent silver finish.


When these locks swapped from yellow passivated to silver, the majority of variations were replaced. Notable exceptions include the 2 roller and 2 mushroom lock as well as the shorter version of the 3 deadbolt lock designed for use on caravans. Please contact us if you would like assistance finding the best replacements for these locks.


Also, it's worth noting some Avocet multipoint door locks feature a "sash lifter" device. This device was designed to help ensure the correct sash to frame alignment but these are no longer available so we would recommend replacing these locks with the standard version.


Most Avocet locks are only available in a 35mm backset, but the Affinity Bastion lock is designed for composite doors and feature a 45mm backset.

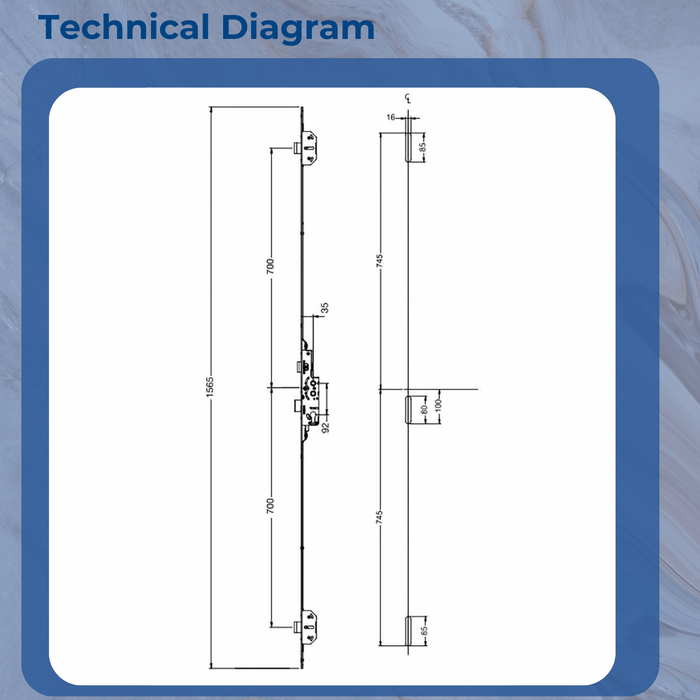

Manufacturer: Avocet
Backset: 35mm
Centres PZ: 92mm/62mm
Faceplate: Flat 16mm - Square Ends
Spindle Size: 8mm
Deadbolts: 3
Latch: 1
Main Gearbox: Latch & deadbolt
Operation: DoubleSpindle
Spindle: Double 8mm
Handing: Non handed
Distance Between Inner Locking: 1400mm
Height: 1565mm
Top Deadbolt to Spindle: 685mm
Bottom Deadbolt to Spindle: 715mm
Door Material: UPVC, Aluminium
