Avocet Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock
Avocet Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock
Avocet Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock
Avocet

Avocet Latch 3 Deadbolts 4 Rollers Double Spindle Multipoint Door Lock

Regular price £69.99 £0.00
Shipping calculated at checkout.

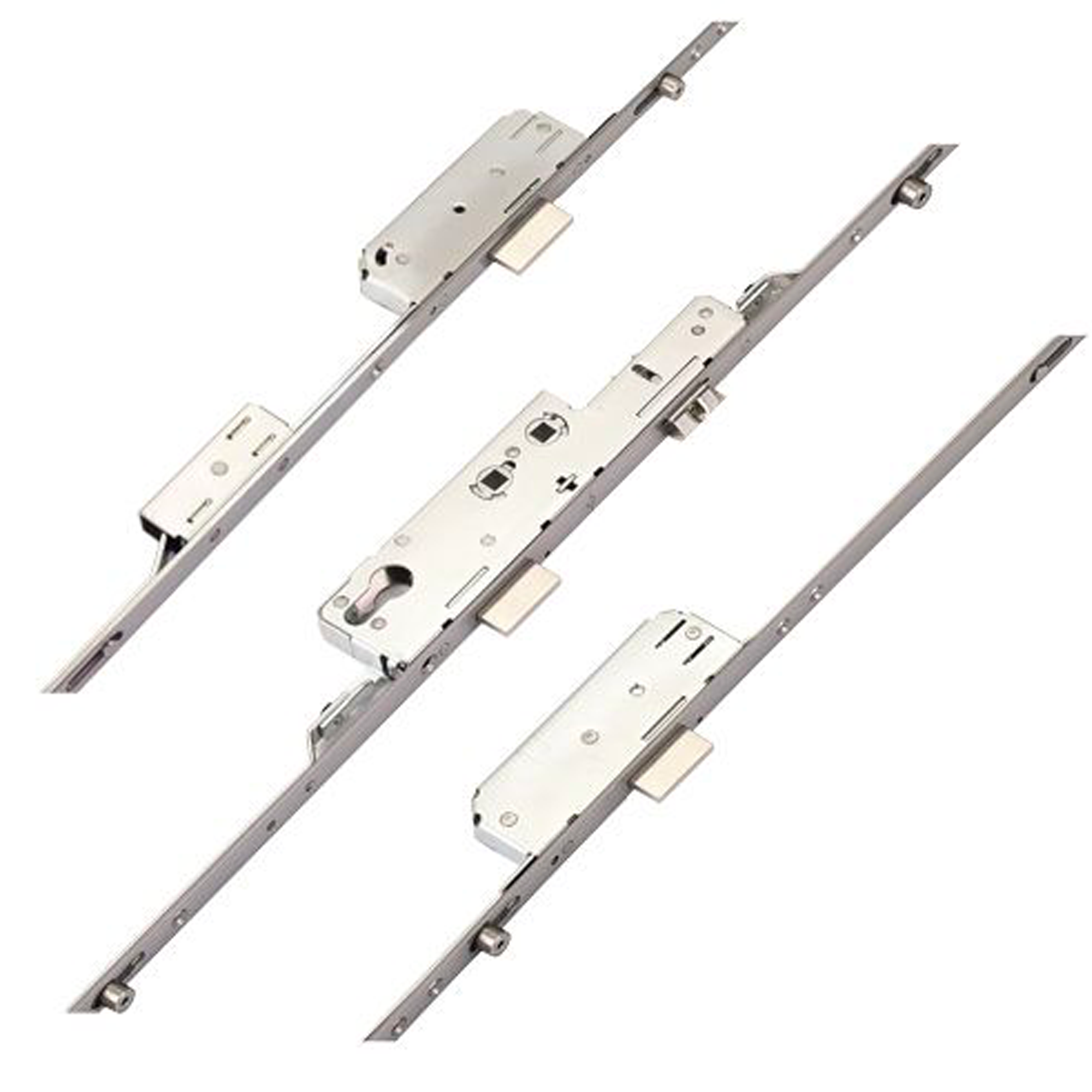

The original Avocet 3 deadbolt, 4 roller lock features unique locking positions.

Backset: 35mm.

Centres: 92mm/62mm.

Operation: Lift lever or double spindle nightlatch.

Latch reversal: Depending on date of manufacture either - Undo hexagonal screw on side of lock case to remove latch. Reverse, reinsert and replace screw. Or undo screw in centre of latch, reverse, reinsert and replace screw.

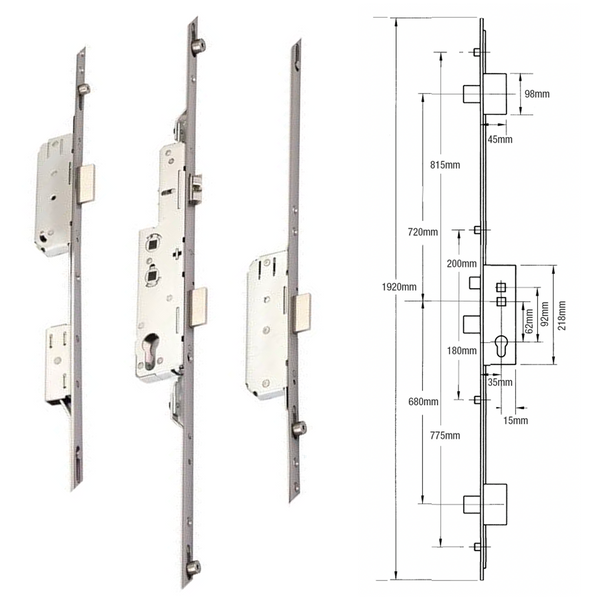

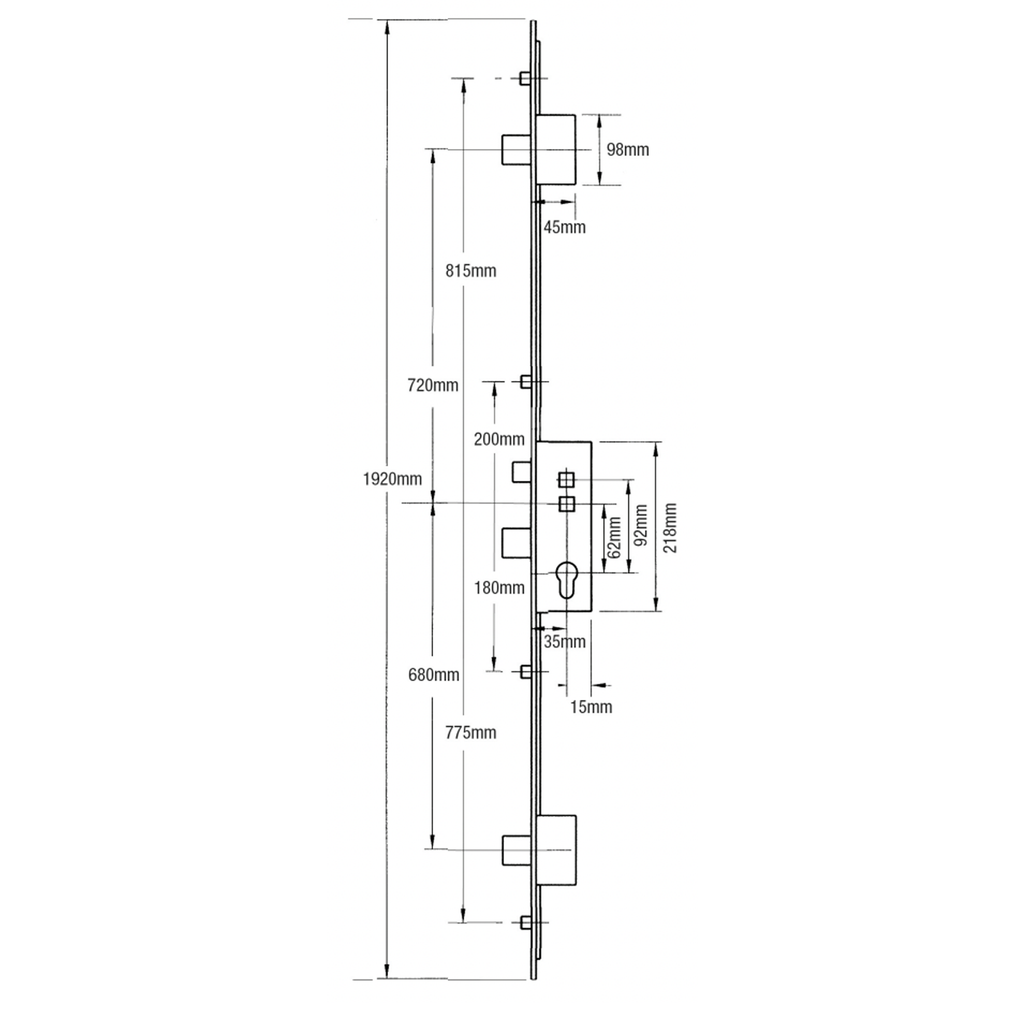

Technical Diagram-
techdetails
