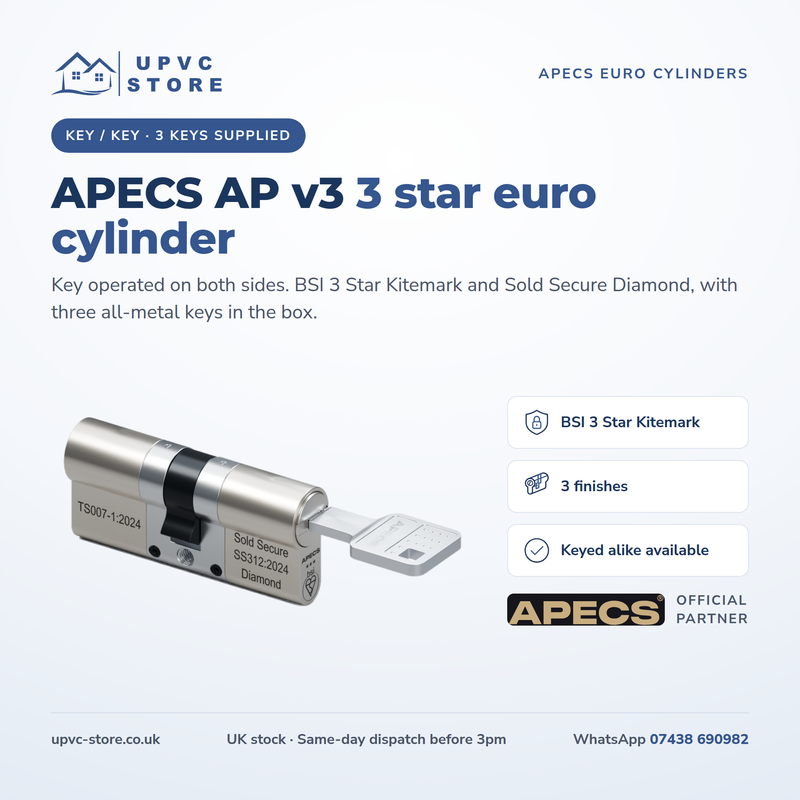

APECS AP v3 3 star euro cylinder, key / key

A BSI 3 Star Kitemark, Sold Secure Diamond euro cylinder operated by key on both sides.

The APECS AP v3 is updated to meet the latest TS007-1:2024 requirements. It protects against snapping and freeze attacks, as well as drilling, plug extraction, picking and bumping. The key / key cylinder is non-handed, so it can be fitted either way round.

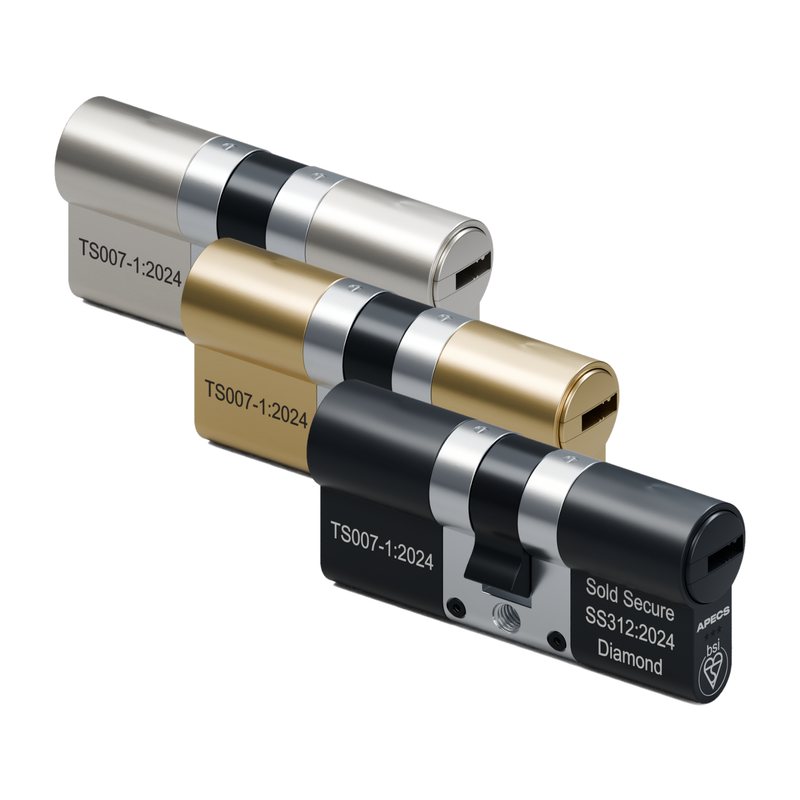

Choose Brushed Satin Nickel, Brushed Brass or Matt Black, then your size. Every cylinder is supplied with three all-metal keys. Extra keys are available as an upgrade.

At a glance

Security BSI 3 Star Kitemark Sold Secure Diamond	Keys 3 all-metal keys supplied	Finishes Nickel, brass or black
Type Key / key, non-handed	Keying Keyed alike and master key suites	Guarantee 10 years, plus 5-year snap-secure

Key features

✓	BSI 3 Star Kitemark and Sold Secure Diamond, tested to TS007-1:2024
✓	Non-handed: fits either way round
✓	Anti-snap: snap-secure sacrificial point with a patent-pending mechanism that protects the remaining cylinder and keeps it operable from inside
✓	Anti-pick, anti-bump and anti-drill: 4 anti-pick pins on each side, double locking slider mechanism and hardened pins in the shell and core
✓	Freeze attack protection with a cold-resistant, high-torsion spring

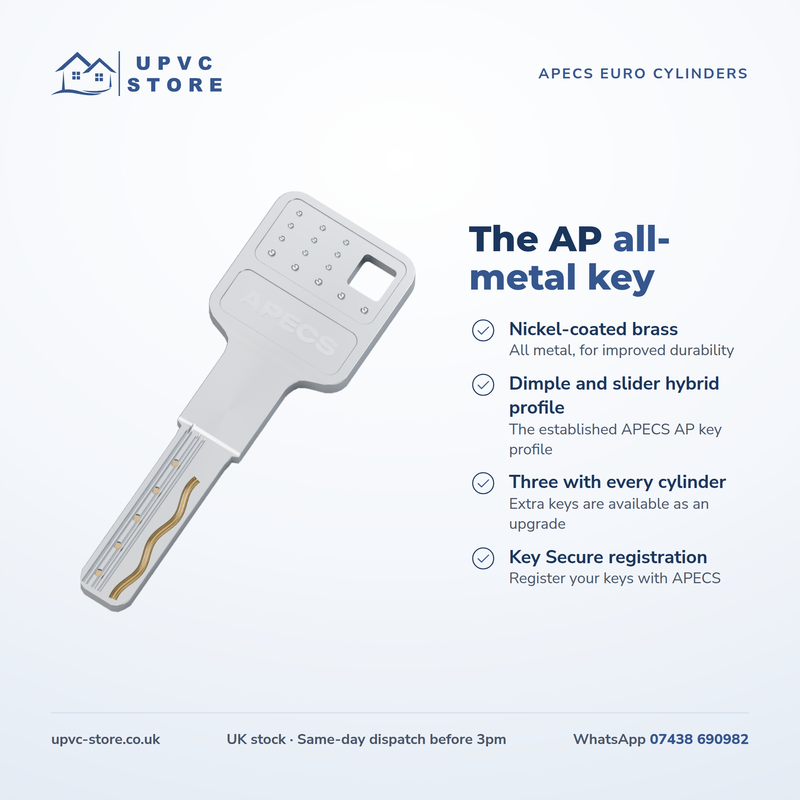

✓	Three all-metal keys supplied, nickel-coated brass with a dimple and slider hybrid profile
✓	Keyed alike and master key suites available, across different sizes and across key / key and thumbturn cylinders
✓	Tedee compatible and eligible for APECS Key Secure key registration

One key for every door. Order your cylinders keyed alike and the same key opens all of them, including different sizes and a mix of key / key and thumbturn cylinders. Master key suites are available for landlords, HMOs and offices. Keyed alike and master keyed cylinders are made to order by APECS: usually 2 to 4 working days, and up to 7 working days for large orders or busy periods.

Specification

Brand	APECS
Model	AP v3
Type	Key / key
Material	Brass and hardened carbon steel
Mechanism	Pin tumbler and slider hybrid, 9 pins
Differs	In excess of 100,000

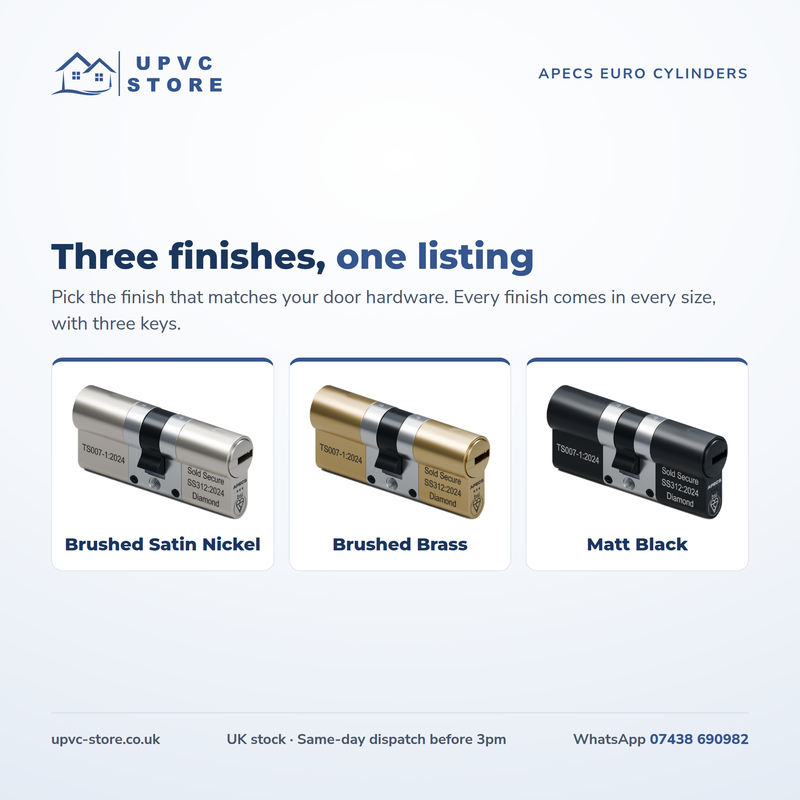

Finishes	Brushed Satin Nickel, Brushed Brass, Matt Black
Sizes listed	32/32, 35/35, 35/45, 40/40, 40/50, 40/60, 45/45, 45/50, 45/55, 50/50 (internal / external)
Keys supplied	3 all-metal keys

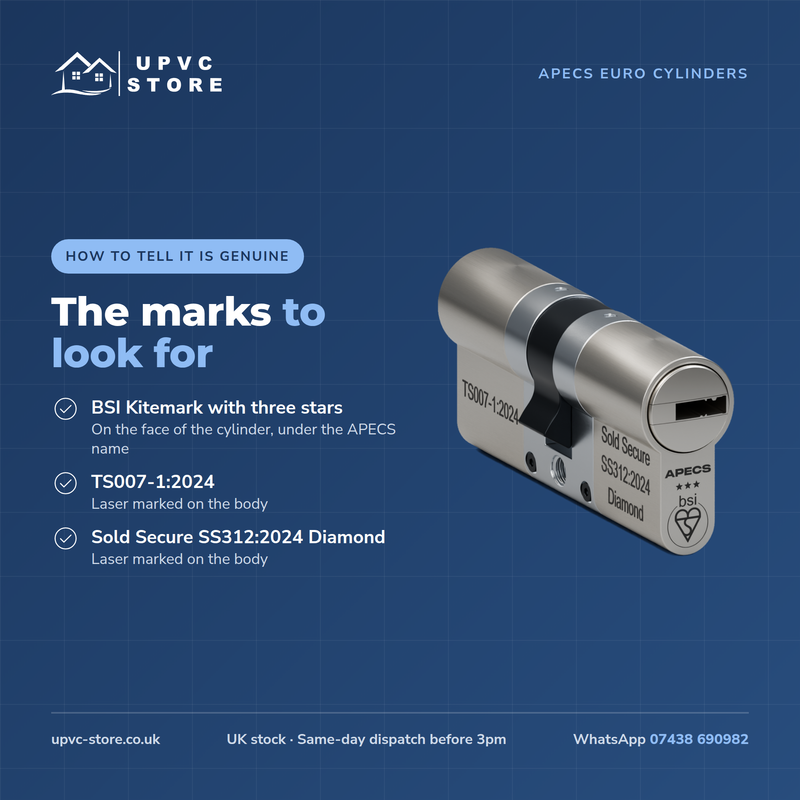

BSI 3 Star Kitemark	KM621947
Sold Secure	Diamond, SS312:2024, 24622026
TS007-1:2024	Pass
BS EN 1303:2015	160B0C6D
Suitable for	uPVC, composite, aluminium and timber doors with a euro profile lock
Guarantee	10-year manufacturer guarantee and 5-year snap-secure guarantee, as stated by APECS

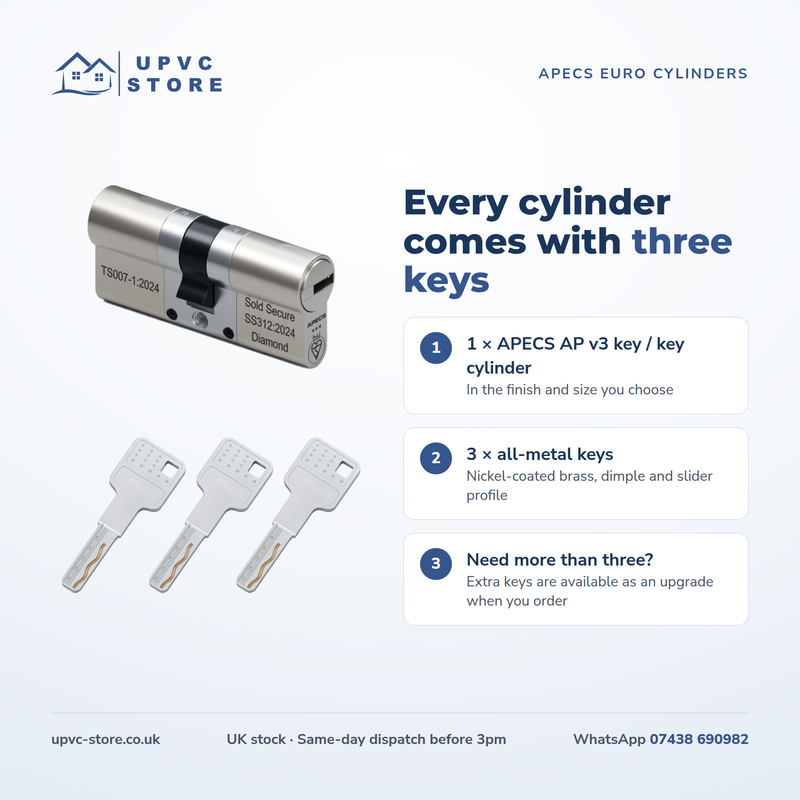

What's in the box

• 1 × APECS AP v3 key / key cylinder in the finish and size you choose
• 3 × all-metal keys
• Extra keys and coloured key caps are sold separately

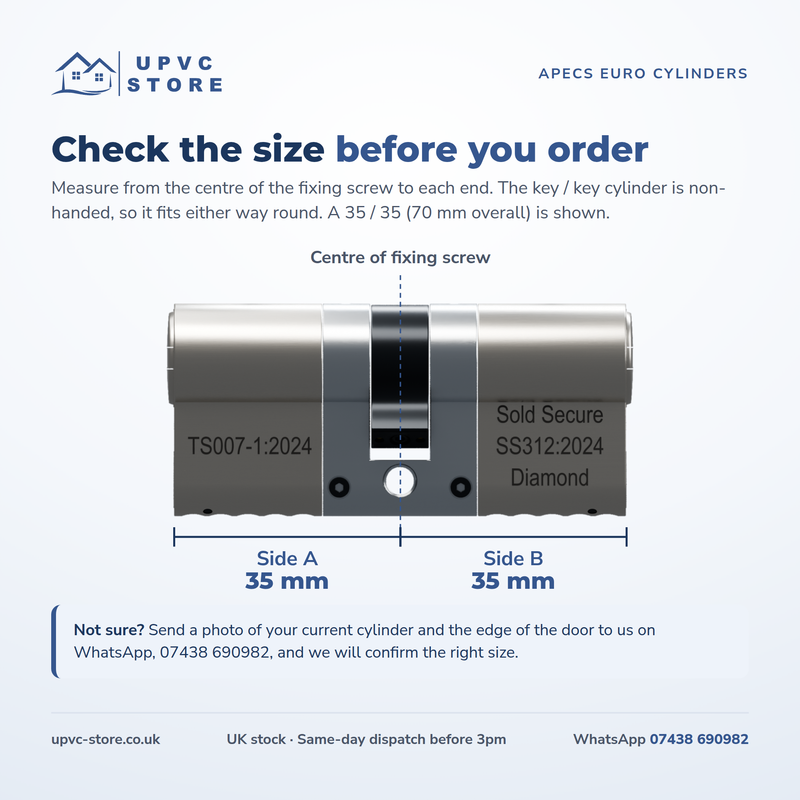

Check the size before you order. Measure your current cylinder from the centre of the fixing screw to each end. Not sure? Send a photo of your current cylinder and the edge of the door to us on WhatsApp, 07438 690982, or email sales@upvc-store.com and we will confirm the right size.

Common questions

How many keys do I get?
Three all-metal keys with every cylinder. Extra keys can be added as an upgrade when you order.

Can I have several cylinders on one key?
Yes. Choose keyed alike for each cylinder you want matched. Different sizes and types can share a key.

How do I measure?
From the centre of the fixing screw to each end of the cylinder. A 35/35 is 70 mm overall.

What doors does it fit?
uPVC, composite, aluminium and timber doors with a euro profile lock.

Dispatch and returns

In-stock cylinders ordered before 3pm on a working day are dispatched the same day. Keyed alike and master keyed orders are made to order by APECS and usually take 2 to 4 working days.

Changed your mind? Use the returns portal within 30 days. Items must be unused and in their original packaging. Keyed alike and master keyed cylinders are made to order.
