Universal Window Repair Kit – Inline Espagnolette, 20mm or 22mm Backset, Keeps & Screws
Universal Window Repair Kit – 20mm or 22mm Backset
Replace a worn or faulty inline window espagnolette with a repair kit containing your selected Kore locking bar, keeps and screws.
Choose a 20mm or 22mm backset and a 250, 400, 600, 800 or 1000mm bar length. Both backset options have 8mm mushroom cams.
Choose the correct size
- Backset: measure from the front edge of the faceplate to the centre of the handle spindle hole. Select 20mm or 22mm to match your existing lock.
- Length: select the required overall bar length.
- Mushroom cam height: 8mm.

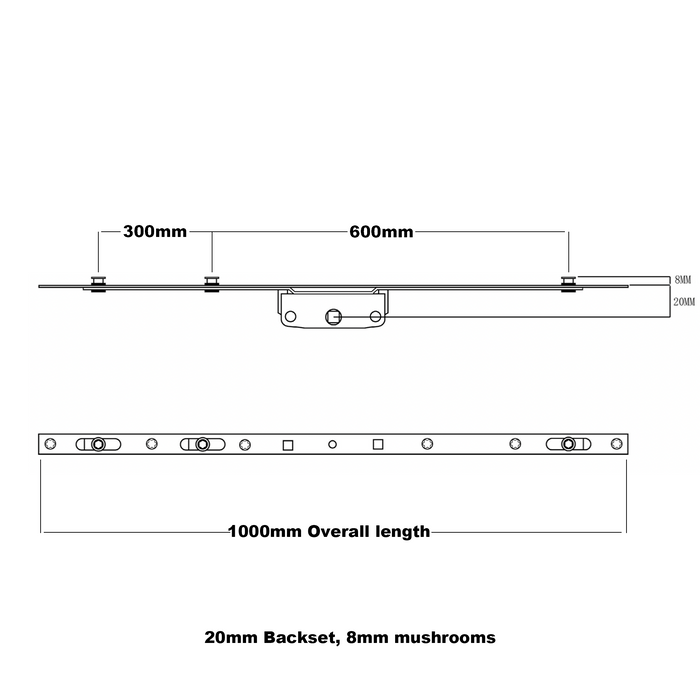

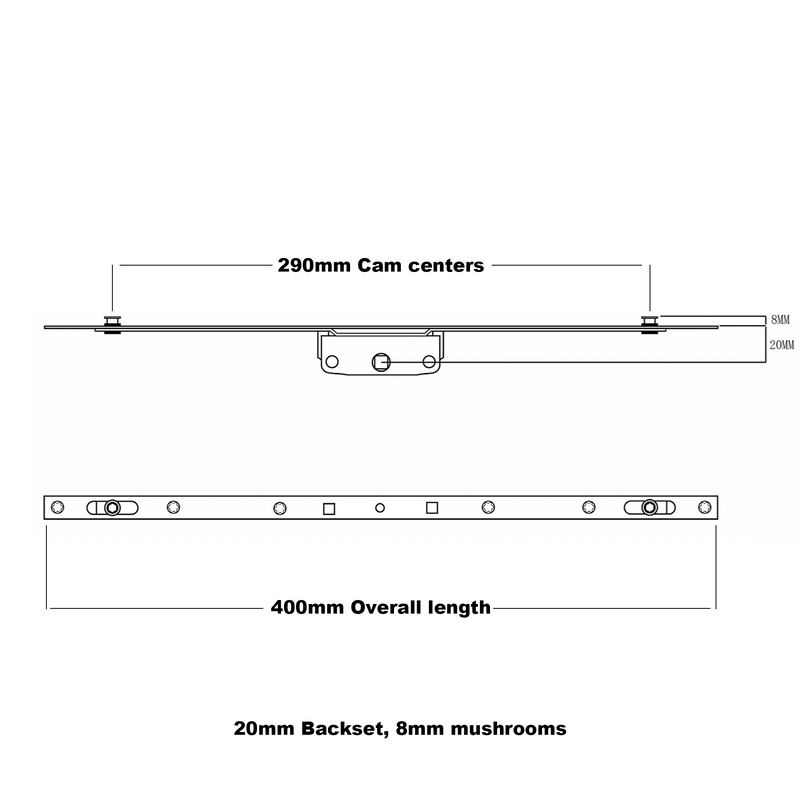

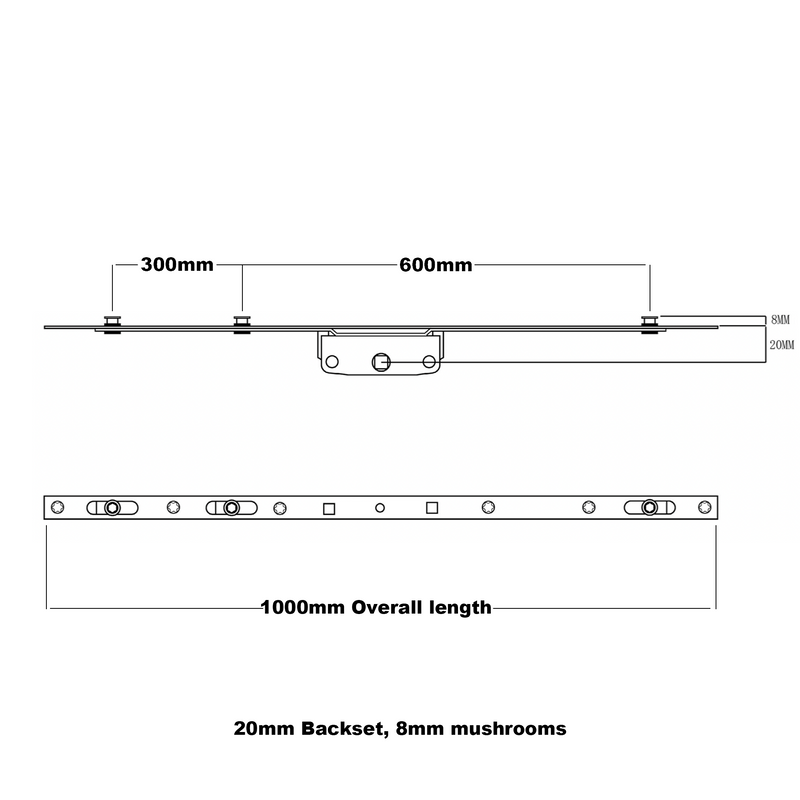

Check your existing lock dimensions and locking-point layout before ordering. The gallery drawings labelled 20mm show the 20mm version; select 22mm in the Backset option if your window requires a 22mm backset.

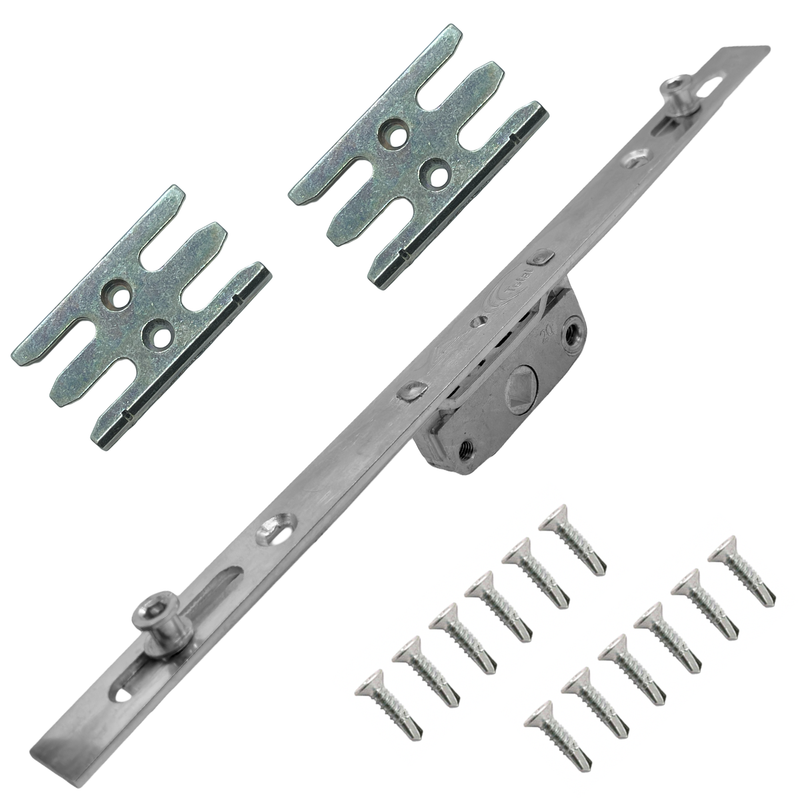

What is included?
- One inline espagnolette bar in your chosen length and backset.
- Keeps and fixing screws, using the same repair-kit fittings for both backset options.
Bar features
- Fits standard and reduced-depth eurogrooves.
- Steel faceplate and zinc die-cast gearbox.
- 8mm mushroom cams with 16mm travel.
