MACO Offset Mushroom Espagnolette – 20 mm & 25 mm Backsets

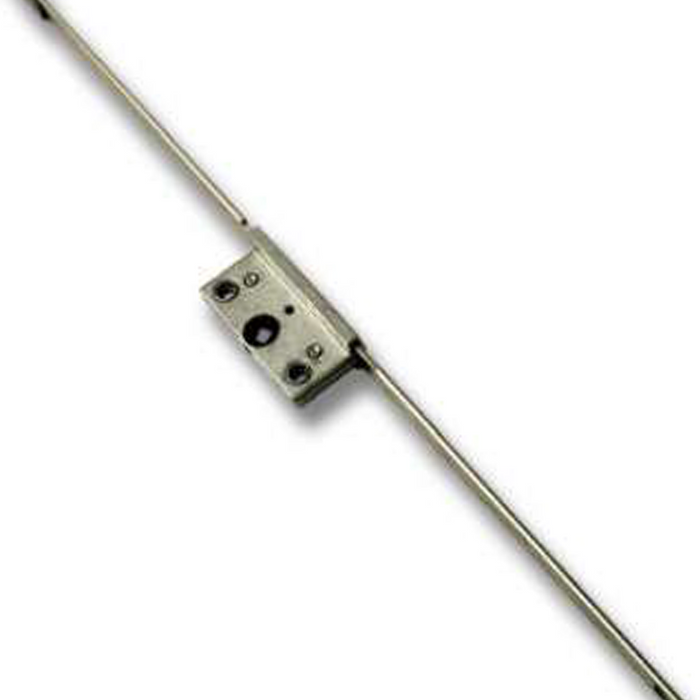

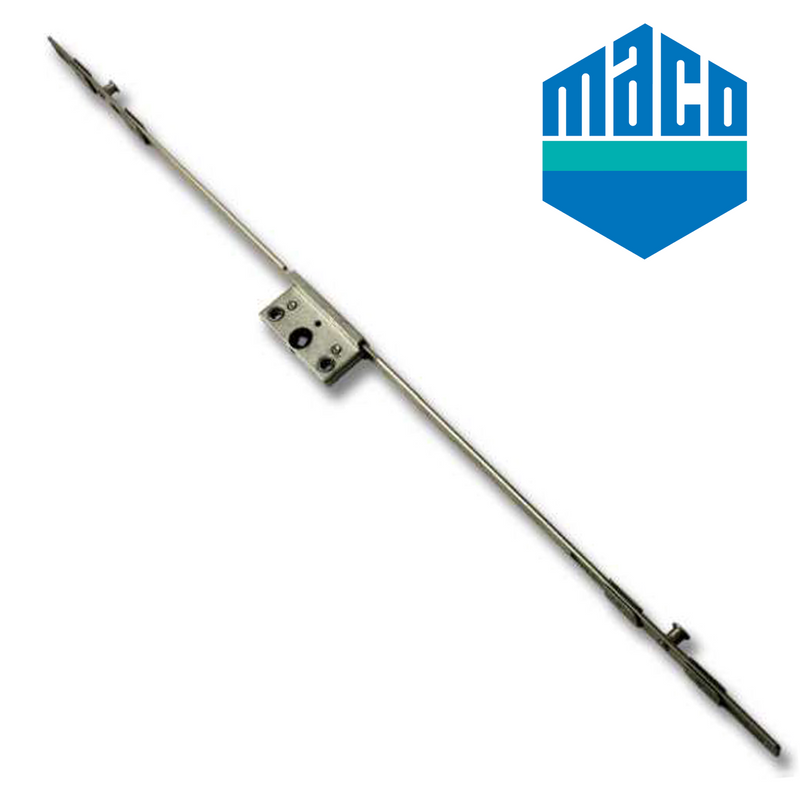

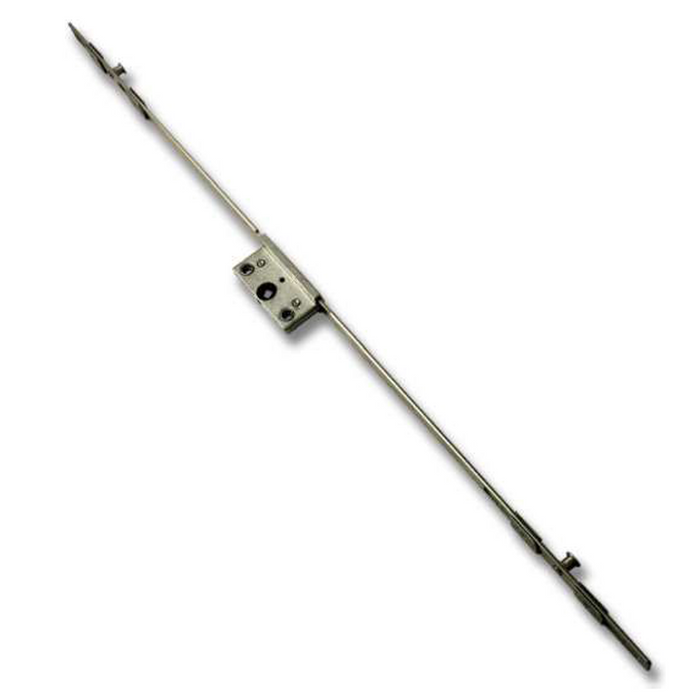

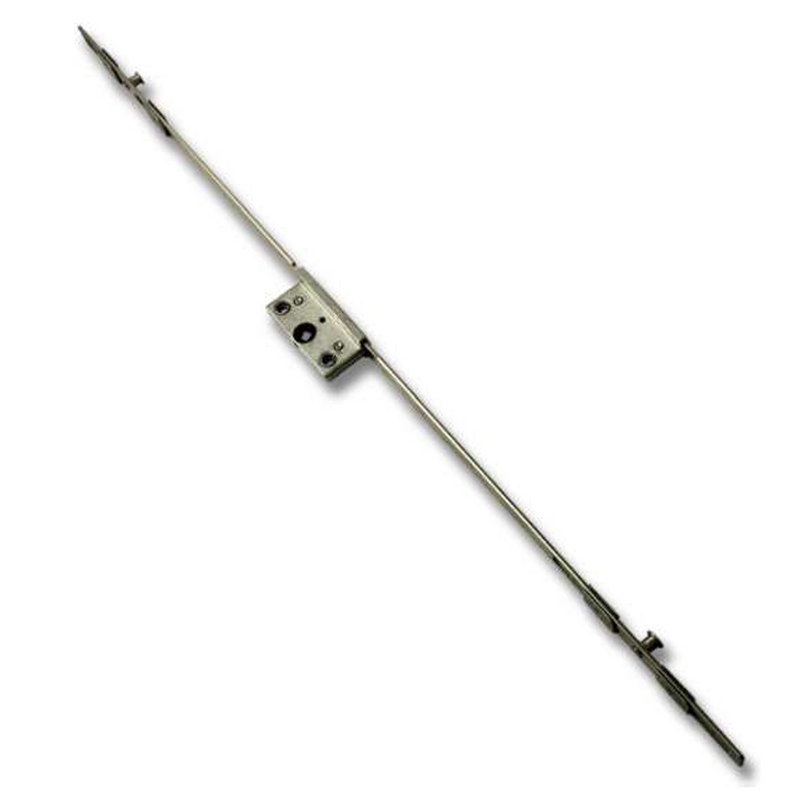

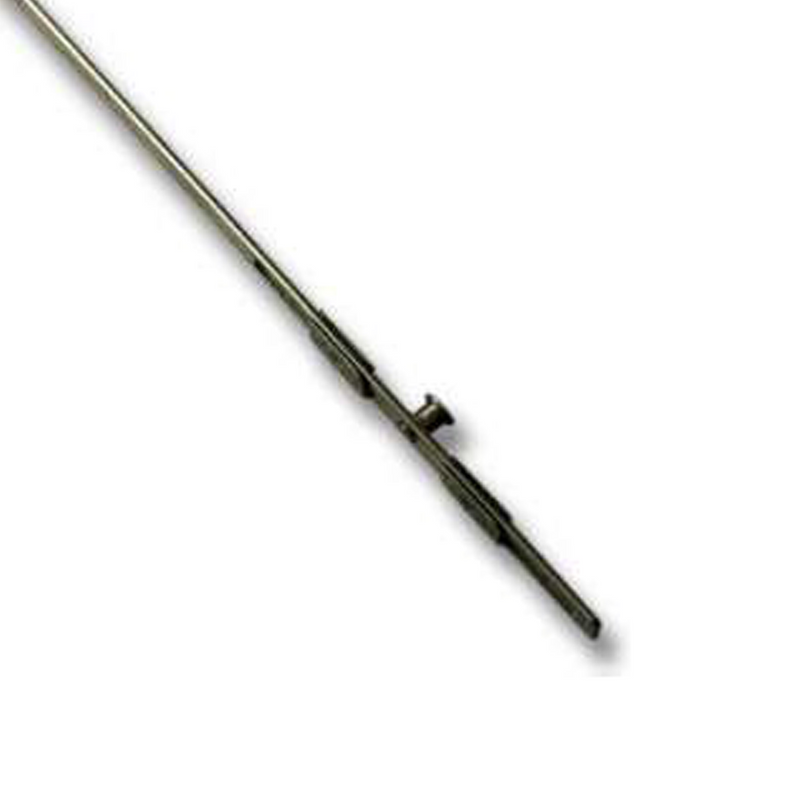

MACO offset mushroom espagnolette
One offset locking bar for compatible outward-opening windows with profiles without a eurogroove.
Each option shows its measured overall rail length, backset and mushroom cam height. Choose the combination that matches your existing lock.
Compare the gearbox backset, mushroom cam height, overall rail length and cam positions with your existing bar.
20 mm backset size reference
MACO size codes are shown for reference. Measure your rail end to end and use the overall length to select your option.
| MACO size code | Overall rail length |
|---|---|
| 310 mm | 291 mm |
| 400 mm | 381 mm |
| 600 mm | 581 mm |
| 800 mm | 781 mm |
| 1000 mm | 981 mm |
| 1200 mm | 1181 mm |
MACO Offset technical drawing and sizing tables
What is supplied?
One MACO espagnolette bar in the selected option. Handles and profile-specific keeps are sold separately.
Bought from UPVC Store, backed by UPVC Store
For a fitment check, send photos of the complete bar, gearbox and measurements to WhatsApp 07438 690982 or sales@upvc-store.com.
