Yale Lockmaster uPVC Window Shootbolt Gearbox - Extended 22mm Backset
Yale · Window shootbolt gearbox · Extended
The replacement Yale extended window gearbox, 22 mm backset with 7.7 mm cams

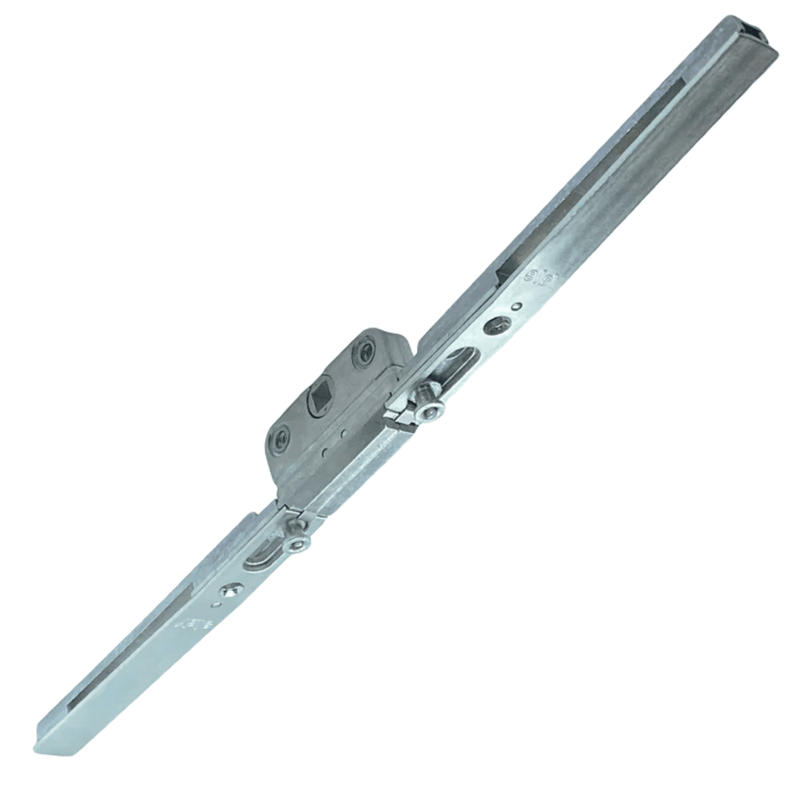

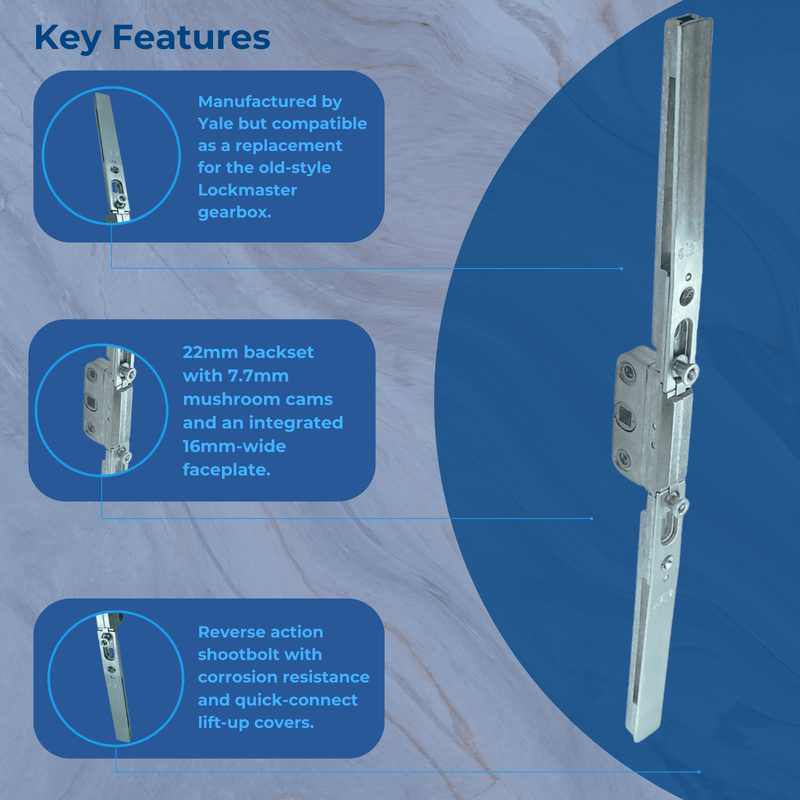

The current Yale shootbolt gearbox for casement windows, in the extended version with a 22 mm backset and 7.7 mm mushroom cams. It takes the place of the original Lockmaster Yale extended gearbox.
Yale has replaced the original gearbox with a new design, so the part you receive will not look the same as the one you take out. Match it by its measurements, the backset and the cam height, and not by its appearance.

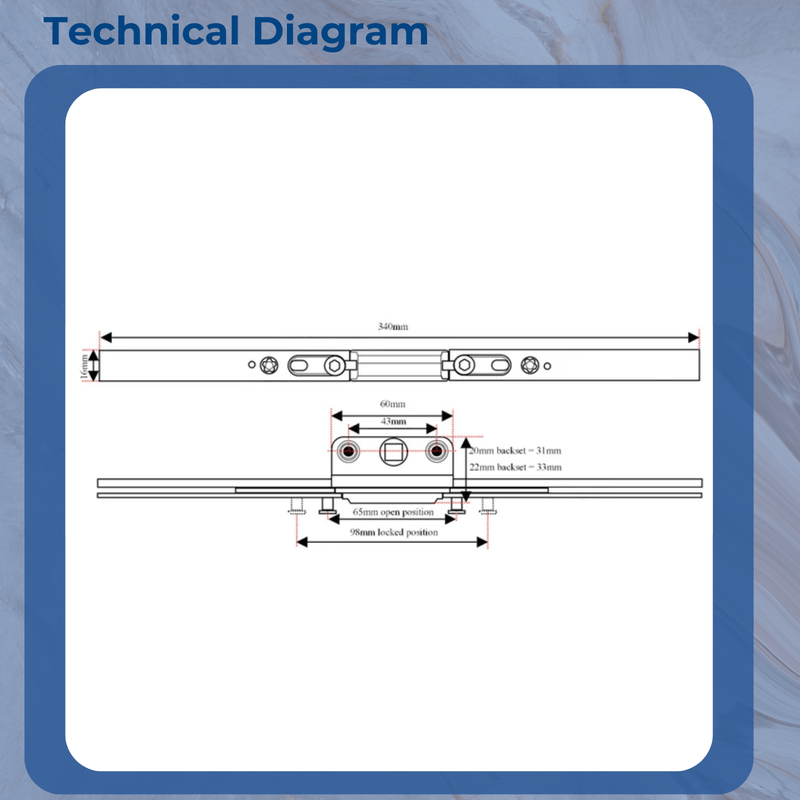

How to measure
Take both measurements on your existing gearbox, from the back of the rail. That is the side that sits flat against the window.
Match the backset and cam height to your existing gearbox. If you are changing only the gearbox, we cannot tell from a description whether it will connect to the rods already in your window.
Not sure? Send a photo of your existing gearbox, showing the back of the rail and the cams, on WhatsApp or by email to sales@upvc-store.com and we will confirm the right part.
Specification
| Brand | Yale |
| Type | Shootbolt window gearbox, extended |
| Backset | 22 mm |
| Cam height | 7.7 mm |
| Cams | Mushroom cams, one each side of the gearbox |
| Cam adjustment | Compression is set with a 4 mm hex key |
| Handle fixing centres | 43 mm |
| Suits | PVC, aluminium and timber casement windows, as stated by Yale |
| Extension rods | Sold separately. Yale pairs the extended gearbox with its extendable rods |
| Guarantee | 10-year mechanical guarantee from Yale |
What you get
Guarantee and testing
As stated by Yale for this shootbolt range. The lock is permanently lubricated. Keep it clear of building debris, and check the fixing screws and gasket compression every five years.
