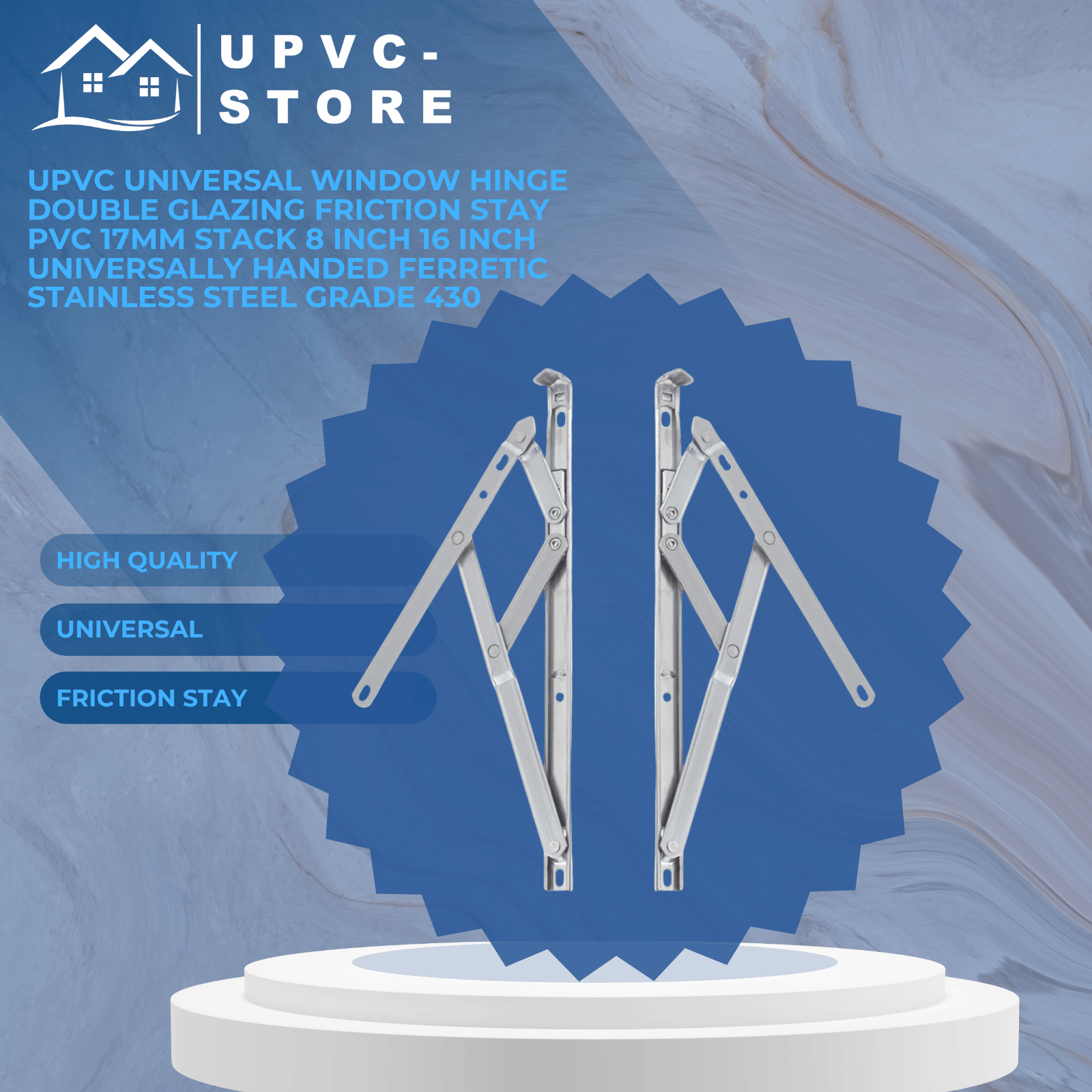

uPVC Universal Window Hinge Double Glazing Friction Stay – 17mm Stack – 8" & 16" Sizes – Ferretic Stainless Steel Grade 430

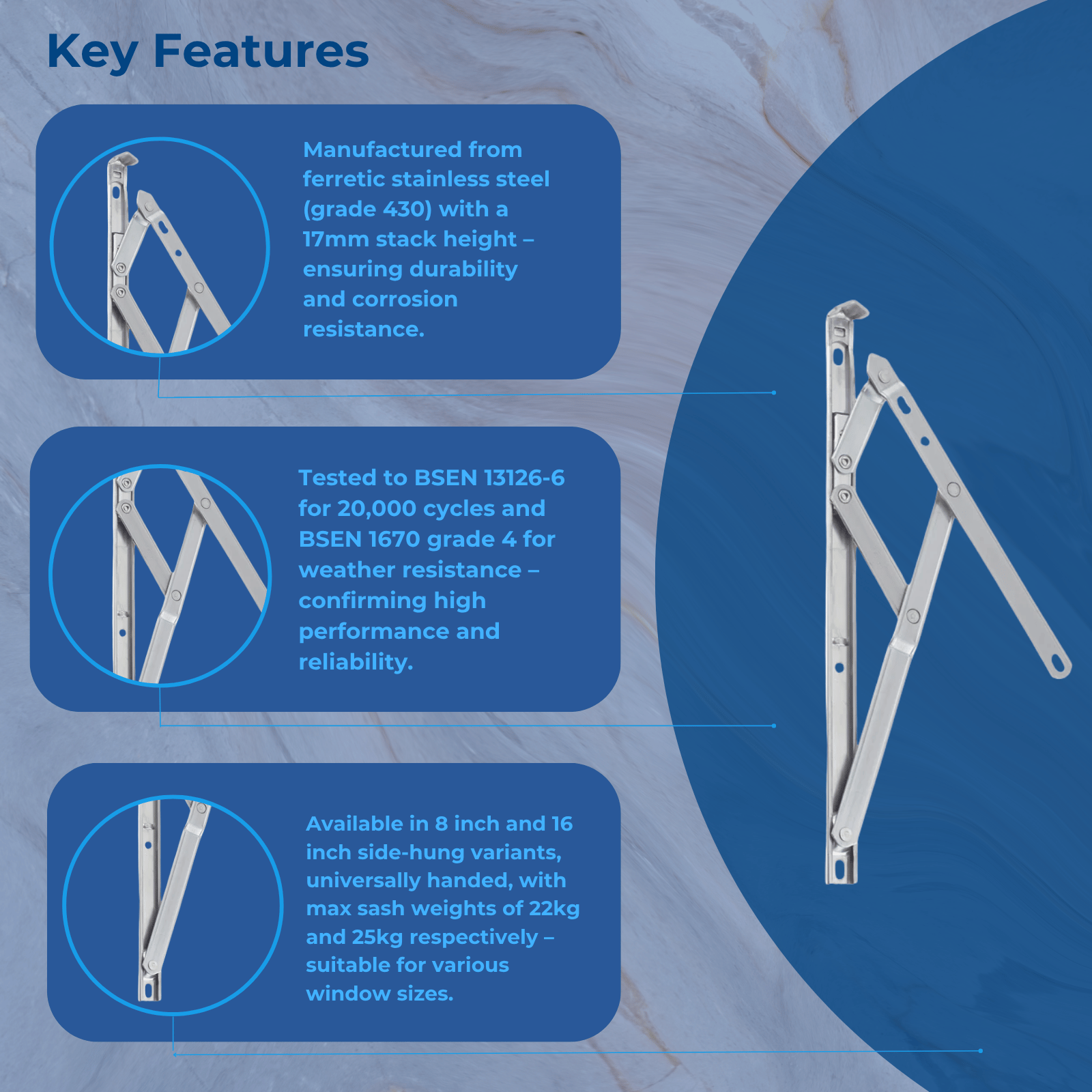

Manufactured from: Ferretic stainless steel (Grade 430)

Stack Height: 17mm

Available Sizes: Side Hung – 8", 16"

Performance:

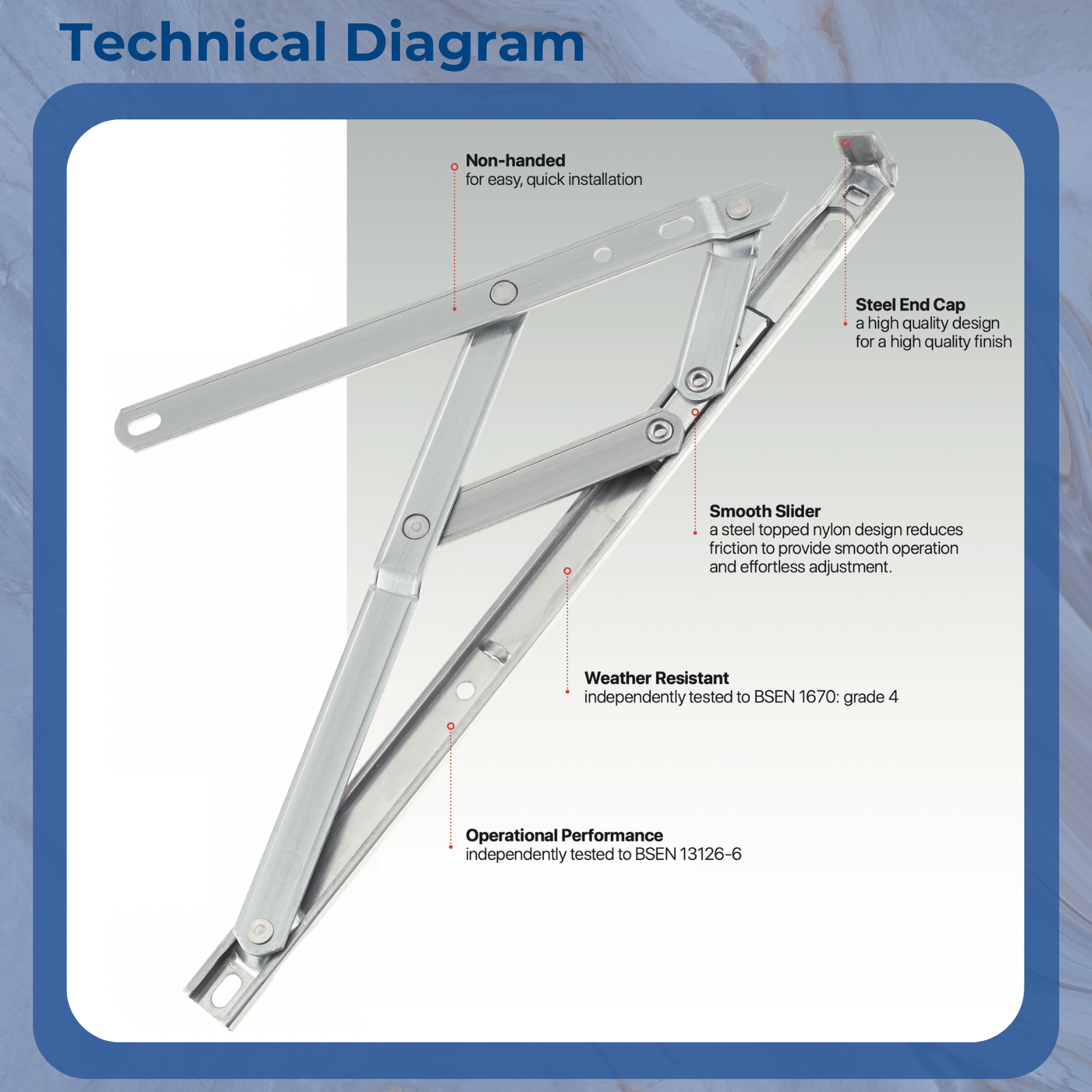

Operational performance tested to BSEN 13126-6 (20,000 cycles)
Weather resistance tested to BSEN 1670 (Grade 4)

Guarantee: 10 Years

Technical Specifications

8 Inch Universal Kit

• 1 Pair of 8" Side Hung Hinges
• 17mm Stack Height
• 88° Opening Angle
• Max Sash Weight: 22kg
• Includes Fixing Screws

16 Inch Universal Kit

• 1 Pair of 16" Side Hung Hinges
• 17mm Stack Height
• 85° Opening Angle
• Max Sash Weight: 25kg
• Includes Fixing Screws

What's In The Kit?

1 pair of universally handed window hinges
