GU Europa Lift Lever Multipoint Door Lock – Latch, Deadbolt, 2 Rollers, Bottom Shootbolt
GU Europa Lift Lever Multipoint Door Lock – Latch, Deadbolt, 2 Rollers, Bottom Shootbolt

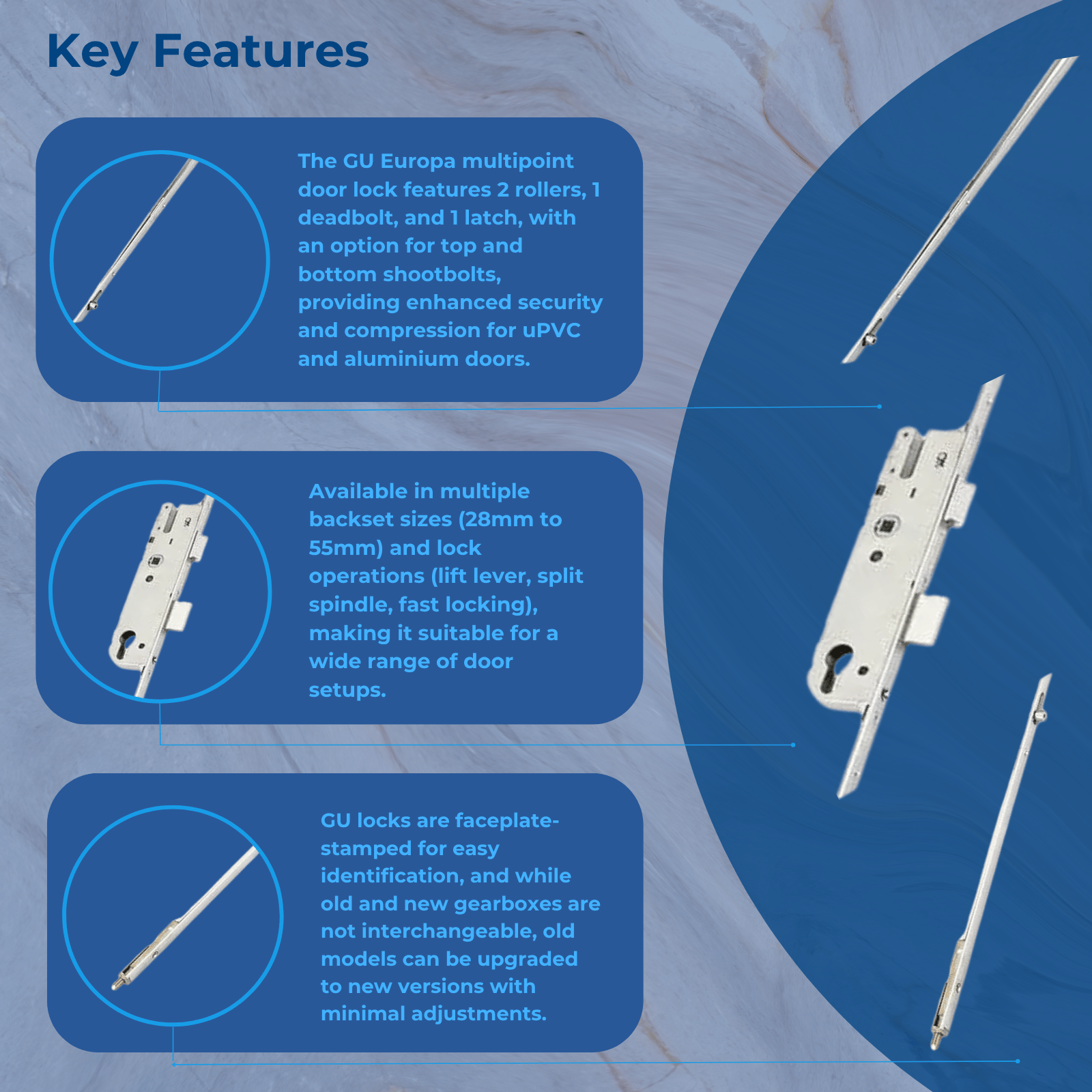

This GU Europa multipoint door lock features a high-security configuration with 2 rollers, 1 deadbolt, and 1 latch, designed to provide enhanced compression and reliability for uPVC and aluminium doors. It includes a bottom shootbolt and serrated rail to accommodate an optional top shootbolt, offering additional locking strength for double-door setups.
About the GU Europa Range
The GU Secury Europa series includes lift lever and split spindle-operated multipoint door locks. While some suppliers may still use older terms like "Ferco" or "GU Ferco," the modern 92mm PZ locks are now widely referred to as "GU". Older models with 70mm PZ are still labeled "Ferco."
These locks are easily identifiable by the GU logo stamped on the faceplate. If you are repairing or replacing an older door lock, check if the gearbox has a top corner cut-out (old style) or a vertical groove (new style). New and old gearboxes are not interchangeable, but replacing an old lock with a new version is possible with minor adjustments to the keeps or door alignment.
Compatibility and Features
- Locking Points: While configurations stay consistent, roller placement (inbound or outbound) can vary, so always confirm measurements.
- Deadbolts: Modern deadbolts are thicker than earlier versions; you may need to replace keeps to match.
- Backset Options: Available in 28mm, 35mm, 40mm, 45mm, and 55mm.
Operations
- Lift Lever: All backset sizes
- Split Spindle: 35mm and 45mm
- Fast Locking (Europa Plus): 35mm only
Gearbox Measurements
- Height: 191mm (excluding fixing lugs)
- Width: Backset + 16mm
- Latch: 32mm height
- Deadbolt: 35mm height
- Latch to Deadbolt Gap: 54mm
-
Fixing Screw Positions:
- Top to Middle: 108mm
- Middle to Bottom: 92mm
Security Features
- GU Secury MR locking system offers enhanced protection against sawing or forced entry.
- Chamfered deadbolts help draw the door tightly into the frame.
- Rollers improve compression and help reduce door warping while offering limited security.
- Roller Adjustment: +/- 1mm for better weather sealing.
Locking Operation (Lift Lever)
To Lock:
- Lift the handle to engage locking points.
- Turn the key to secure the deadbolt and rollers.
To Unlock:
- Turn the key to release the system.
- Push the handle downward to disengage locking points.
Latch Reversal Instructions
Insert a flat-blade screwdriver into the rectangular slot above the spindle, pull out the latch, reverse its direction, and reinsert.
Product Specifications
- Manufacturer: GU
- Backset: Selectable (see measuring guide)
- Centres (PZ): 92mm
- Faceplate: Selectable (see measuring guide)
- Spindle Size: 8mm (Single spindle)
- Rollers: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt configuration
- Operation: Lift Lever (other options available)
- Handing: Non-handed

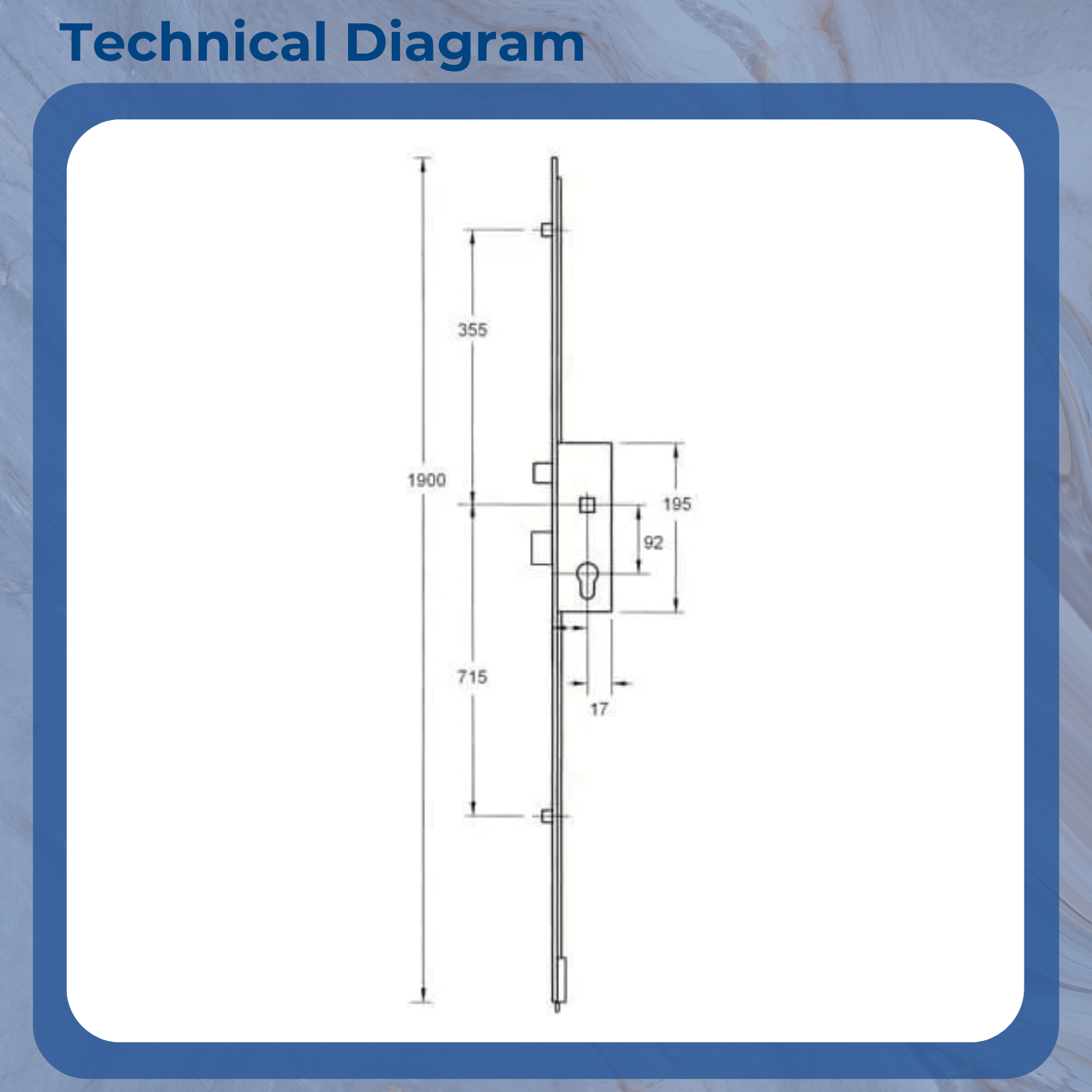

- Lock Height: 1900mm
- Distance Between Inner Locking Points: 1070mm
- Top Roller to Spindle: 355mm
- Bottom Roller to Spindle: 715mm
- Door Material Compatibility: uPVC, Aluminium
