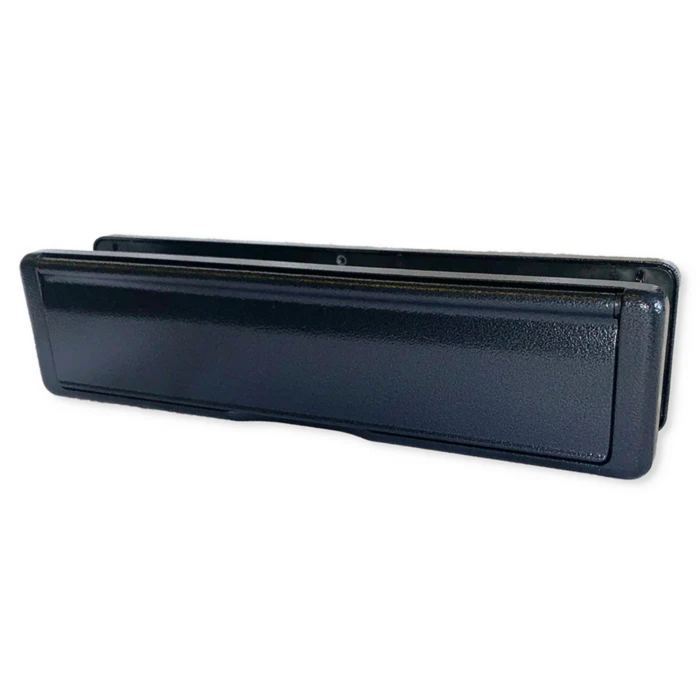

Fab & Fix Full Metal 12" Metal Sprung Letter Plate/Box UPVC Timber Doors
Fab & Fix Full Metal 12" Sprung Letter Plate/Box — uPVC & Timber Doors
Heavy-duty, all-metal sprung letter plate with anti-snap 180° opening flaps for ultimate security and durability.
This superb quality heavy-duty letter box set features unique anti-snap 180° flaps both externally and internally, ensuring the flaps sit flush and prevent damage from misuse. Constructed entirely from metal, it includes colour-matched flaps and surround, fully sprung with stainless steel springs, and comes with internal and external weather sealing for a draft-free environment. Stylish, smooth, and highly functional, it is well worth the investment.
For ultimate security, it can be fixed using the supplied blind bolts from the inside to prevent external removal, or alternatively with screw fixings. Available finishes include White, Polished Gold, Bronze, Satin Silver, Black, Antique Black, and Stainless Steel. Suitable for doors 40mm to 80mm thick.

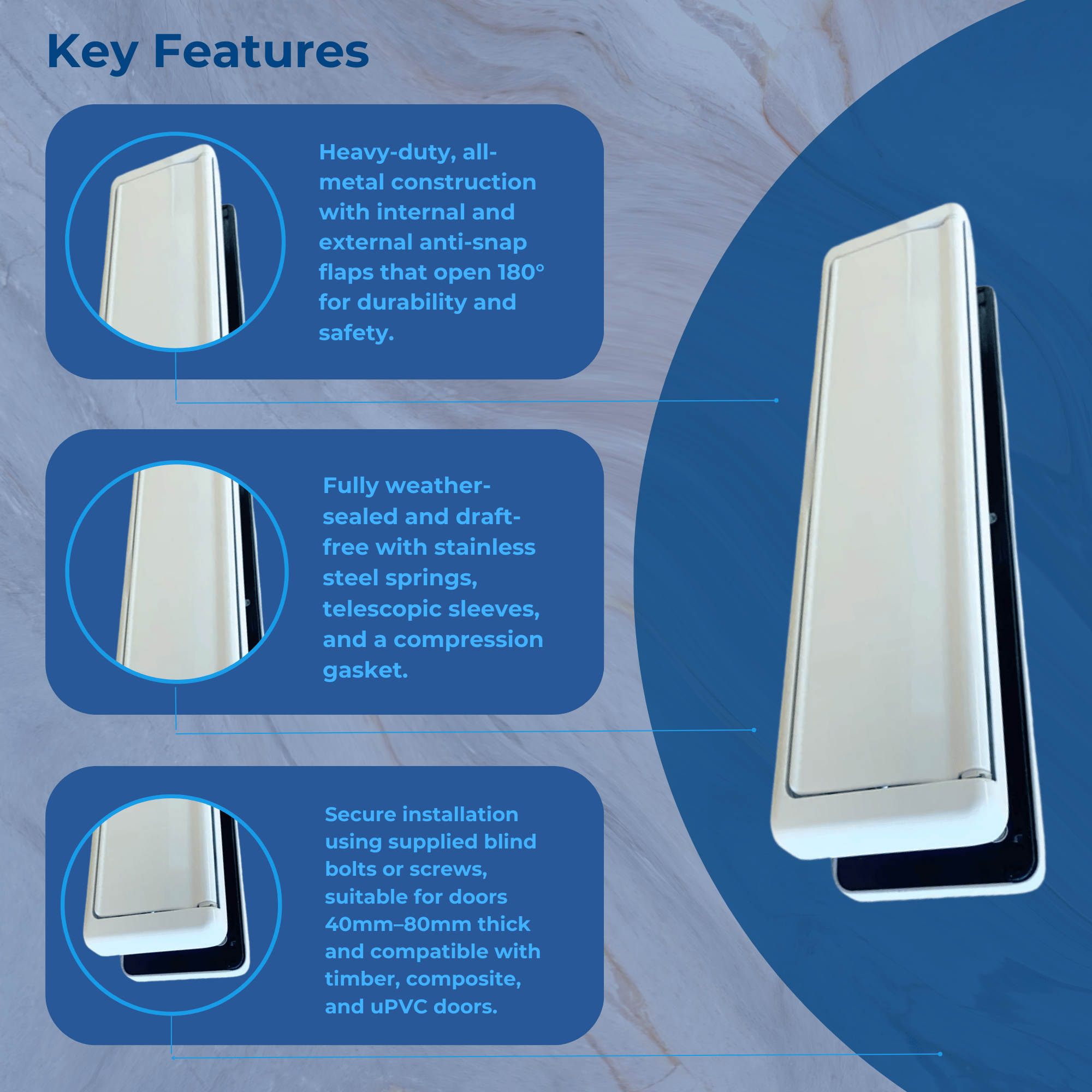

Features
- Solid die-cast construction
- Lifetime tested to 50,000 cycles
- Fully sealed backplate
- Telescopic sleeves
- Full internal and external weather sealing
- Internal and external colour-matched flaps
- External flap opens to 180° to prevent snapping
- Designed for Timber, Composite & uPVC doors
- Supplied with security fixing bolts and compression gasket
- Fits doors up to 80mm thick
- All-metal construction with stainless steel springs
- Suitable for acoustic door sets
What's in the Pack?
- 1 x Internal flap, tunnel, and surround with fitted brushes
- 1 x External flap, tunnel, and surround with foam draught seal
- 1 x Pack of assorted bolts with sleeves

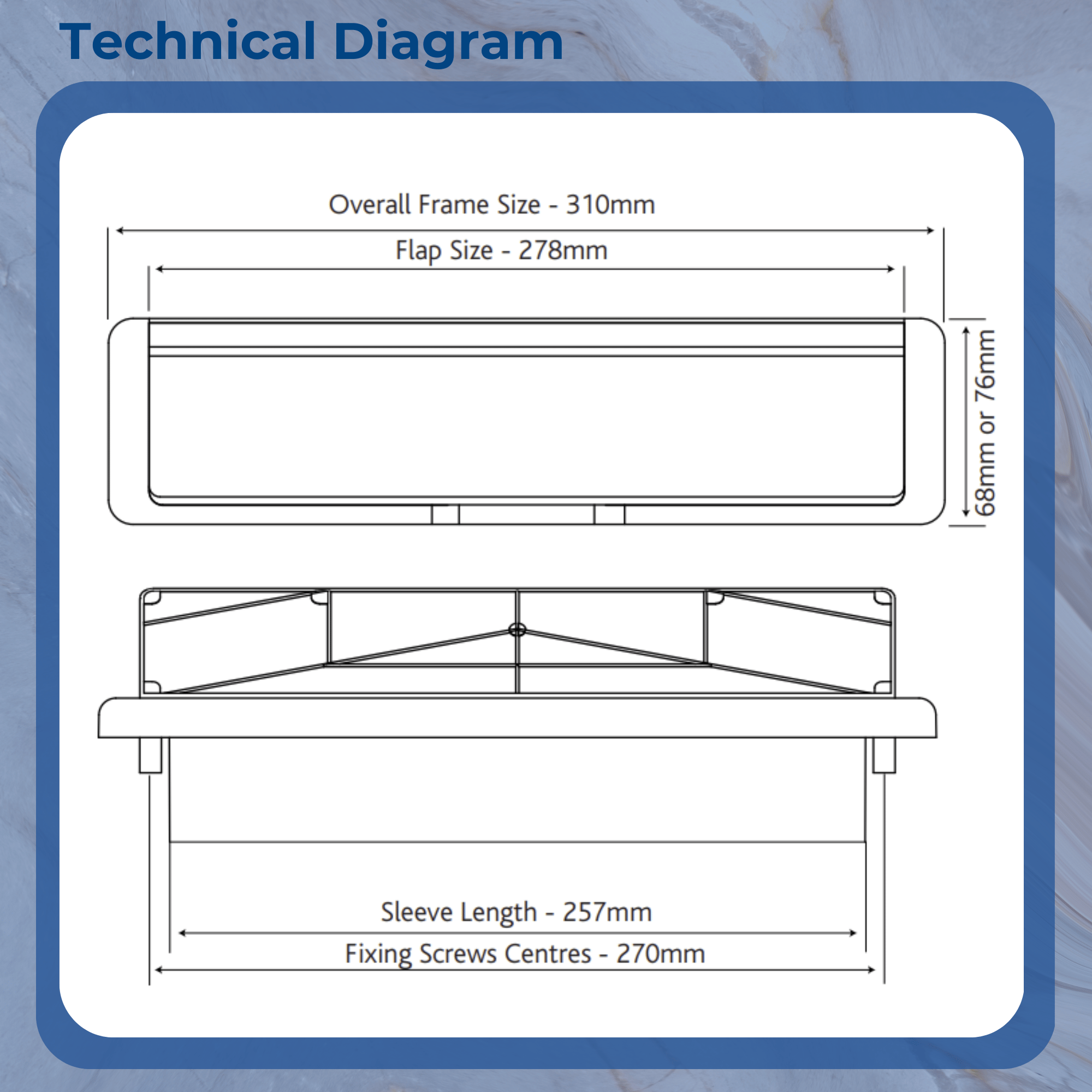

Measuring Guide
Remove your existing letterbox by lifting the flaps and unscrewing the fixing screws or bolts. Measure the exact width and height of the aperture and compare with the diagram. Measure the door mid-rail or panel thickness to determine the letter box thickness needed (40–80mm). Minor adjustments can be made using a hacksaw if necessary.
Dimensions
- External: 310mm width x 68mm height
- Internal Sleeve: 262mm x 45mm (minimum aperture size)
- Distance between screw holes: 270mm
