uPVC Universal Window Handle Inline Locking Espag Double Glazing White 40mm

Sold out
Original price £4.66 - Original price £4.66
Original price
£4.66
£4.66 - £4.66
Current price £4.66
Universal Inline Espag Window Handle
This universal window handle is a elegant and stylish handle which boasts a high quality and ergonomic design.This handle is suitable for all window espag and shoot bolt mechanisms.

Information
Universal handle fits both left and right hand openings
43mm screw hole centres
Child safe handle, requires button press
Comes with 2 fixing screws per handle
Comes with 1 key per handle
Comes with 1 screw cover cap per handle

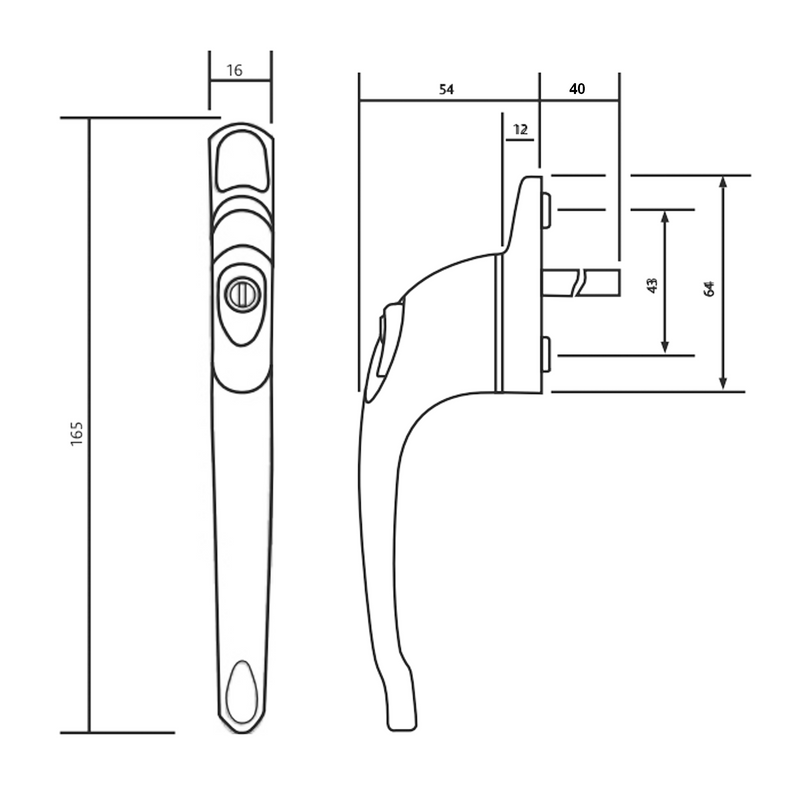

Technical Diagram-


Dimensions
Screw Hole Centres: 43mm
Spindle Length: 40mm
Spindle Width: 7mm Square

Measuring your handle
Screw Hole Fixing Centres:
Most espag handles are made to industry standards with 43mm screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:
These handles are of the inline type (Non-handed), therefore they will replace both left and right hand handles.

Spindle Length:
Remove the two screws fixing the handle to the window and measure from the base of the handle to the tip of the spindle.
Spindle width:
Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
