Fab Fix Nu Mail Heavy Duty 12" Sprung Letter Box Plate - Chrome - For UPVC & Wooden Doors

This superb quality heavy-duty letter box set is one of the best we have seen! The unique anti-snap 180° opening flaps both externally and internally make this an innovative design. Because the flaps sit flush to the door and open a full 180°, even the most clumsy postmen or inquisitive children will not cause damage by shearing off the flaps.

This stunning letterplate is of all metal construction with colour-matching flaps and surround. Both flaps are fully sprung with stainless steel springs. The deluxe letter box comes with full internal and external weather sealing to provide a draught-free environment. Stylish, smooth, and very functional, it costs a little more but is well worth the extra.

For ultimate security, the deluxe letter box can be fixed using the blind bolts supplied, fastened from the inside to prevent removal from the outside. Alternatively, screw fixings can be used.

Available in White, Polished Gold, Bronze, Satin Silver, Black, Antique Black, and Stainless Steel. Suitable for door thickness from 40mm to 80mm.

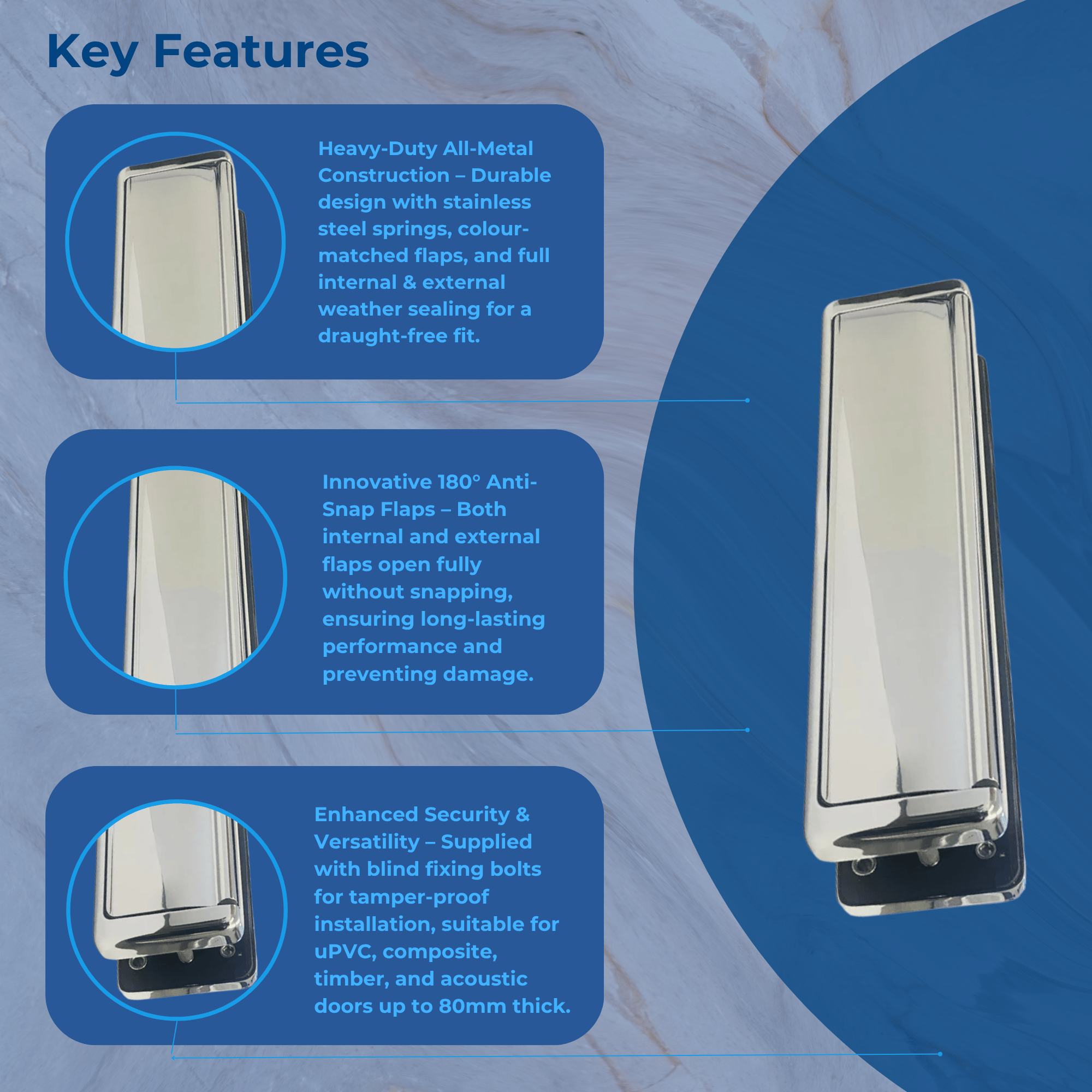

Features

• Solid die-cast construction
• Lifetime tested to 50,000 cycles
• Fully sealed backplate
• Telescopic sleeves
• Full internal and external weather sealing for a draught-free environment
• Internal and external colour-matching flaps
• External flap opens to 180° to prevent snapping
• Designed for Timber, Composite & uPVC doors
• Supplied with security fixing bolts and a compression gasket
• Will fit doors up to a thickness of 80mm
• All-metal construction with stainless steel springs
• Suitable for use on acoustic door sets

What's in the Pack?

• 1 x Internal Flap, Tunnel, and surround with fitted brushes
• 1 x External Flap, Tunnel, and surround with foam draught seal
• 1 x Pack of assorted bolts with sleeves

Measuring Guide

First remove your letterbox by lifting the flaps and unscrewing the fixing screws or bolts. Once removed, measure the exact width and height of the aperture (hole) and check the sizes against the diagram. Measure the door mid-rail or panel thickness to determine the letter box thickness needed (40-80mm). Any minor differences can easily be trimmed using a hacksaw or similar.

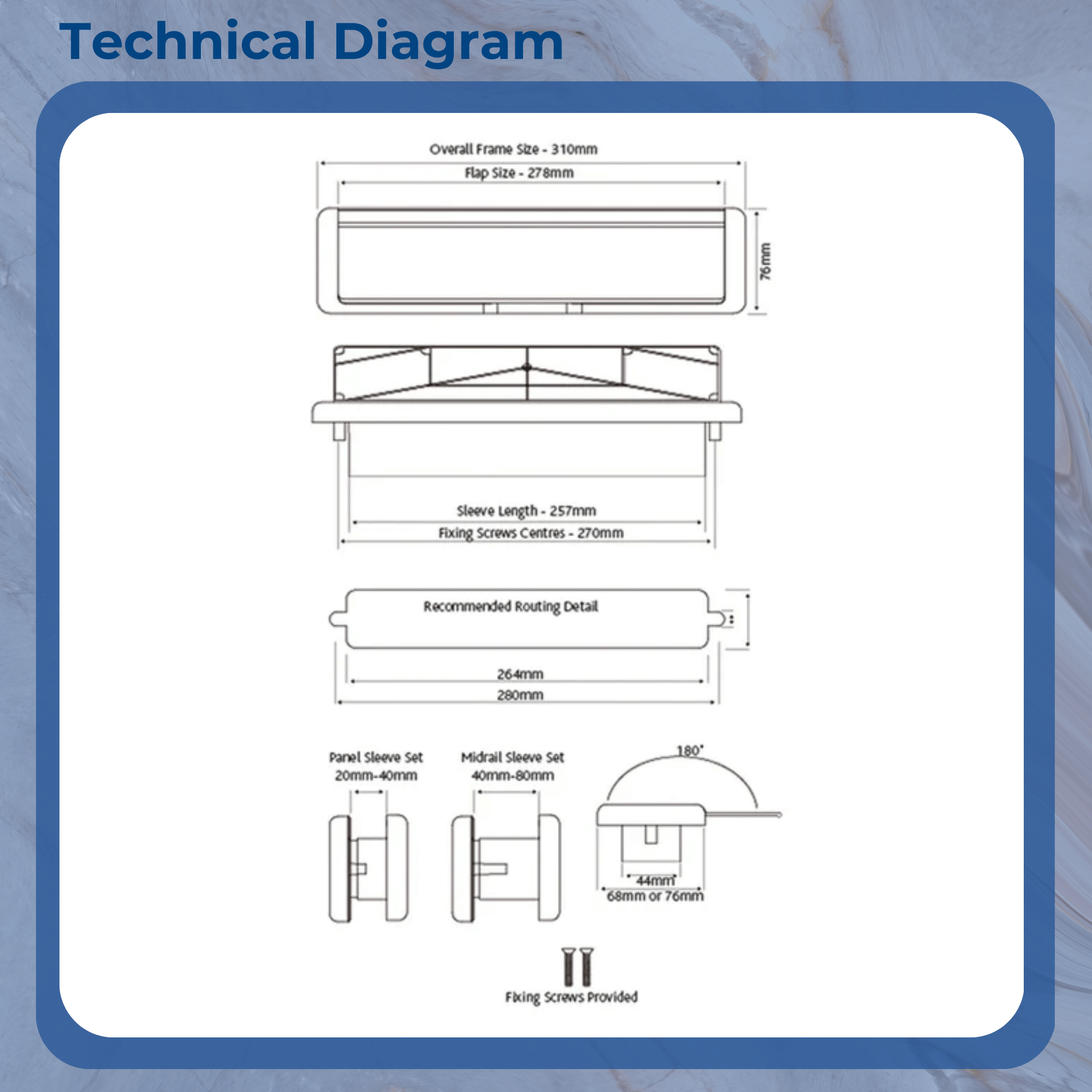

Dimensions

• External Dimensions: 310mm width x 68mm
• Internal Dimensions: Sleeve size 262mm x 45mm (minimum hole size required)
• Distance between screw holes: 270mm
