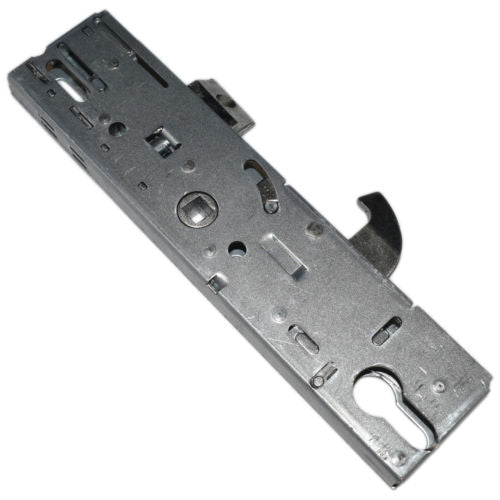

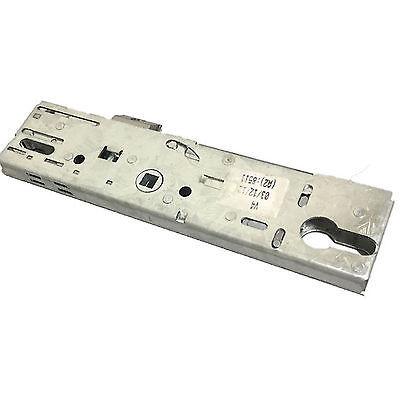

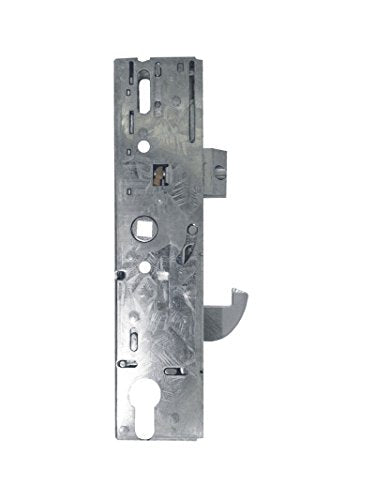

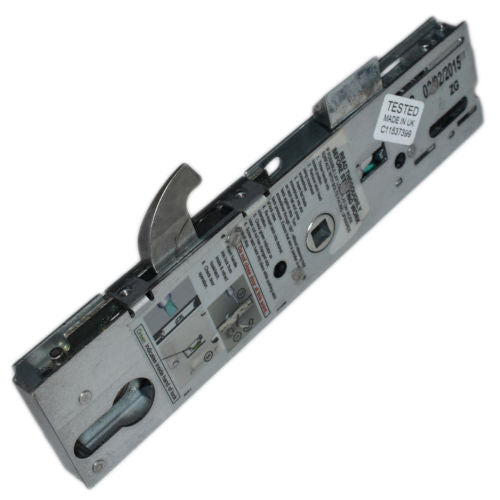

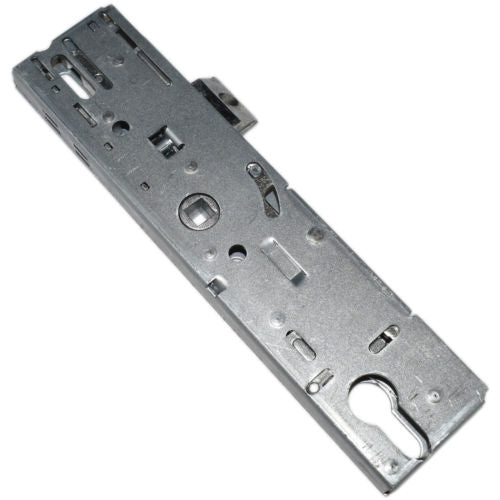

Yale YS170 Upvc Door Lock Case Gear Box 35mm Backset Split Spindle Version

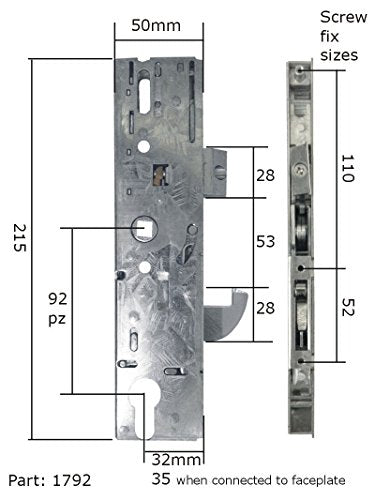

Spindle to Key: 92mm / 62mm
Backset: 35mm
Face Plate Dim: 16mm when connected to full lock plate
Op Type: Lever/Lever or Lever/pad Split spindle operated if required
Locking Points: connects to full length locking points


This Yale YS170 door lock is the full length standard height version multipoint lock. It has 3 hooks and 2 roller cam lock points. The centre hook is below the latch and replaces a more common deadbolt for increased security. The Yale YS170 door lock is the range of door locks now sold and commonly available from the Yale range and have discontinued the older ranges no longer made and available.


The door lock gearbox allows you to use a Lever / Lever handle or a lever pad handle  as it has a split spindle. If the split spindle is used the spindle allows the door lock to be locked and un-locked but will not operate the latch (snek) on the gearbox from outside without turning the key The internal handle will operate both the locks and the latch without the need to use the key. If you also need a new split spindle you can find one by searching for part 1793 split spindle. Search for: Winkhaus Upvc Split Spindle Pack Door Handle and Door Lock for Key Only Entry and you will then be able to use that function

Note: you can if you wish use the spindle only with a matching handle both sides and standard full length spindle (this is the most common use).
