Trojan

Stainless Steel Brushed silver Upvc Composite Lever Pad Door Handle PZ92/62

Regular price £28.99 £0.00
Shipping calculated at checkout.
This door handle is for composite doors only 44mm thickness maximum

High quality manufactured 304 stainless steel lever pad handle

BRUSHED SILVER
PZ92mm INTERNAL, PAD EXTERNAL 62MM

Internal/External handle manufactured in 304 stainless steel giving ultimate corrosion resistance

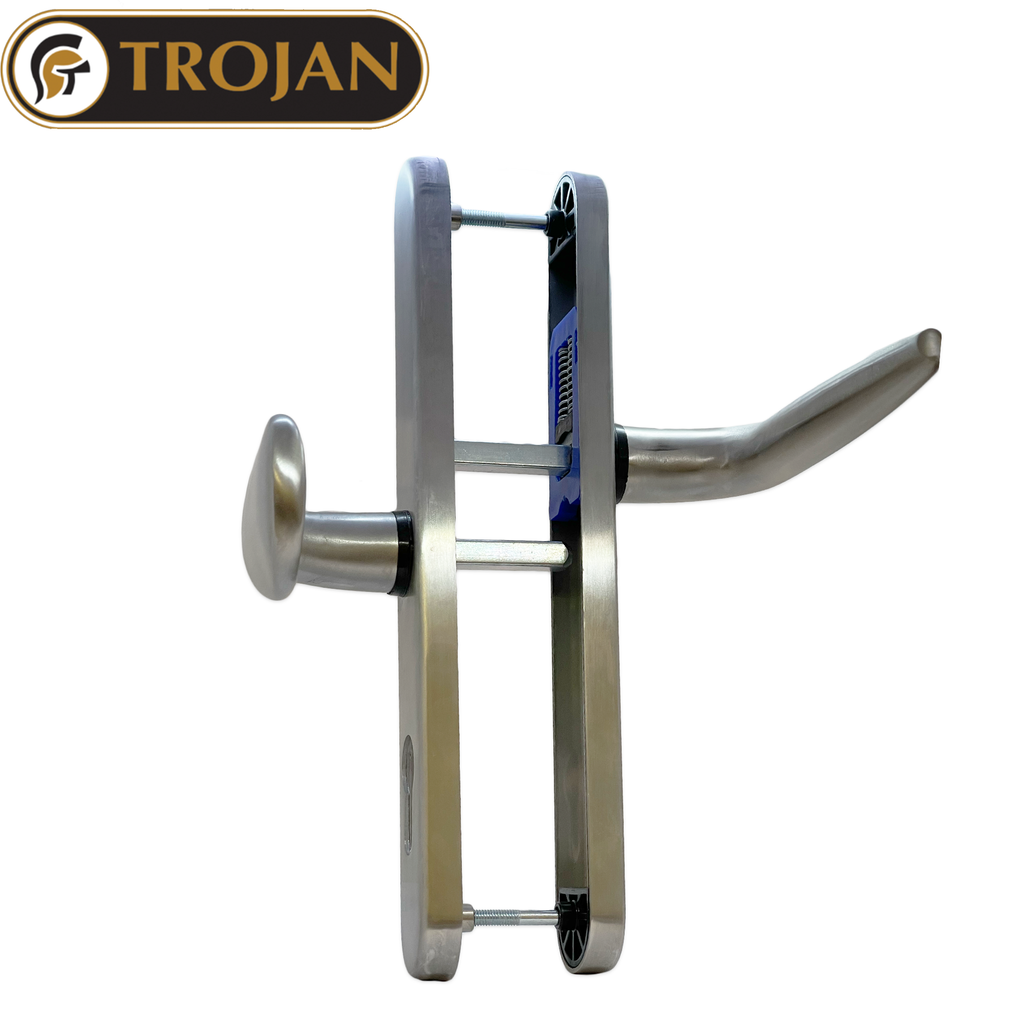

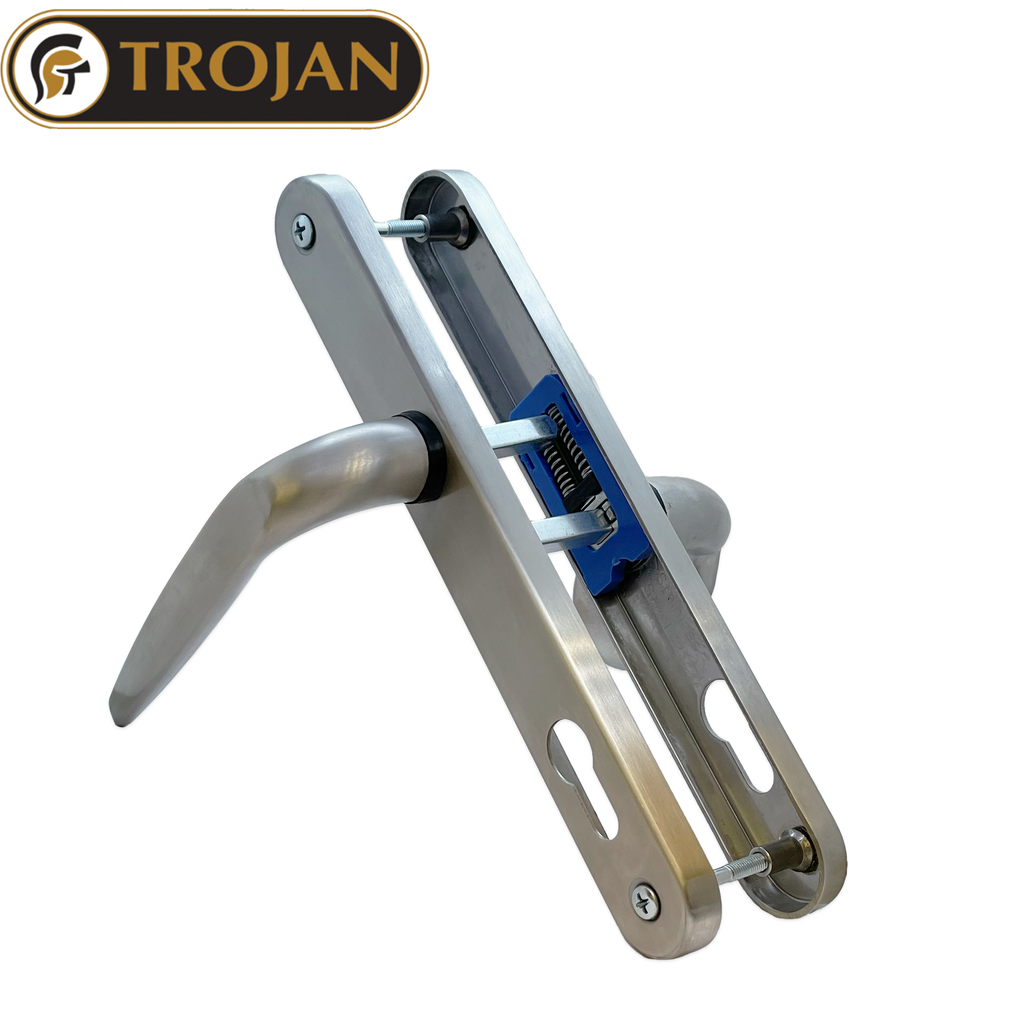

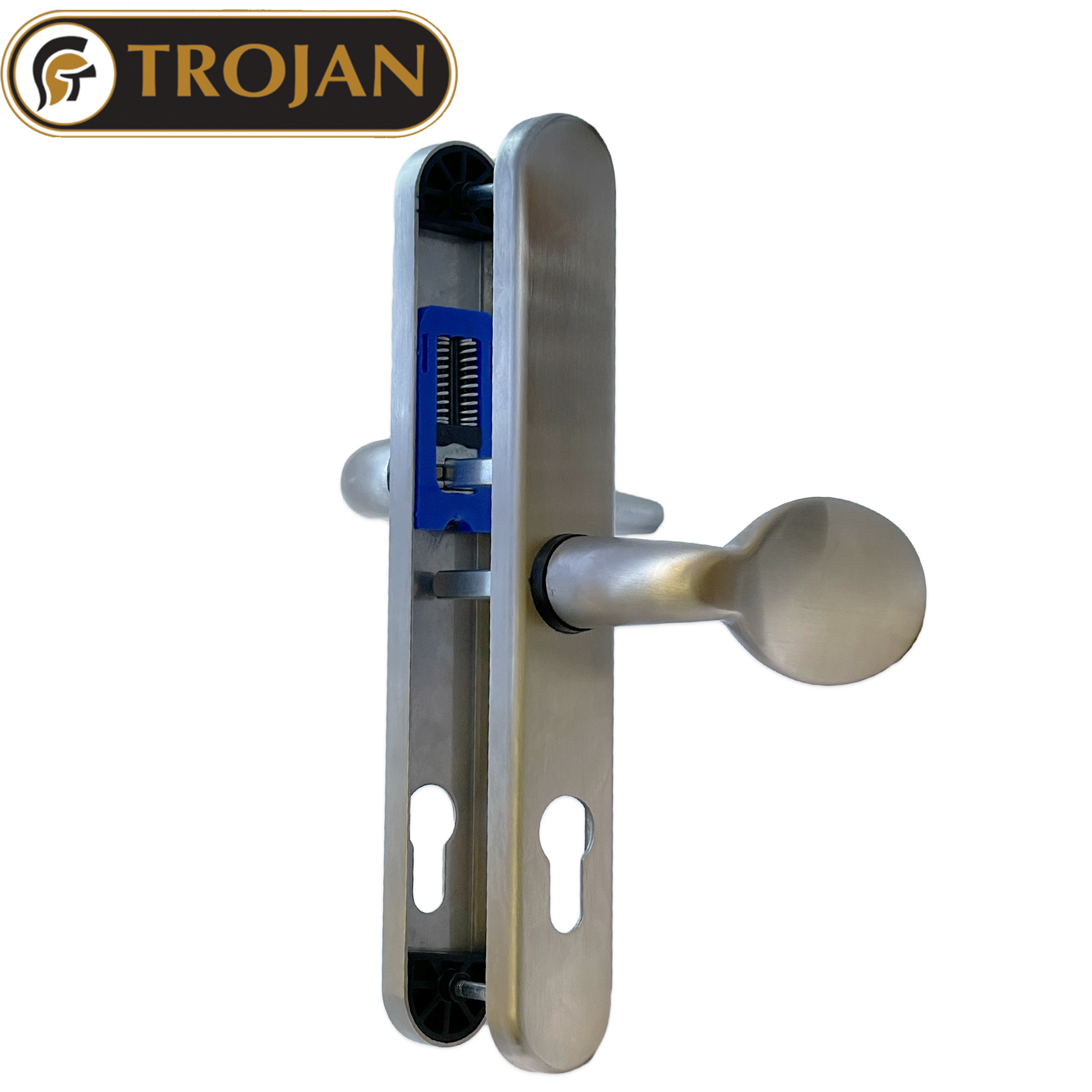

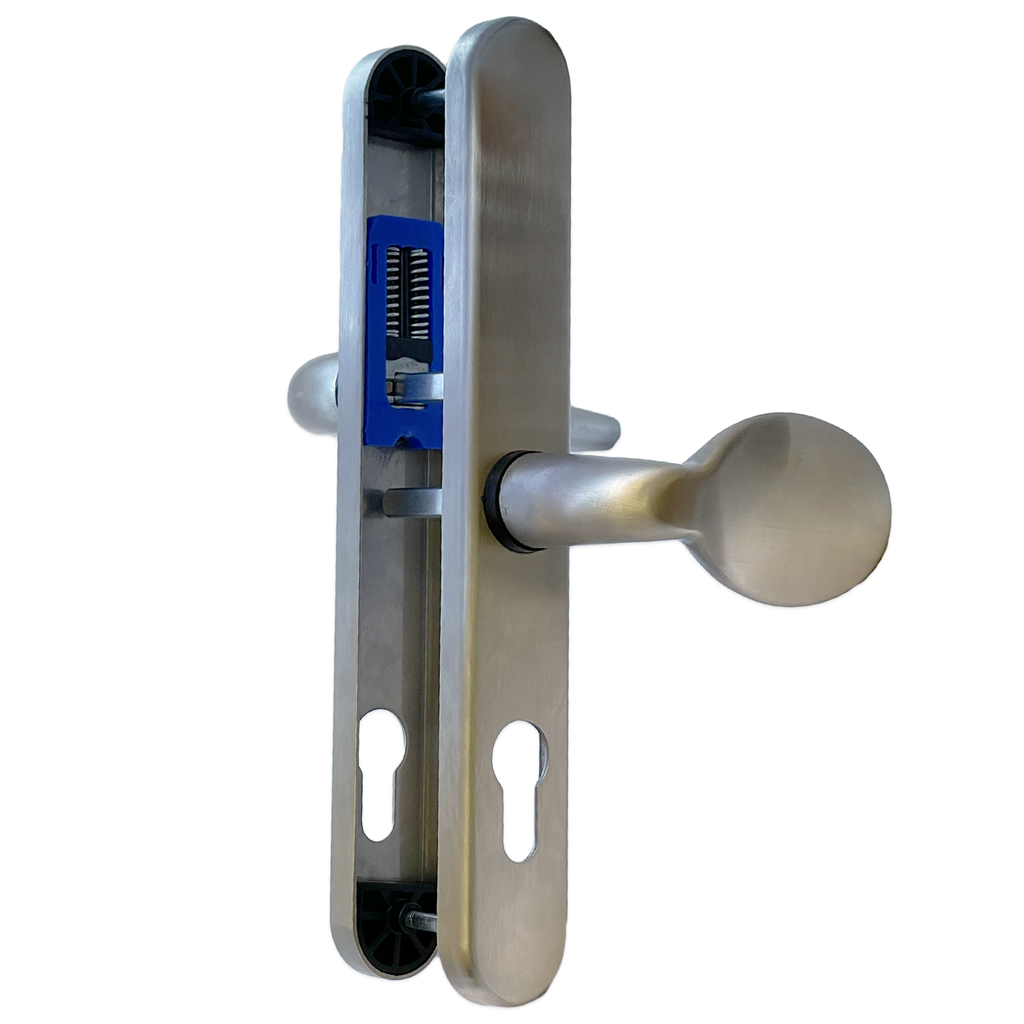

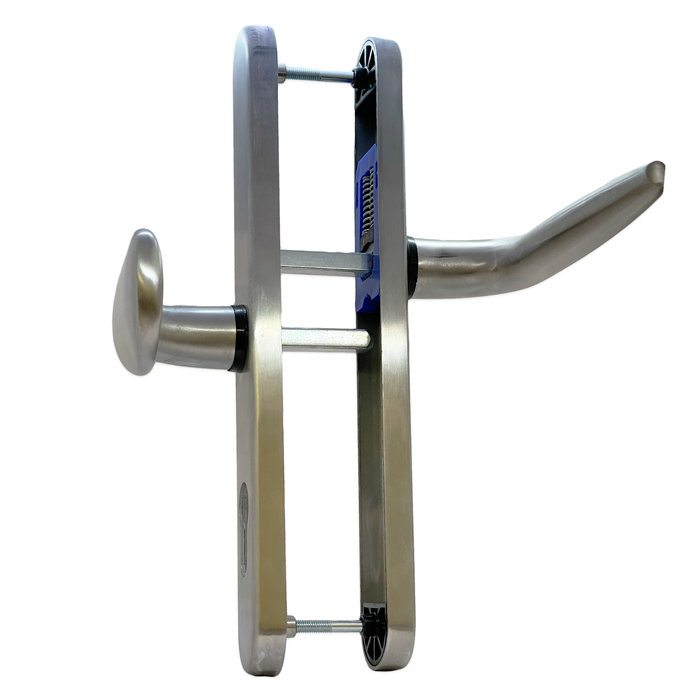

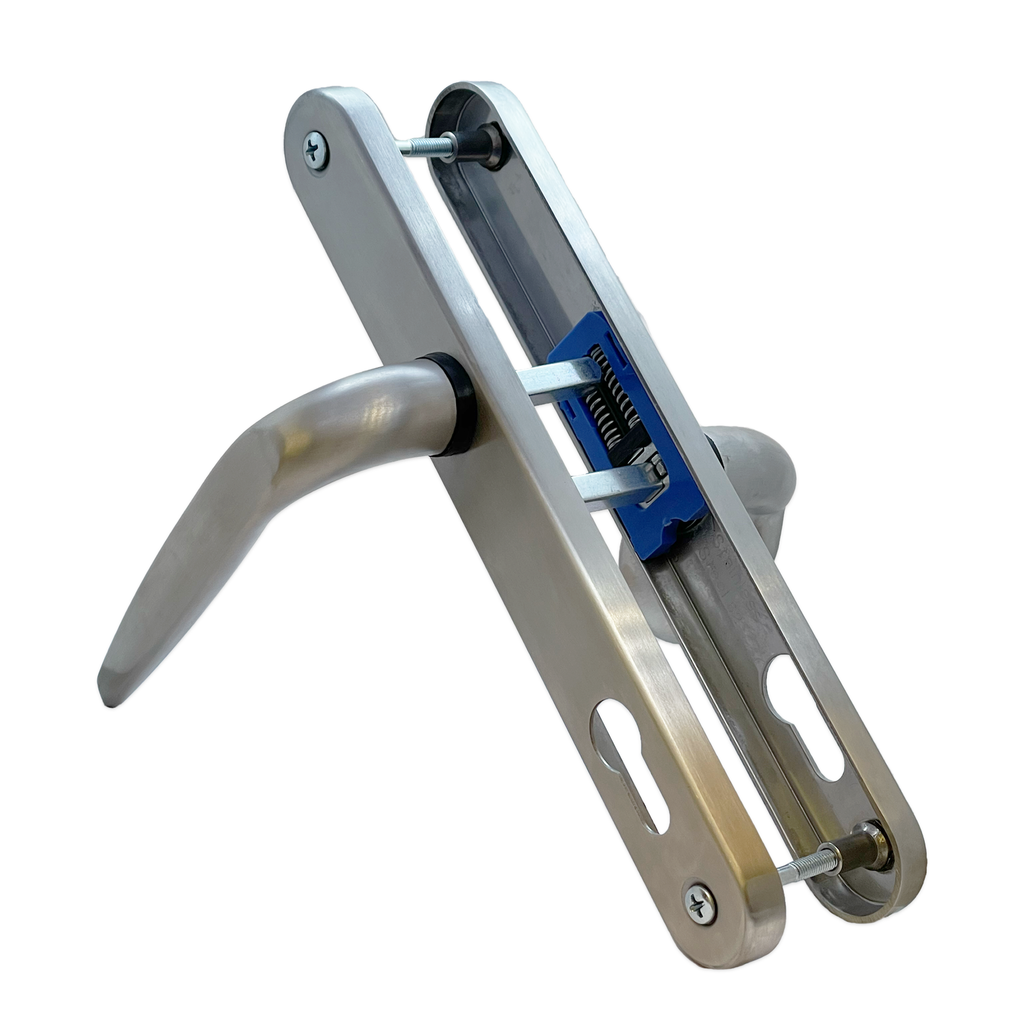

The Sparta door handle has been manufactured to an extremely high standard which offers outstanding product performance and value. The levers and backplate are manufactured in corrosion resistant stainless steel This Sprung lever/pad handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90 with no sag.


The Trojan Sparta Door handle set is designed to replace handles with 92mm cylinder centres (distance from centre of handle spindle to centre of barrel) and distance between screw hole fixings of 210mm. The Sprung lever/pad handle set is for use with lift lever operated multipoint locking mechanisms with a 92/62mm PZ centre.


Features:


Supplied as a pair complete with spindle and screws
Fully Sprung with 2 x spring cassettes supplied
Fully reversible to fit both left or right hung doors

What's in the pack?

1 x Set of Sparta 92PZ/62 Lever Pad Door Handles
1 x Spindle
1 x Packet Fixing Screws

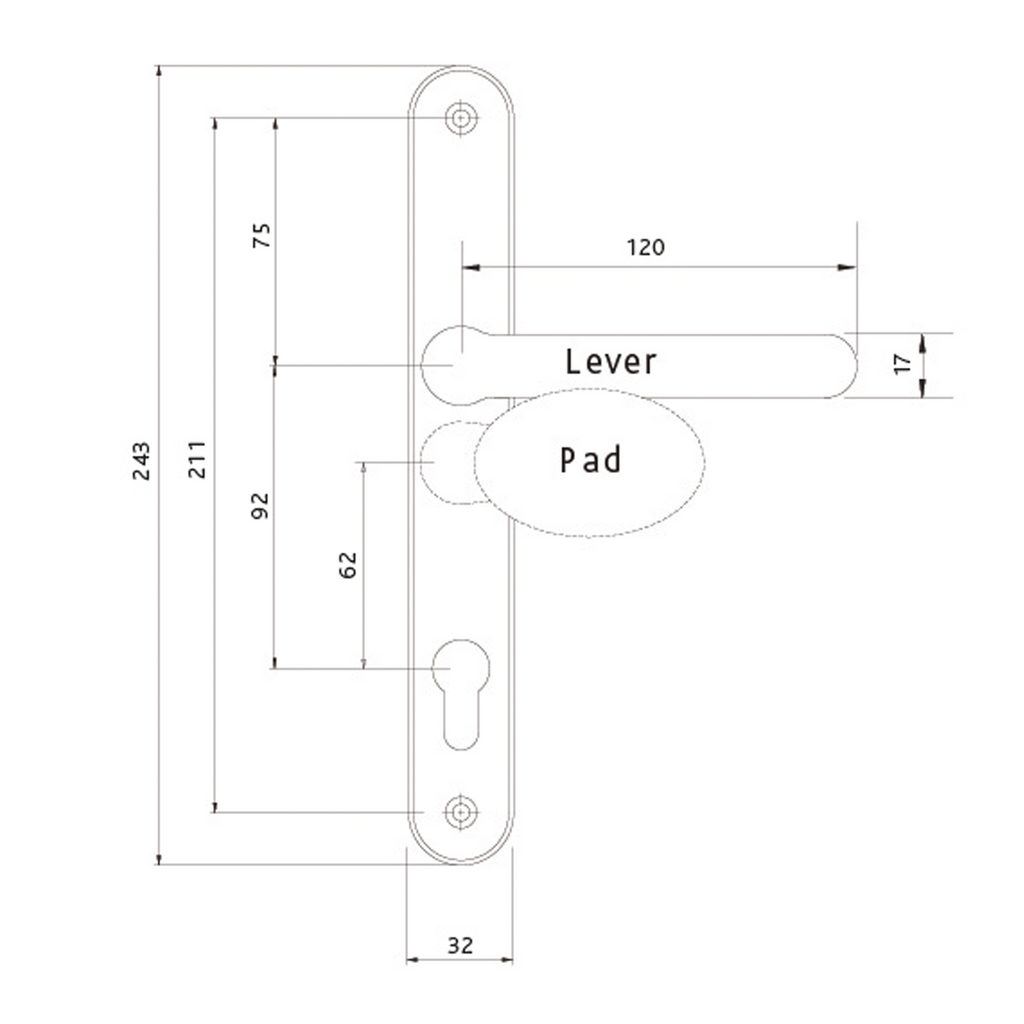

Dimensions:


PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel INTERNALLY EXTERNALLY PAD 62mm
Spindle Size: 8mm
Backplate width: 32mm
Backplate depth: 12mm
Backplate length: 243mm
Distance between screw hole centres: 211mm



Technical Information
