Refurb Kit – 2 Large Hook Multipoint Door Lock Repair Kit for uPVC & Composite Doors – 35mm or 45mm Backset

What's Included?

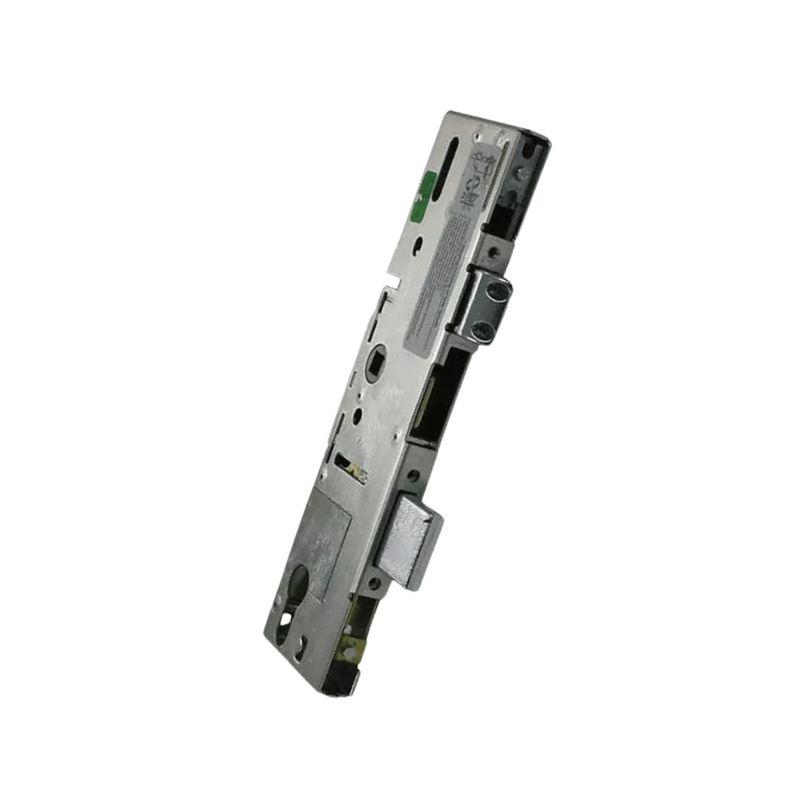

• 1 x Central gearbox with latch & deadbolt

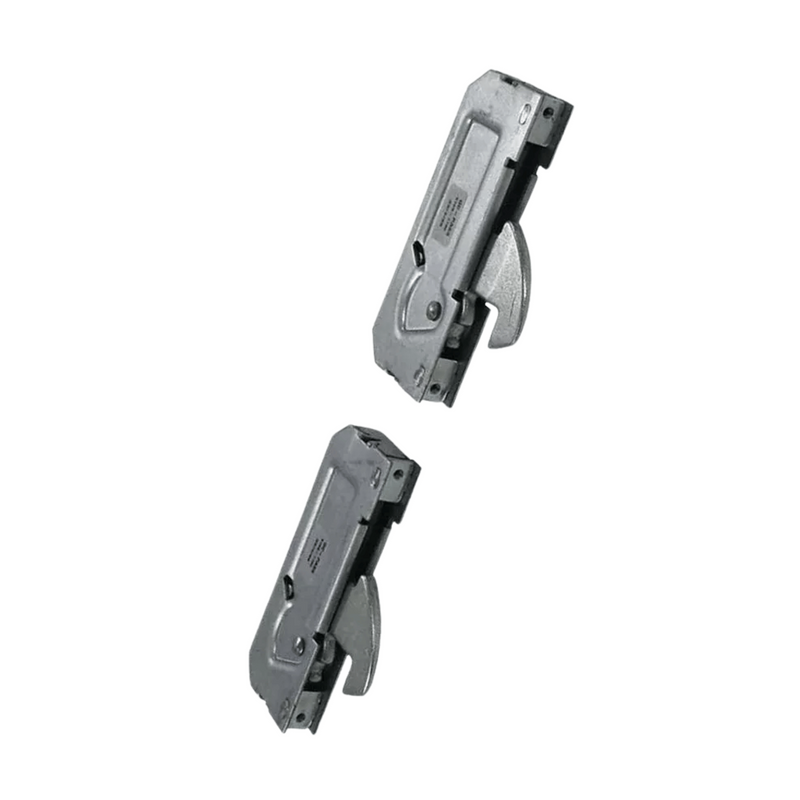

• 2 x Large hook cases (opposing direction)

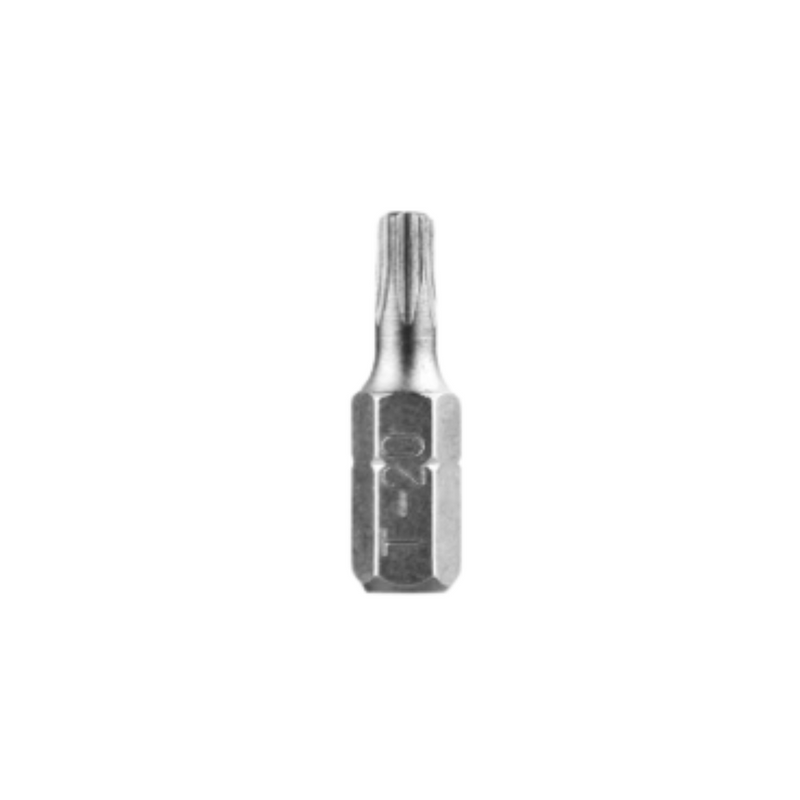

• 1 x T20 Torx bit

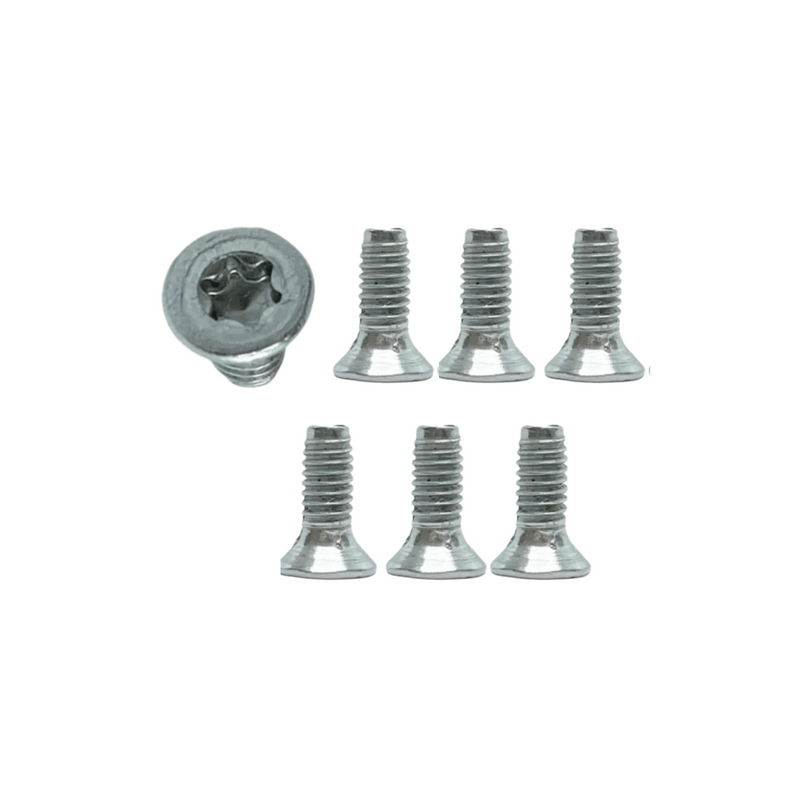

• 7 x M4.0 Grub Screws

Product Information

Refurbish your split spindle multipoint door lock with this all-in-one Multipoint Lock Repair Kit, designed for systems featuring a latch and deadbolt centre case and two large hookbolt locking points.

This convenient and compact repair solution includes everything needed to overhaul a failed multipoint door lock—without the hassle of replacing the full-length mechanism. Packaged in a box no larger than a standard pizza box, it’s ideal for locksmiths, installers, and trade professionals looking to complete repairs quickly and efficiently.

Most multipoint door lock failures are caused by issues within the central gearbox, spindle follower, or locking points—while the faceplate and drive rods often remain undamaged. This refurbishment kit replaces all key bolt-on components, restoring the full function of the lock while allowing the reuse of existing hardware.

A major advantage of this system is its compact size, enabling professionals to keep van stock on hand for quick, one-visit repairs. No need to identify the exact lock model or wait for a full-length replacement to arrive. Simply select the matching refurb kit for the locking point and spindle configuration, install the new components onto the existing faceplate, and reinstate the door lock knowing that all critical parts are brand new.

No delays, no trimming, no bulky packages—just efficient, same-day repairs that save time and reduce return visits. This makes it easier to satisfy customers on the first call and avoid losing business due to stock delays or high full-length replacement costs.

Beyond convenience, this repair kit is a more sustainable solution. By reducing the size of packaging and eliminating the need for full-length replacements and next-day deliveries, vehicle emissions and waste are significantly lowered. This makes it the most eco-friendly option for restoring multipoint locking mechanisms on uPVC, timber, composite, and aluminium doors.

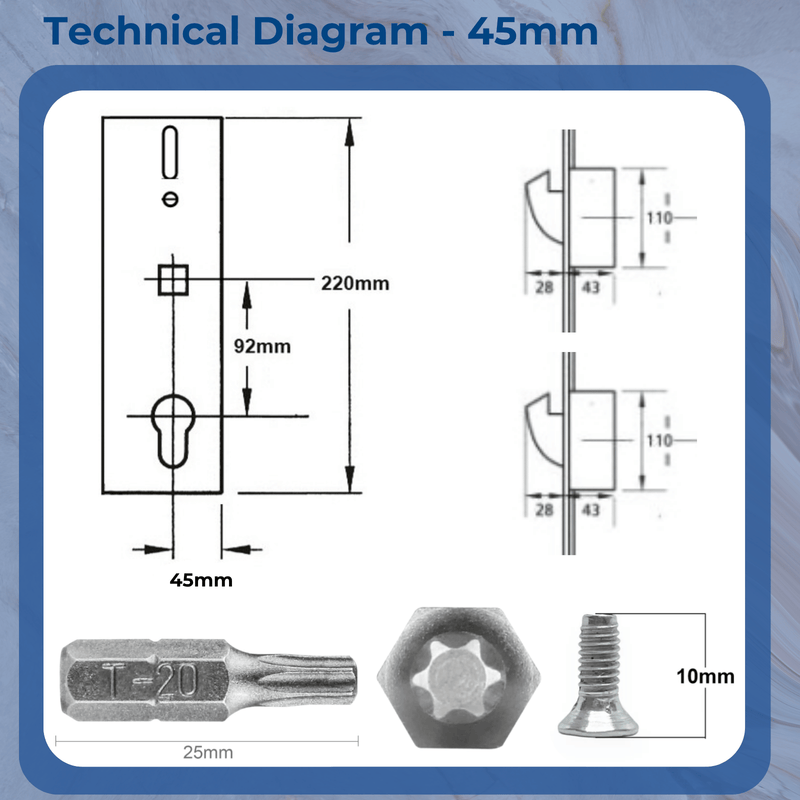

Product Specification

• Backset: Select from dropdown menu
• Centres (PZ): 92mm
• Spindle Size: 8mm
• Spindle Type: Split Spindle
• Hooks: 2 Large Hookbolt Cases
• Latch: 1
• Deadbolt: 1
• Main Gearbox: Latch & Deadbolt
• Operation: Select from dropdown
• Handing: Non-handed (Universal)
• Door Compatibility: uPVC, Aluminium, Timber, Composite
