Offset Lever Pad uPVC Multipoint Door Handles – 92/70mm PZ, Sprung, 203mm Screw Centres – For Secure uPVC Doors

The Lever Moveable Pad Multipoint Door Handle is a premium-quality handle set designed for uPVC doors fitted with multipoint locking systems. These durable handles are available in a range of attractive finishes including White, Black, Polished Chrome, Silver, Gold, and Polished Brass—offering both style and enhanced security.

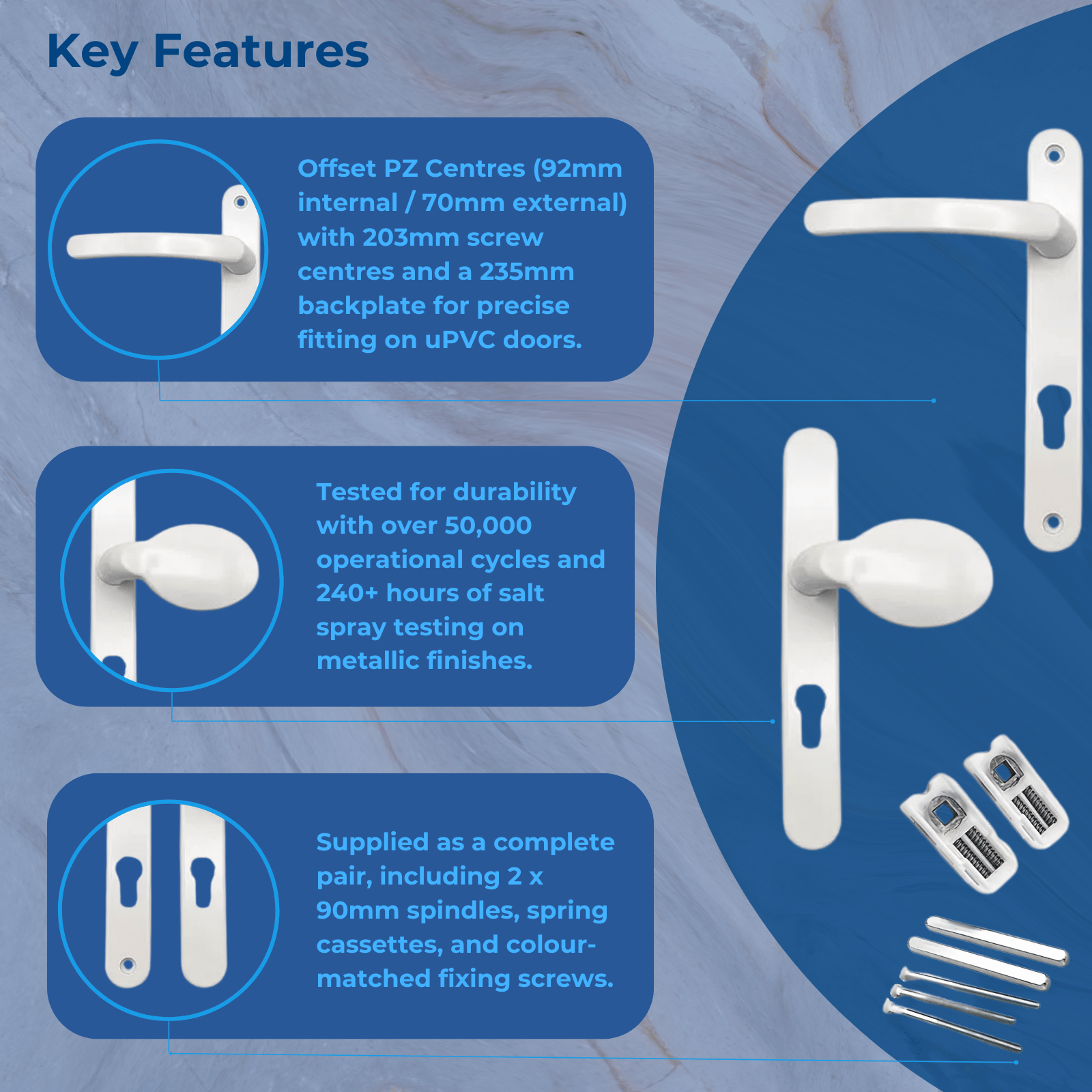

Engineered for performance, the handles feature offset PZ centres (92mm internal / 70mm external), a backplate measuring 235mm, and 203mm screw centres for precise fitting. Built to last, they have been cycle tested for over 50,000 operations, with metallic finishes undergoing 240+ hours of salt spray testing to ensure corrosion resistance.

Each pair of handles comes complete with all required components:

• 2 x 90mm spindles
• 2 x spring cassettes
• 2 x colour-matched fixing screws

Product Features:

• Sprung mechanism for smooth operation

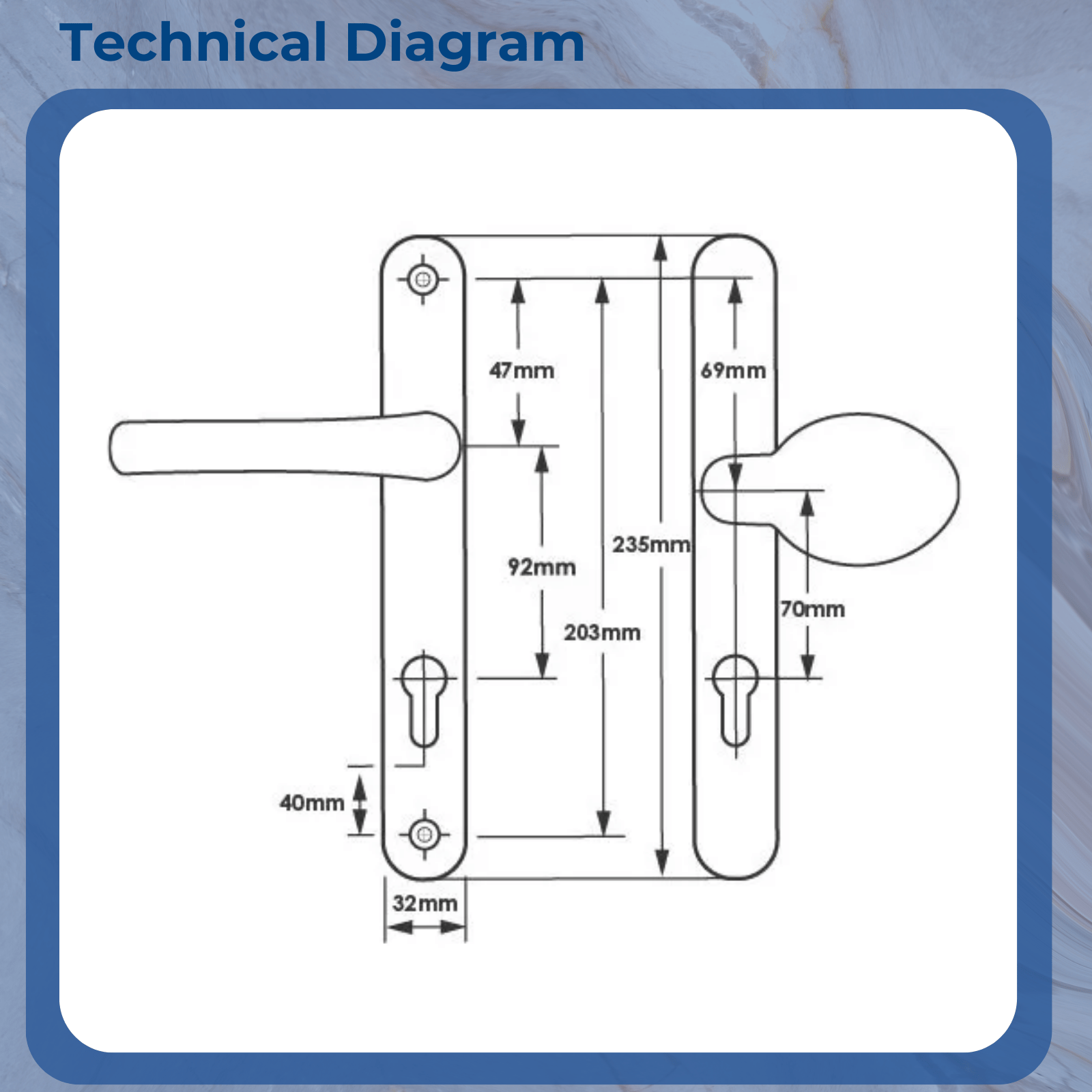

• Backplate Dimensions: 235mm (Length) x 32mm (Width)
• Internal PZ: 92mm / External PZ: 70mm
• Screw Centres: 203mm
• Euro to bottom screw: 40mm
• Internal top screw to spindle: 47mm
• External top screw to spindle: 69mm
• Non-handed – suitable for both left and right-hand doors
• Supplied as a boxed pair for safe storage and transport
