GU Europa Split Spindle Multipoint Door Lock – Latch, Deadbolt, 2 Rollers & 2 Mushroom Cams for uPVC & Aluminium Doors

Product Overview

Upgrade your door security with the GU Europa Split Spindle Multipoint Door Lock. Designed for uPVC and aluminium doors, this robust locking system features 2 compression rollers, 2 mushroom cams for anti-jemmy protection, 1 deadbolt, and 1 latch. Suitable for both residential and light commercial applications, it offers improved security, weather sealing, and door stability.

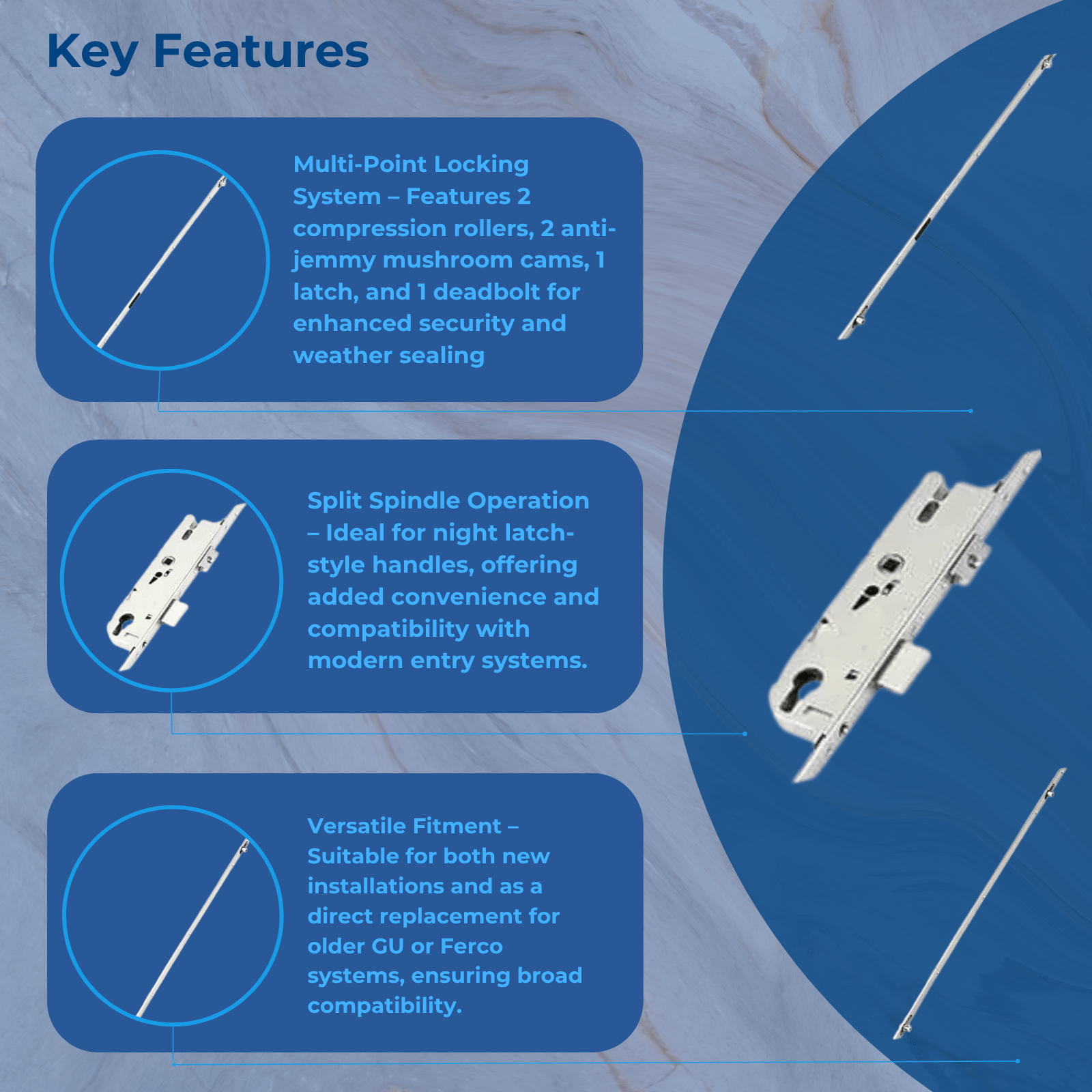

Key Features

• Split Spindle Operation – Ideal for night latch-style handles.
• Secure Multi-Point Locking – Includes 2 rollers, 2 mushroom cams, 1 deadbolt, and 1 latch.
• Compression Rollers – Enhance weather resistance and help prevent door warping.
• Mushroom Cams – Offer anti-jemmy protection by securely locking into keeps.
• Versatile Fitment – Suitable for new installations or replacing older GU or Ferco systems.

About the GU Secury Europa Range

The GU Secury Europa multipoint lock range is widely trusted for its strength and durability. Available in both split spindle (night latch-style) and lift lever variants, these locks offer installation flexibility. Older GU locks were often branded as “Ferco,” especially those with 70mm PZ centres. Modern 92mm PZ models are branded as GU.

Compatibility & Identification

GU locks are easy to identify by the stamped GU logo on the faceplate. Newer gearboxes feature a vertical groove at the top of the case, while older styles have a chamfered corner. Note: gearboxes are not interchangeable between the old and new styles.

Replacing Old GU Locks

Upgrading from older GU multipoint locks is usually straightforward. While most locking points align, the keeps may need adjusting or replacing to accommodate newer, thicker deadbolts. Mushroom and roller cam positions may also differ slightly.

Installation & Adjustments

• Latch Reversal:
  Older versions: Remove screws, reverse the latch, and refit.
  Newer versions: Insert a flat screwdriver into the slot above the spindle, pull the latch, reverse and reinsert.
• Roller Adjustment: +/-1mm for optimal weather sealing.

Lock Operation

• To Lock: Lift the handle to engage locking points, then turn the key to secure the deadbolt.
• To Unlock: Turn the key to release the deadbolt, then push the handle down to retract locking points and latch.

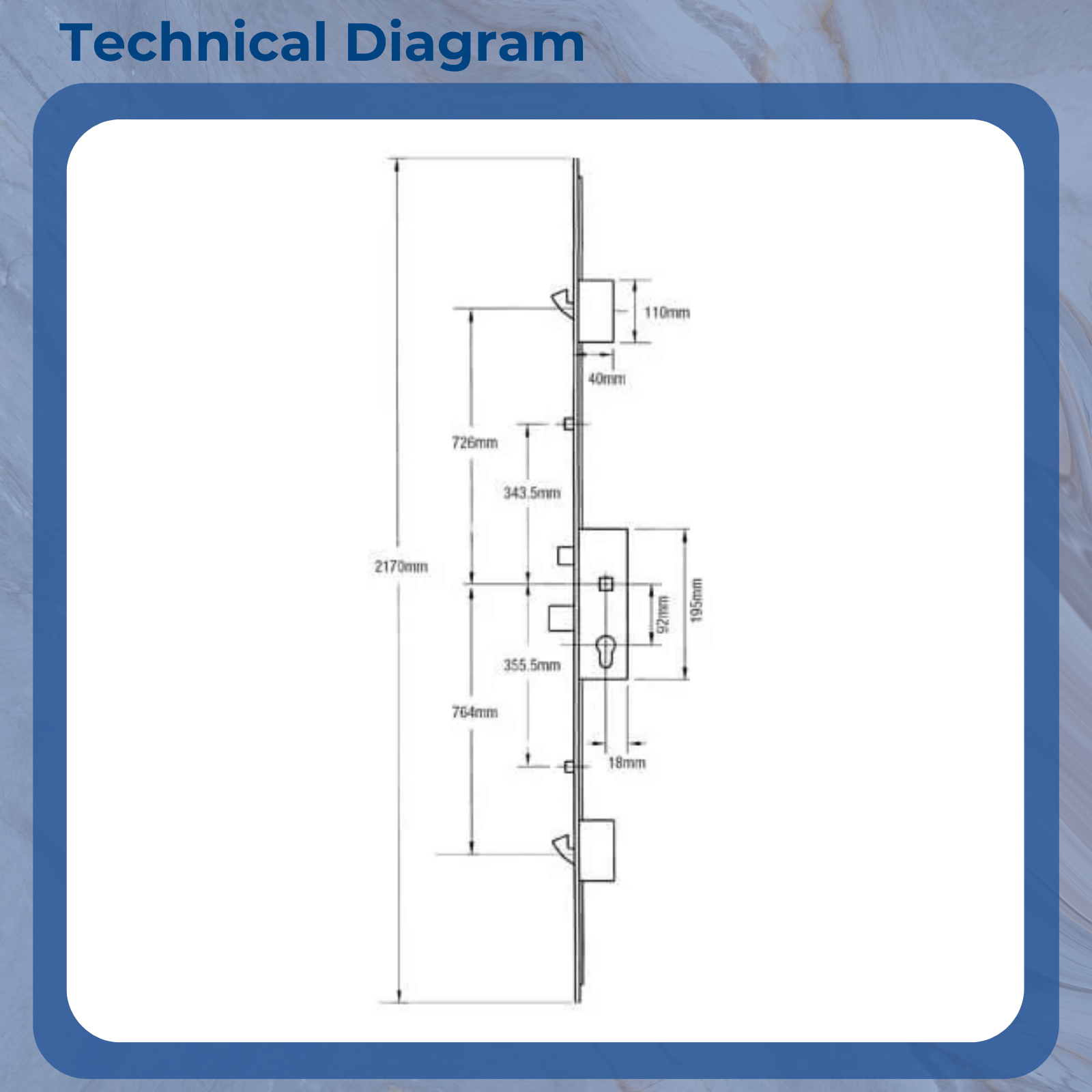

Technical Specifications

• Manufacturer: GU
• Backset: Select from drop-down – How to measure backset?
• Centres (PZ): 92mm – How to measure centres?
• Faceplate: Select from drop-down – How to measure faceplate?
• Spindle Size: 8mm Split Spindle
• Rollers: 2 (Compression)
• Mushroom Cams: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & Deadbolt Configuration
• Handing: Non-handed
• Inner Locking Distance: 670mm
• Outer Locking Distance: 1610mm
• Total Height: 2285mm
• Top Roller to Spindle: 279mm
• Bottom Roller to Spindle: 391mm
• Top Mushroom to Spindle: 749mm
• Bottom Mushroom to Spindle: 861mm
• Suitable Door Types: uPVC, Aluminium

Accessories Available

We stock a wide range of compatible GU Europa accessories, including keeps, spindles, handles, and replacement gearboxes.

Did You Know?

GU launched the original SECURY multipoint locking system in 1979 and introduced the self-locking SECURY Automatic system in 1996. Today, GU continues to be a trusted European brand for premium door locking systems.

Enhance your door’s security, weather resistance, and functionality with this premium GU Europa split spindle multipoint lock.
