GU Europa Multipoint Door Lock – Lift Lever with Latch & 3 Deadbolts for uPVC, Aluminium, Timber & Composite Doors

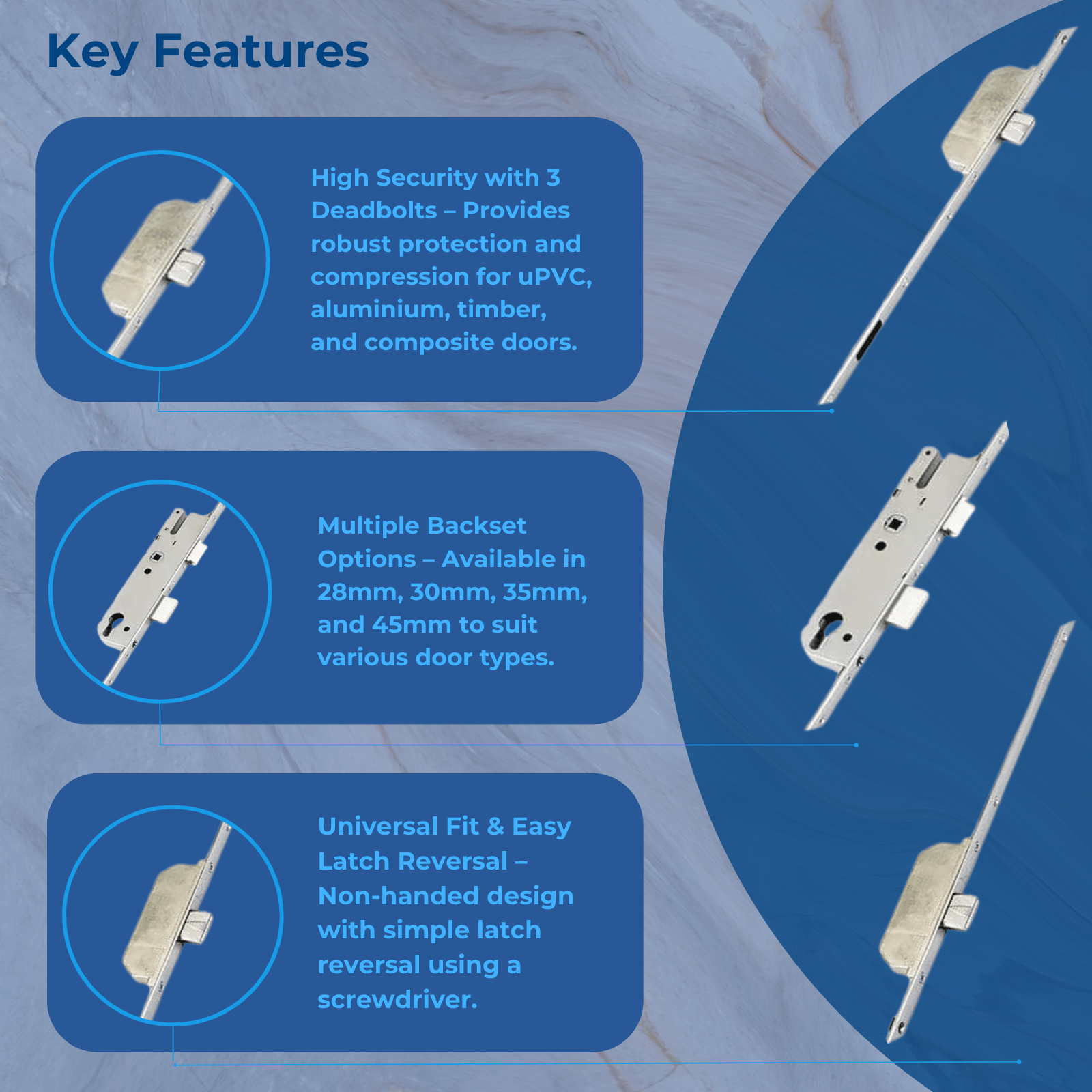

Enhance your door security with the GU Europa multipoint door lock, featuring three high-strength deadbolts and a central latch. This lock is engineered for maximum protection and compression, making it ideal for uPVC, aluminium, timber, and composite doors.

• Standard version: 1228mm spacing between top and bottom deadbolts
• Wide version: 1600mm spacing between deadbolts (also available)
• Backset options: 28mm, 30mm, 35mm, 45mm to suit various door profiles
• Centres (PZ): 92mm
• Operation: Lift lever mechanism

How to Reverse the Latch

Insert a flat-bladed screwdriver into the small rectangular slot above the spindle hole. While pulling the latch outward, rotate it, then reinsert to reverse the handing.

Product Specifications

• Manufacturer: GU (Gretsch-Unitas)
• Backset: Select from dropdown – How to measure the backset?
• Centres (PZ): 92mm – How to measure the centres?
• Faceplate Type: Select from dropdown – How to measure the faceplate?
• Spindle Size: 8mm (single spindle)
• Deadbolts: 3
• Latch: 1
• Gearbox: Includes both latch and deadbolt
• Operation: Select from dropdown – What does each operation mean?
• Handing: Non-handed (universal fitting)
• Distance Between Deadbolts: 1600mm
• Overall Lock Height: 2285mm
• Top Deadbolt to Spindle: 730mm
• Bottom Deadbolt to Spindle: 870mm
• Door Compatibility: uPVC, Aluminium, Timber, Composite
