GU Europa Multipoint Door Lock – Lift Lever Operation with Latch, Deadbolt & 2 Rollers for uPVC and Aluminium Doors

Upgrade your home or commercial property security with the GU Europa multipoint door lock, a reliable and durable solution designed for uPVC and aluminium doors. This lock features two compression rollers, a central deadbolt, and a latch, making it an ideal choice for enhancing both door sealing and protection against forced entry.

The GU Secury range—widely known as the "Europa" system for lever and split spindle variants—offers consistent locking configurations that simplify door manufacturing and replacement. Though historically referred to as GU Ferco, modern 92mm PZ versions now fall under the GU brand name.

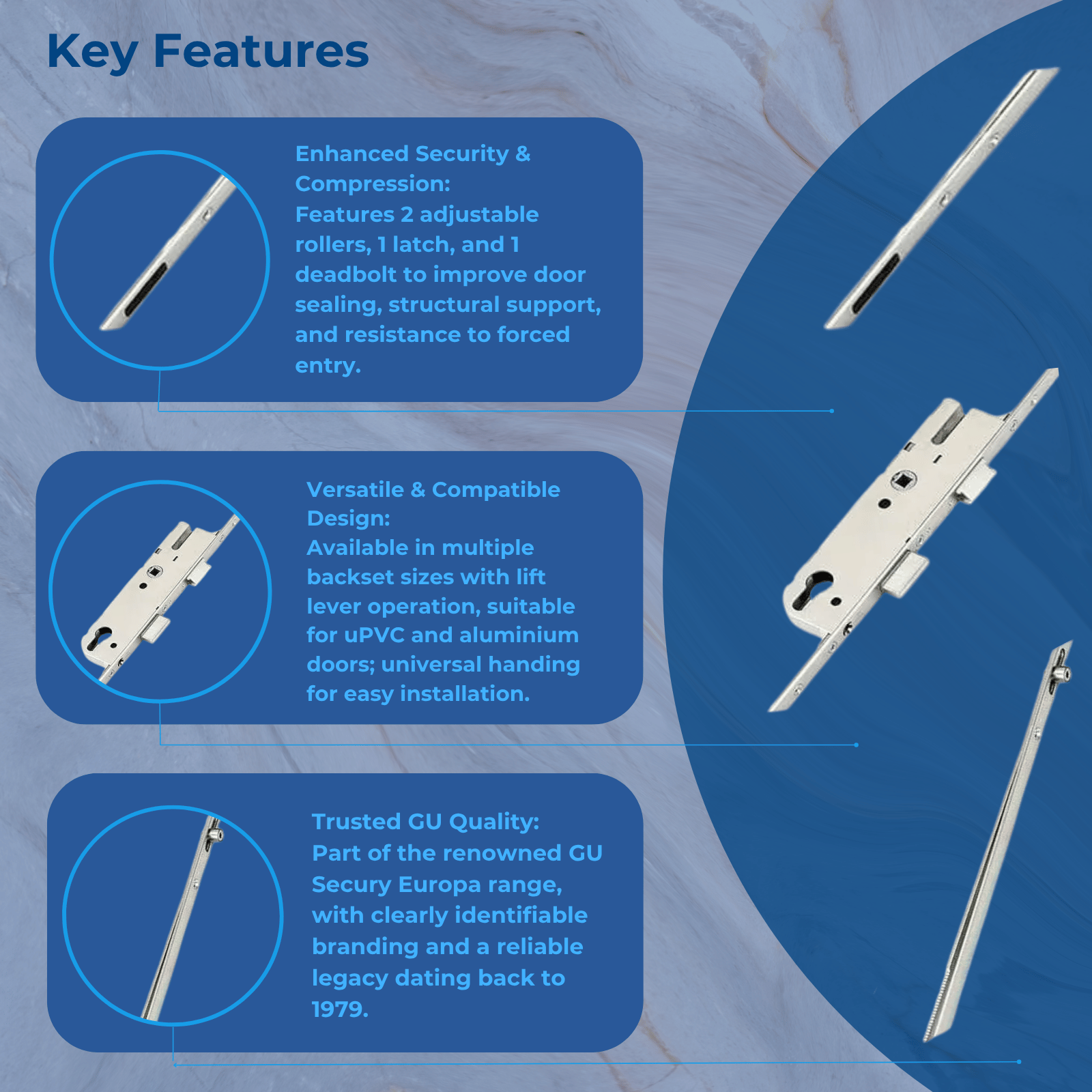

Key Features & Benefits

• Multi-Point Locking Security
  Equipped with 2 adjustable rollers, 1 central latch, and 1 robust deadbolt
  Improves weather sealing, compression, and structural integrity of the door
• Reliable Brand Heritage
  Manufactured by Gretsch-Unitas (GU), pioneers of the original multi-point locking system introduced in 1979
  Features the GU logo on the faceplate for easy identification
• Old vs. New Style Compatibility
  New style locks feature a vertical groove at the top of the gearbox
  Old style versions have a cut-out top corner on the gearbox
  Gearboxes are not interchangeable between styles
• Versatile Operation Options
  Available in lift lever and split spindle nightlatch functions
  Multiple backset sizes available: 28mm, 35mm, 40mm, 45mm, 55mm
  Suitable for non-handed installation
• Weather Sealing & Compression
  ±1mm adjustable rollers help pull the door snugly into the frame
  Enhances resistance to water ingress, dust, and warping

Technical Specifications

• Manufacturer: GU (Gretsch-Unitas)
• Backset Sizes: 28mm, 35mm, 40mm, 45mm, 55mm (select from dropdown)
• Centres (PZ): 92mm
• Spindle Size: 8mm (single spindle)

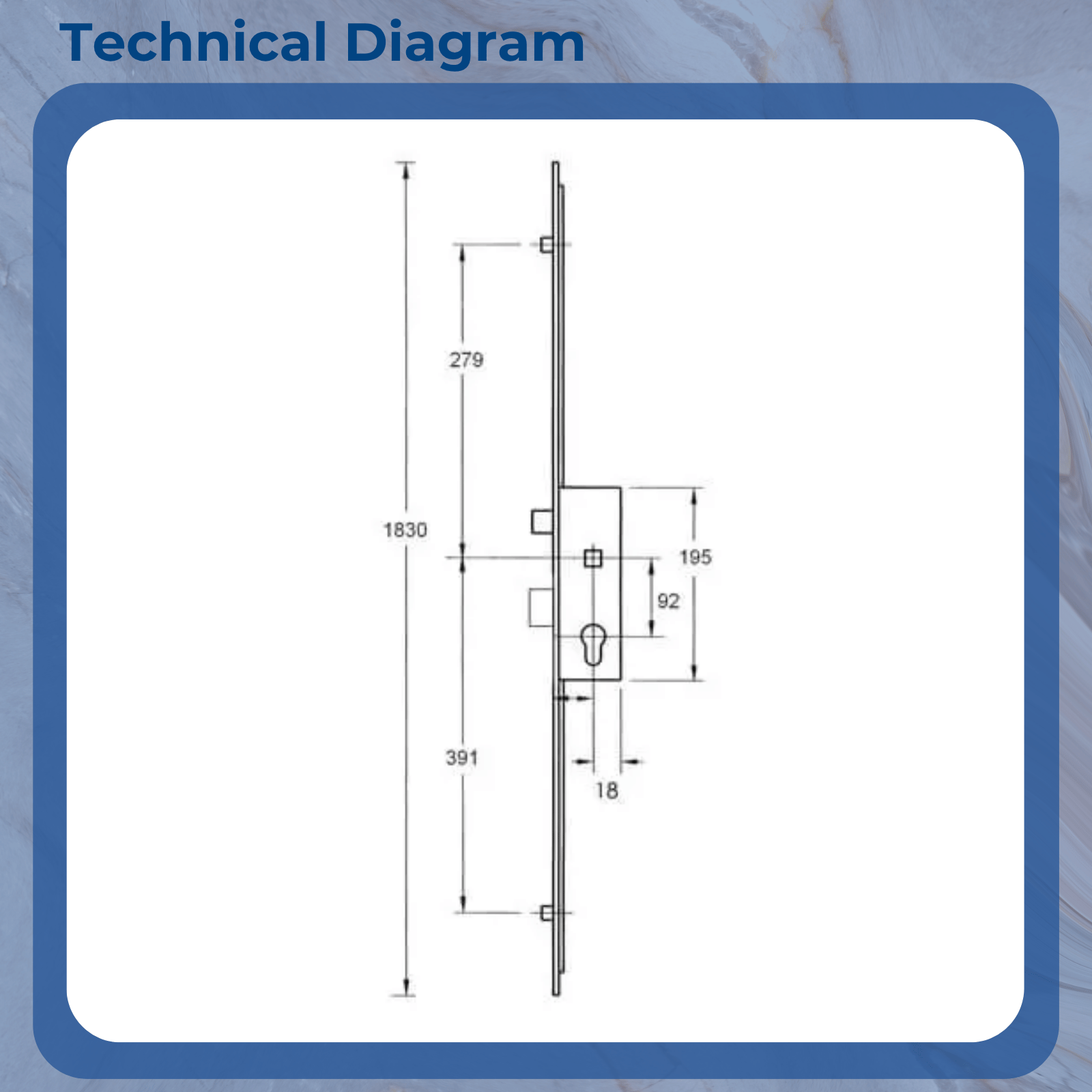

• Main Gearbox Dimensions: 191mm (H) x [Backset + 16mm] (W)
• Latch Height: 32mm
• Deadbolt Height: 35mm
• Distance Between Inner Locking Points: 670mm
• Top Roller to Spindle: 279mm
• Bottom Roller to Spindle: 391mm
• Overall Height: 1830mm
• Faceplate Type: Flat or U-Rail (select from dropdown)
• Operation: Lift Lever
• Handing: Universal (non-handed)
• Door Compatibility: uPVC, Aluminium

How to Operate

To Lock:

1. Lift the handle upwards to engage the locking points
2. Turn the key to lock the deadbolt and secure the system

To Unlock:

1. Turn the key to release the deadbolt
2. Push the handle down to retract the latch and unlock the door

Replacement Tips

• If upgrading from an older GU lock, you may need to adjust the latch and deadbolt keeps
• Older deadbolts may be thinner, so updated keeps are recommended when replacing with new-style locks
• GU deadbolts are chamfered to assist with compression and smooth locking action
